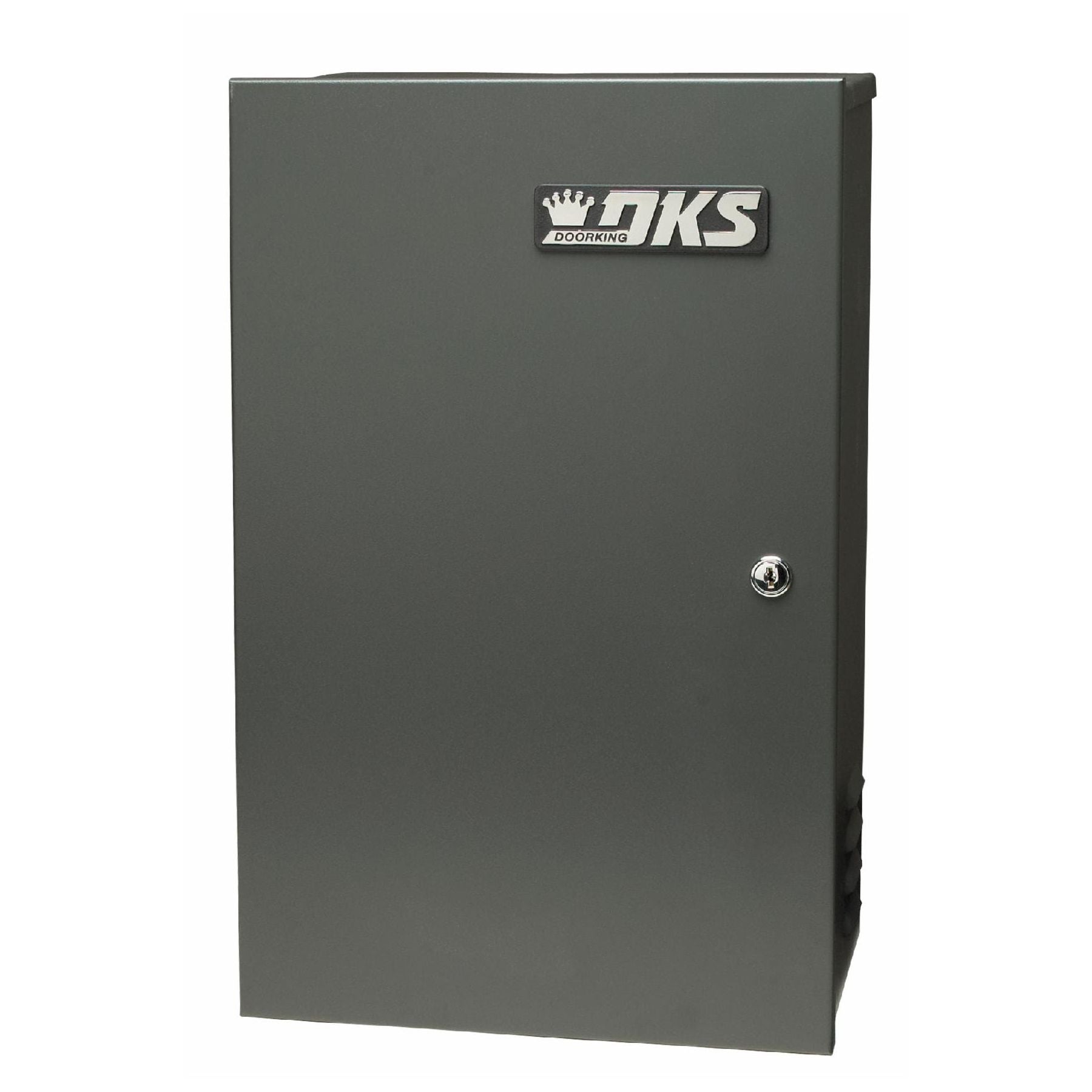

Doorking 4302-312 Deluxe Control Box (115V)

Enhanced Control and Safety Features for 6004, 6006, and 6400 Gate Openers

The Doorking 4302-312 Deluxe Control Box offers enhanced control and safety features for 6004, 6006, and 6400 gate openers. This deluxe control box provides 115 VAC input power, converted to 24 VDC output, ensuring smooth and reliable gate operation. Equipped with additional convenience outlets and integrated safety measures, this model is designed to handle larger, more complex gate installations.

This deluxe control box is built to comply with UL325 safety standards, featuring monitored input connections for both contact and non-contact sensors. The added convenience outlets and the option for battery backup ensure your gate system remains operational, even during power outages.

What’s Included:

• Qty 1: Metal Casing (Control Box)
• Qty 2: 3.5Ah Batteries (1801-009); Provides backup power in case of outages.
• Qty 1: MicroPLUS/Clik Receiver (8040-080); Ensures secure access control with MicroPLUS transmitters.
• Qty 1: Retro-Reflective Photocell (8080-057); Provides safety through entrapment prevention.
• Qty 2: MicroPLUS Transmitters (8069-080); Easy-to-use remote transmitters for gate control.

Key Features:

• 115 VAC Input Power: Reliable single-phase input, providing 24 VDC output to gate openers.
• Enhanced Safety Features: UL325-compliant, with support for monitored input connections for both contact and non-contact entrapment protection devices.
• Multiple Convenience Outlets: Three 115 VAC convenience outlets for powering auxiliary devices.
• Battery Backup Ready: Can integrate with 24 VDC batteries to provide continuous operation during power outages.
• Durable Design: Built for outdoor use with a NEMA 4X-rated enclosure for weather protection.

Technical Specifications:

• Input Power: 115 VAC, 60 Hz, Single Phase
• Output Power: 24 VDC to gate operators

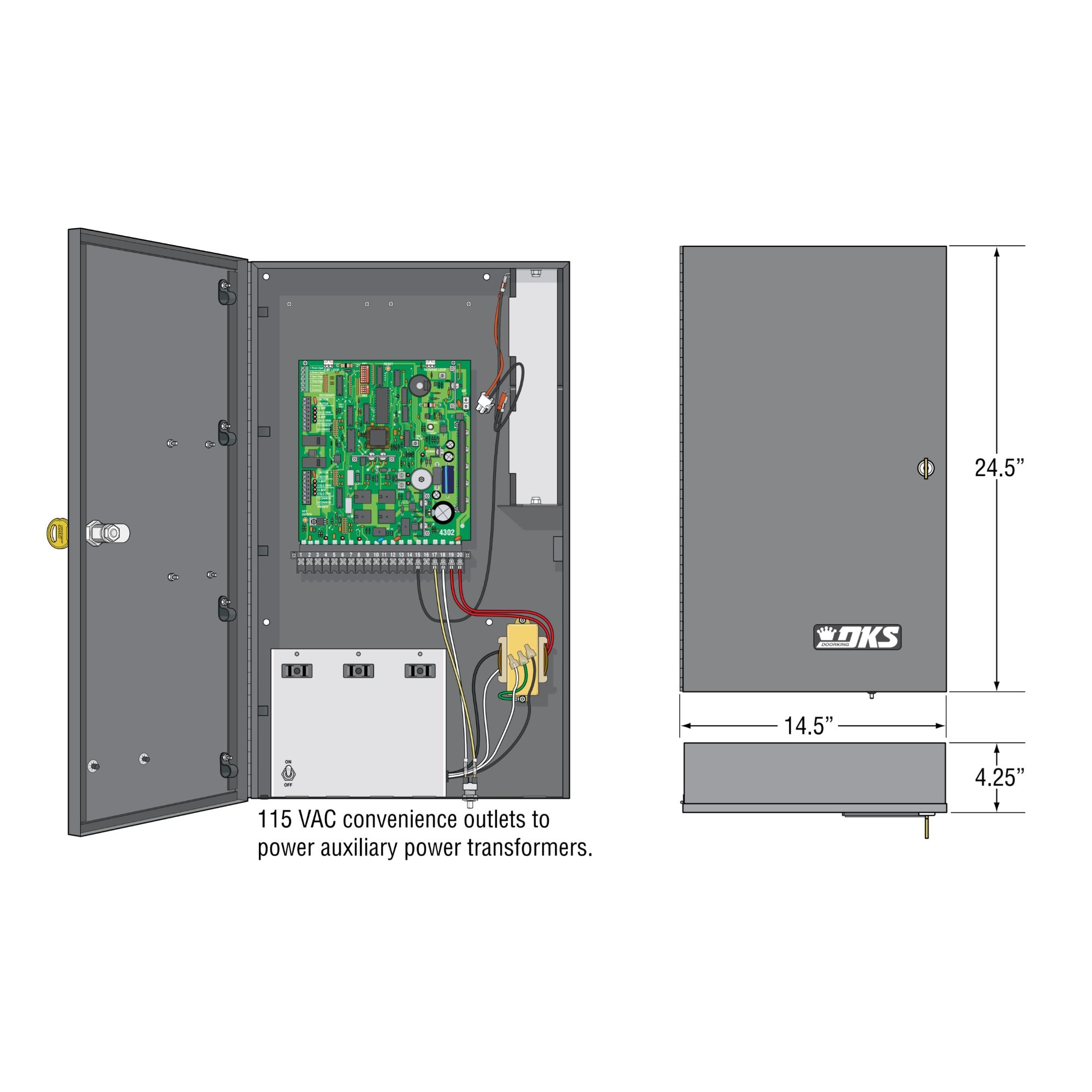

• Dimensions: 14.5” W x 24” H x 4.25” D
• UL325 Compliance: Compatible with Type B1 and B2 entrapment protection devices
• NEMA 4X Enclosure: Weather-resistant design for long-lasting durability
• Convenience Outlets: Includes three 115 VAC outlets for auxiliary devices
• Compatible Models: 6004, 6006, and 6400 gate openers

Why Choose the Doorking 4302-312 Deluxe Control Box?

The Doorking 4302-312 Deluxe Control Box offers enhanced features that make it the ideal choice for larger and more complex gate installations. With added safety protections and convenience outlets, it ensures reliable performance, especially in challenging conditions. The battery backup feature keeps your gates operational even during power outages, offering a complete solution for dependable gate operation.
