DoorKing 9050 Repair Parts
We carry repair and replacement parts for the DoorKing Model 9050-380 commercial swing gate operator. If your part is not listed below, enter the part number in the search bar at the top of the site. Can't find what you need? Contact our parts team and we'll match it to the right replacement.

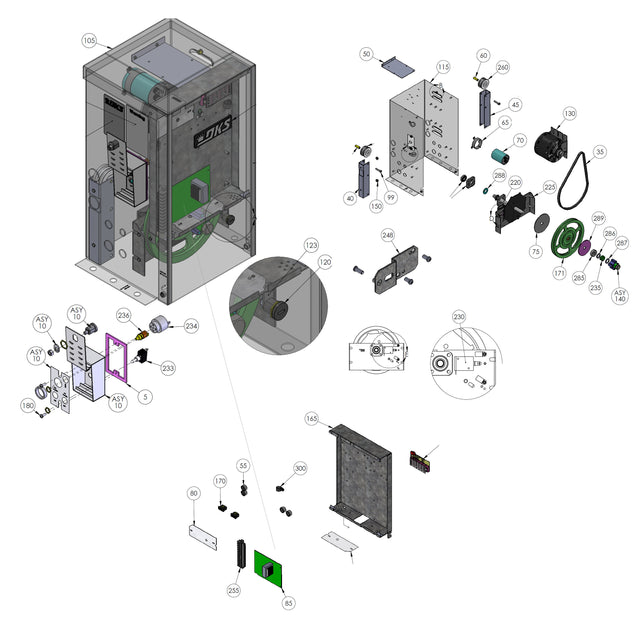

Parts list
21 items
5
Doorking 2600-731 Gasket Switch Cover
6
DoorKing 4001-093 MOV Assembly 130VAC
19
Doorking 2600-466 Bearing Assembly Rear
35
Doorking 2600-429 Replacement Motor Belt for Slide Gate Openers
60
Doorking 2600-871 Bushing for Gate Operator
70
Doorking 2600-102 Motor Capacitor - 50Uf 370Vac
85
Doorking 4702-012 Circuit Board for Models 9050 & 9070
105
Doorking 2600-933 Front Cover For Doorking 9050 And 9100
115
Doorking 2600-985 Rear Housing for 9050 & 9100 Operators
120
Doorking 4001-035 Key And Lock - No Cam
123
Doorking 1702-503 Lock Cam
130
DoorKing 2600-129 Motor Assembly – 1/2HP
140
Doorking 2600-917 Jamb Nut - Magnetic Sub-Assembly
171
DoorKing 2600-957 Pulley Aluminum Assembly (10-Inch)
220
Doorking 2600-903 Main Shaft for 9050, 9070, 9100
230
Doorking 2600-860 Solenoid Lock Assembly
233
Doorking 1601-041 Toggle Switch On/Off 2-Position
234
DoorKing 1506-071 Alarm Tone Generator for Gate Operators
235
DoorKing 2600-446 Compression Spring
236
DoorKing 1812-005 Push Call Button Switch for 1812 Systems
260
