Doorking 9150 (1 HP) Repair Parts
We carry repair and replacement parts for the DoorKing Model 9150-380 1 HP commercial swing gate operator. If your part is not listed below, enter the part number in the search bar at the top of the site. Need help finding the right component? Contact our parts team and we'll match you to the correct replacement.

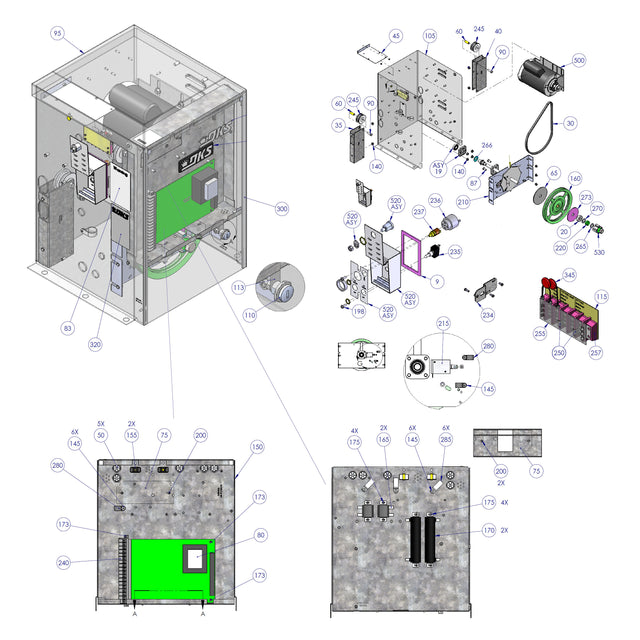

Parts list
23 items
9
Doorking 2600-731 Gasket Switch Cover
19
Doorking 2600-466 Bearing Assembly Rear
20
DoorKing 2600-053 Thrust Bearing (3/4" ID)
30
Doorking 2600-694 Drive Belt
60
Doorking 2600-871 Bushing for Gate Operator
65
Doorking 2801-004 Clutch Pad (5" Od - 3/4" Id)
70
DoorKing 9150-006 Protective Plastic Cover for 9150
80
DoorKing 4602-012 Circuit Board for Models 9100 and 9150 Slide Gate Openers
110
Doorking 4001-035 Key And Lock - No Cam
113
Doorking 1702-503 Lock Cam
160
DoorKing 2600-957 Pulley Aluminum Assembly (10-Inch)
165
DoorKing 2600-848 Power Resistor 1 Ohm 30W
170
Doorking 2600-847 Resistor Power 1 Ohm 65 Watt
205
Doorking 2600-904 Main Shaft for 9150 Slide Gate
215
Doorking 2600-860 Solenoid Lock Assembly
220
DoorKing 2600-446 Compression Spring
235
Doorking 1601-041 Toggle Switch On/Off 2-Position
236
DoorKing 1506-071 Alarm Tone Generator for Gate Operators
237
DoorKing 1812-005 Push Call Button Switch for 1812 Systems
240
Doorking 2901-002 Terminal Block for Gate Operators - 18 Pin
245
Doorking 2600-886 Idler Wheel UHMW
500
Doorking 2600-162 Replacement Motor 1hp
530
