Doorking 8080-057 Monitored Photoeye

Reliable Entrapment Protection and UL 325 Compliance for Safe Gate Operation

Ensure your gate system’s safety and compliance with the Doorking 8080-057 Retro-Reflective Photocell, an essential Type B1 non-contact sensor designed to work with all DoorKing gate operators. This photocell is a key component in meeting the stringent 2018 UL 325 safety standards, providing reliable monitored entrapment protection. With its impressive 35-foot sensing range, this device detects obstructions and ensures the gate reverses automatically, preventing injury or damage. Whether used in residential or commercial settings, this photocell ensures safe and efficient gate operation.

Key Features:

• UL 325 Compliance: Fully compliant with UL 325 standards for monitored entrapment protection, ensuring your gate system adheres to the latest safety regulations.
• 35-Foot Sensing Range: Provides extensive detection of obstructions to ensure safe gate operation.
• Type B1 Non-Contact Sensor: This photocell acts as a non-contact safety sensor to reverse gate motion when an obstruction is detected.

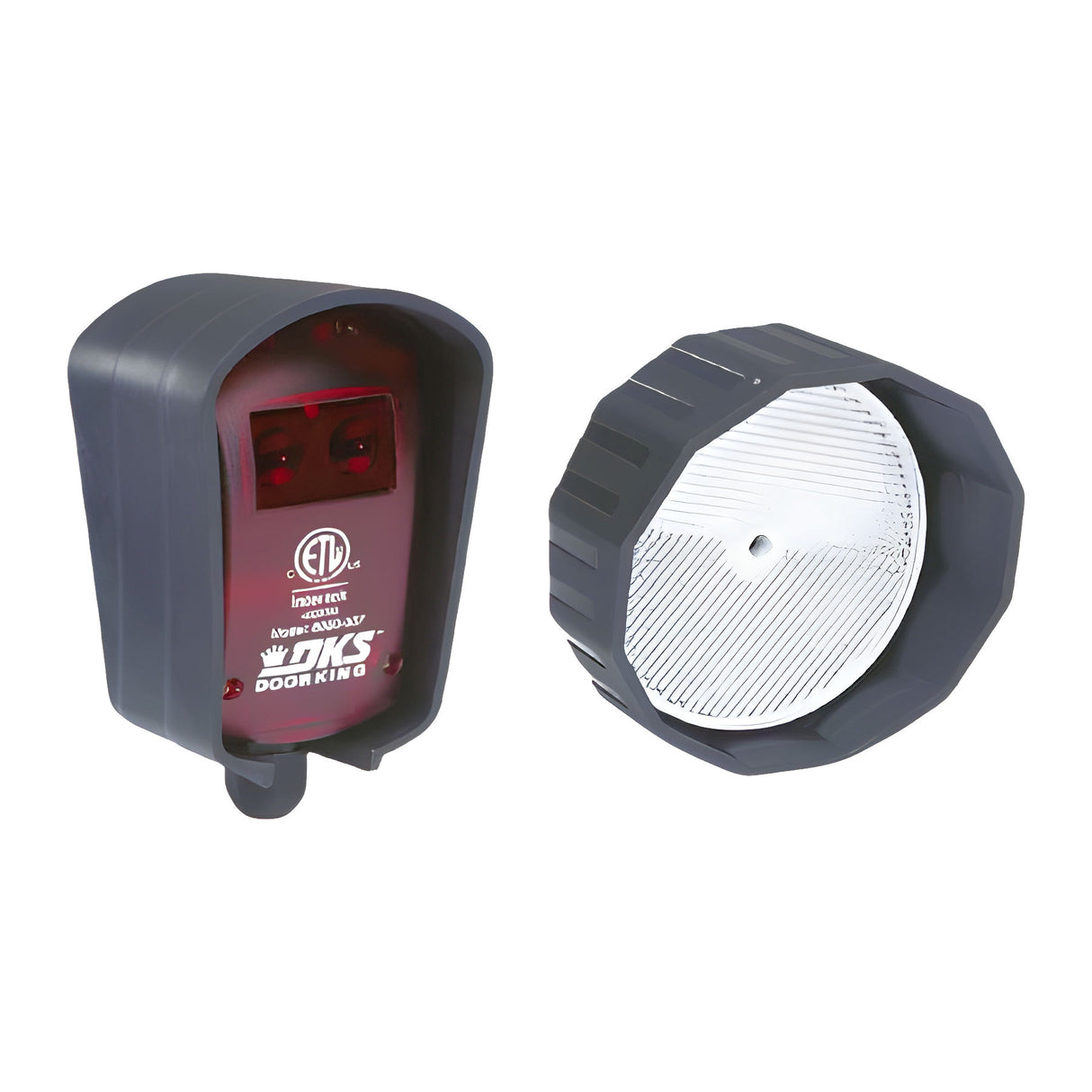

• Dual-Component Design: Features a transmitter and reflector, simplifying installation while offering reliable, accurate detection.
• Flexible Power Options: Operates on 10-25 VAC or 12-30 VDC, making it compatible with a variety of gate systems.
• Green LED Alignment Indicator: The green LED provides real-time feedback when the reflector is properly aligned, making installation quick and easy.

Technical Specifications:

• Sensing Range: 35 feet (10.6 meters)
• Power Requirements: 10-25 VAC or 12-30 VDC
• Relay Output: 1 Amp @ 24 VDC or 1 Amp @ 120 VAC maximum
• Mounting Orientation: Must be mounted vertically for weather protection and accurate sensing.
• LED Indicator: Green LED stays lit when alignment is correct.
• Compliance: UL 325 Type B-1

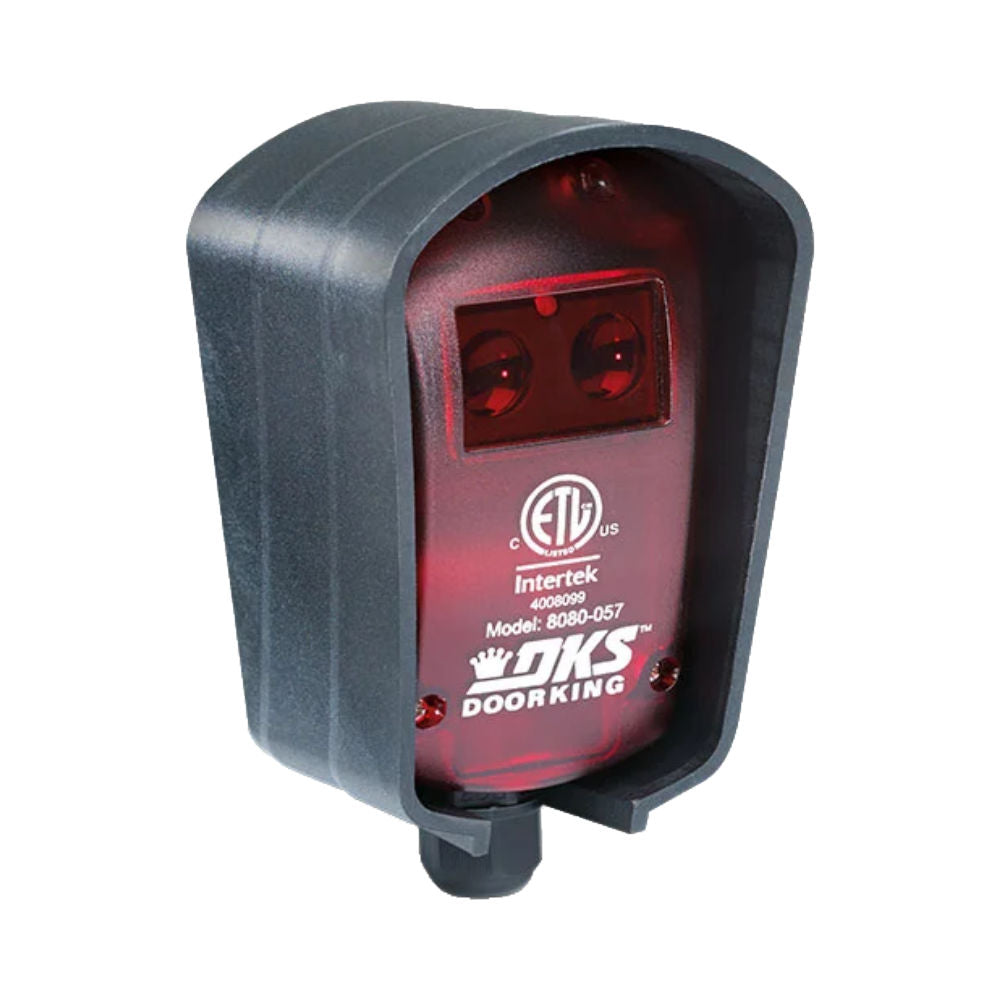

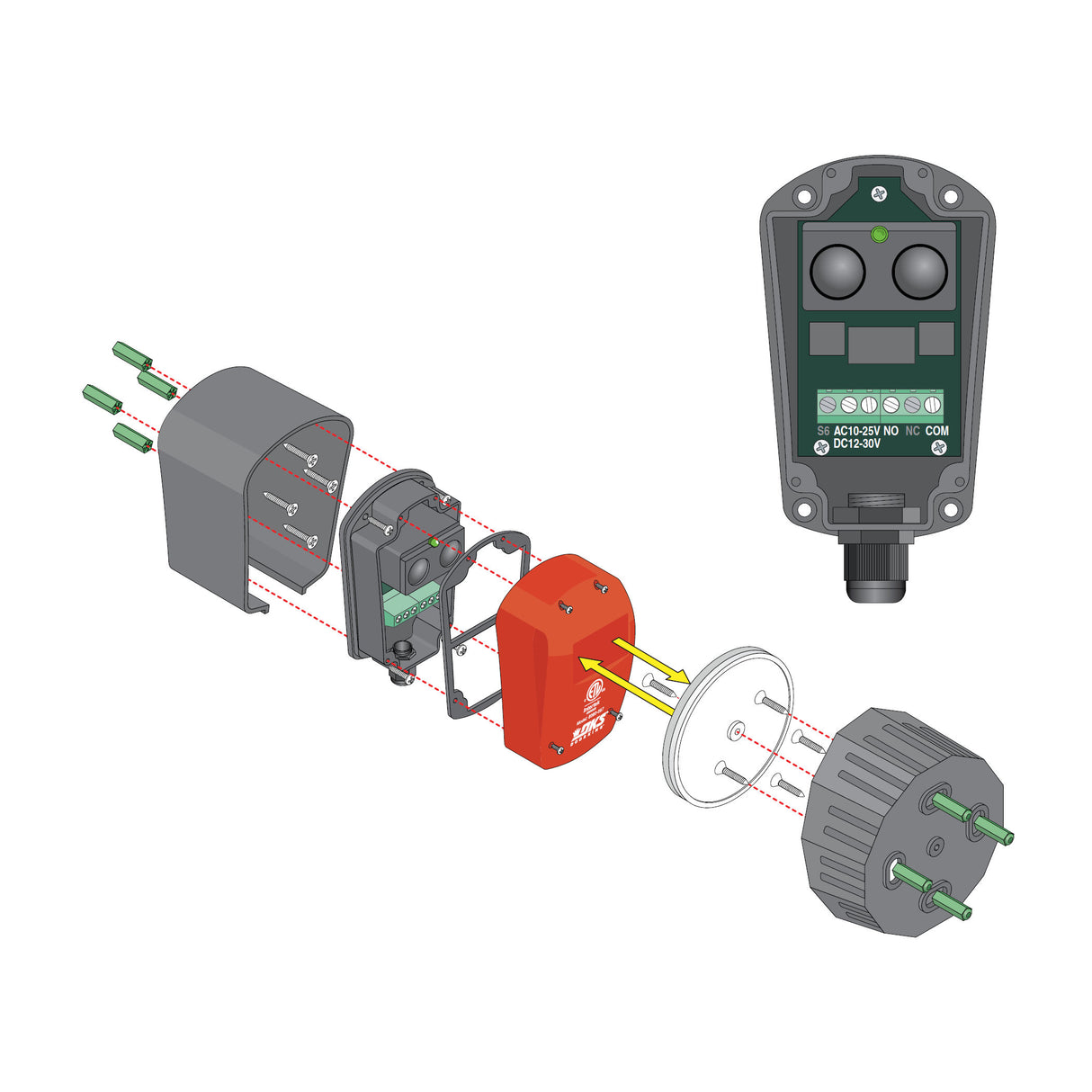

• Installation: Simple wiring only on the transmitter side, with 10K resistor included.

Frequently Asked Questions:

1. What is the purpose of the Doorking 8080-057 Photocell?
   The 8080-057 photocell ensures monitored entrapment protection in automatic gate systems. It functions as a Type B1 non-contact sensor, detecting obstructions and signaling the gate operator to reverse the gate's movement, thereby preventing injury or damage.
2. What is the maximum sensing range of the photocell?
   This device has a 35-foot sensing range, allowing it to detect obstructions over long distances, making it suitable for both residential and commercial gate setups.
3. How is the 8080-057 photocell powered?
   The photocell supports both 10-25 VAC and 12-30 VDC, making it compatible with various power sources commonly used in gate systems, offering installation flexibility.
4. Is the photocell compatible with all DoorKing gate operators?
   Yes, the Doorking 8080-057 is fully compatible with all DoorKing gate operators manufactured after 2018, ensuring proper safety measures are in place to comply with UL 325 standards.
5. What happens when the photocell detects an obstruction?
   When the photocell detects an obstruction, it signals the gate operator to automatically reverse the gate, preventing damage and injury. This feature ensures safe operation and protection for both vehicles and pedestrians.

Why Choose the Doorking 8080-057 Photocell?

The Doorking 8080-057 Retro-Reflective Photocell offers vital protection for gate systems, ensuring compliance with UL 325 safety standards. With its extensive 35-foot sensing range, easy installation, and real-time LED alignment indicator, this photocell is a crucial addition to any automatic gate system. Designed to prevent accidents and enhance gate safety, the 8080-057 provides peace of mind, whether for residential or commercial use.
