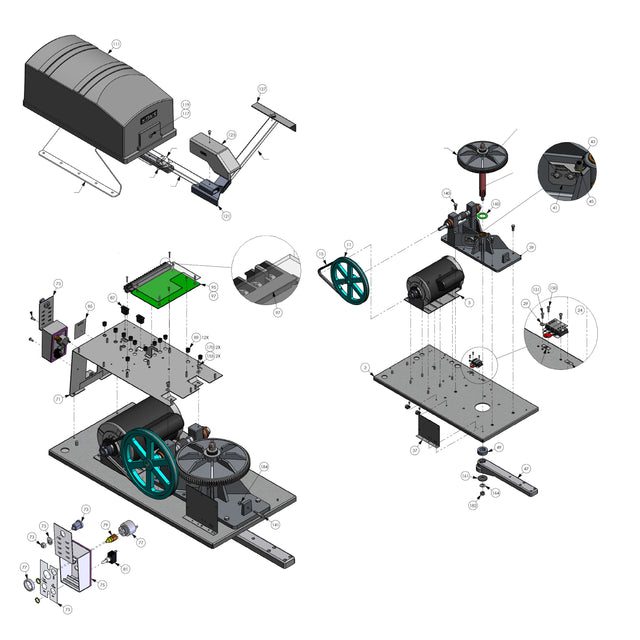

DoorKing 6300 (1 HP) Repair Parts
We carry repair and replacement parts for the DoorKing Model 6300-384 1 HP commercial slide gate operator. If your part is not listed below, enter the part number in the search bar at the top of the site. Can't find what you need? Reach out to our parts team and we'll help you locate the right component.
Parts list
28 items
5
Doorking 2600-162 Replacement Motor 1hp
11
Doorking 2600-569 Pulley 10" Cast Iron
15
Doorking 2600-428 Drive Belt for 6300 Operators
24
DoorKing 4001-093 MOV Assembly 130VAC
39
Doorking 6300-042 Cross Shaft Housing Assembly
41
Doorking 2600-613 Magnetic Counter Bracket
43
Doorking 3004-010 Magnetic Counter
47
Doorking 2600-779 Swing Crank Arm Extended
49
DoorKing 2600-061 Replacement Collar
57
Doorking 2600-174 Main Shaft Assembly for 6300 Series
63
Doorking 2600-681 Clutch Plate for 6300 Series Gate Openers
67
Doorking 2600-644 Worm Gear
75
Doorking 2600-731 Gasket Switch Cover
77
DoorKing 1506-071 Alarm Tone Generator for Gate Operators
79
DoorKing 1812-005 Push Call Button Switch for 1812 Systems
81
Doorking 1601-041 Toggle Switch On/Off 2-Position
95
Doorking 4502-012 Replacement Circuit Board
97
Doorking 4001-020 Terminal Strip 20-Pin for Control Boards
111
Doorking 2600-725 Cover For DKS 6300 Model
117
Doorking 1702-507 Cam "J" Hook for Lock
119
Doorking 4001-035 Key And Lock - No Cam
121
DoorKing 2600-720 Crank Arm Joint Assembly - 6500 Series
123
DoorKing 2600-630 Joint Cover for Swing Operators - Left
125
DoorKing 2600-631 Joint Cover for Swing Operators - Right
212
DoorKing 2600-264 Pad Mount Hardware Kit
213
Doorking 2600-767 Padlock for Swing Gates Openers
214
Doorking 2600-716 Crank Arm for Swing Arm Assemblies
215
