Doorking 8040-080 RF Receiver (Limited Time sale)

DKS 8040-080 RF Receiver Wiegand Output

Download Specs Download Manual

*Works with MicroClik & MicroPlus*

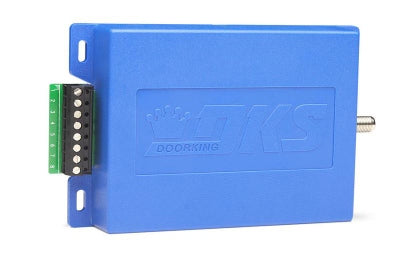

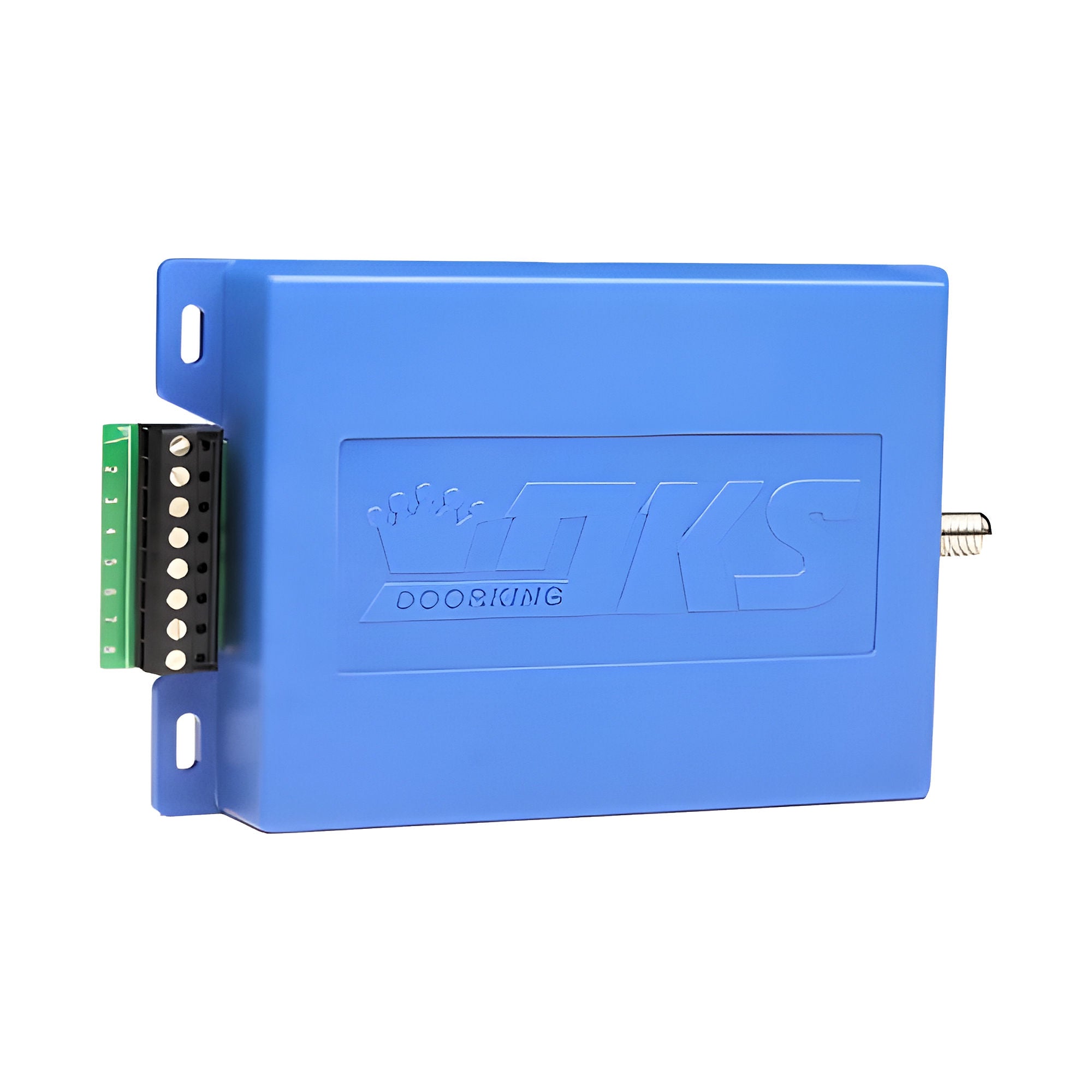

The new 8040 receiver provides for longer range operation, easier programming and has a low power draw feature that makes it an ideal accessory for solar powered applications.

• 5300 transmitter capacity
• 26, 30 or 31-bit wiegand format

Multi-purpose  RF receiver that will work with both MicroClik and MicroPlus transmitters. For stand-alone applications, a dry contact relay is provided for door or gate operator activation, or for magnetic or electric door strike release. The receiver can also be programmed for 26, 30 or 31-bit weigand output, making it compatible with most access control systems.

The 8040 programming is simplified with a selector switch built into the receiver. Installers simply select which mode they want the receiver to operate in, and then proceed with transmitter programming. Another unique feature of the 8040 allows the installer to program a Master Transmitter. The master transmitter allows the consumer to easily add additional transmitter codes to the receiver memory, without having to put the receiver into a programming mode.  In addition, the 8040 uses a superhetrodyne RF circuit which increases its receiving range.

The 8040 replaces both the model 8056 MicroPlus receiver and the 8059 MicroClik receiver.
