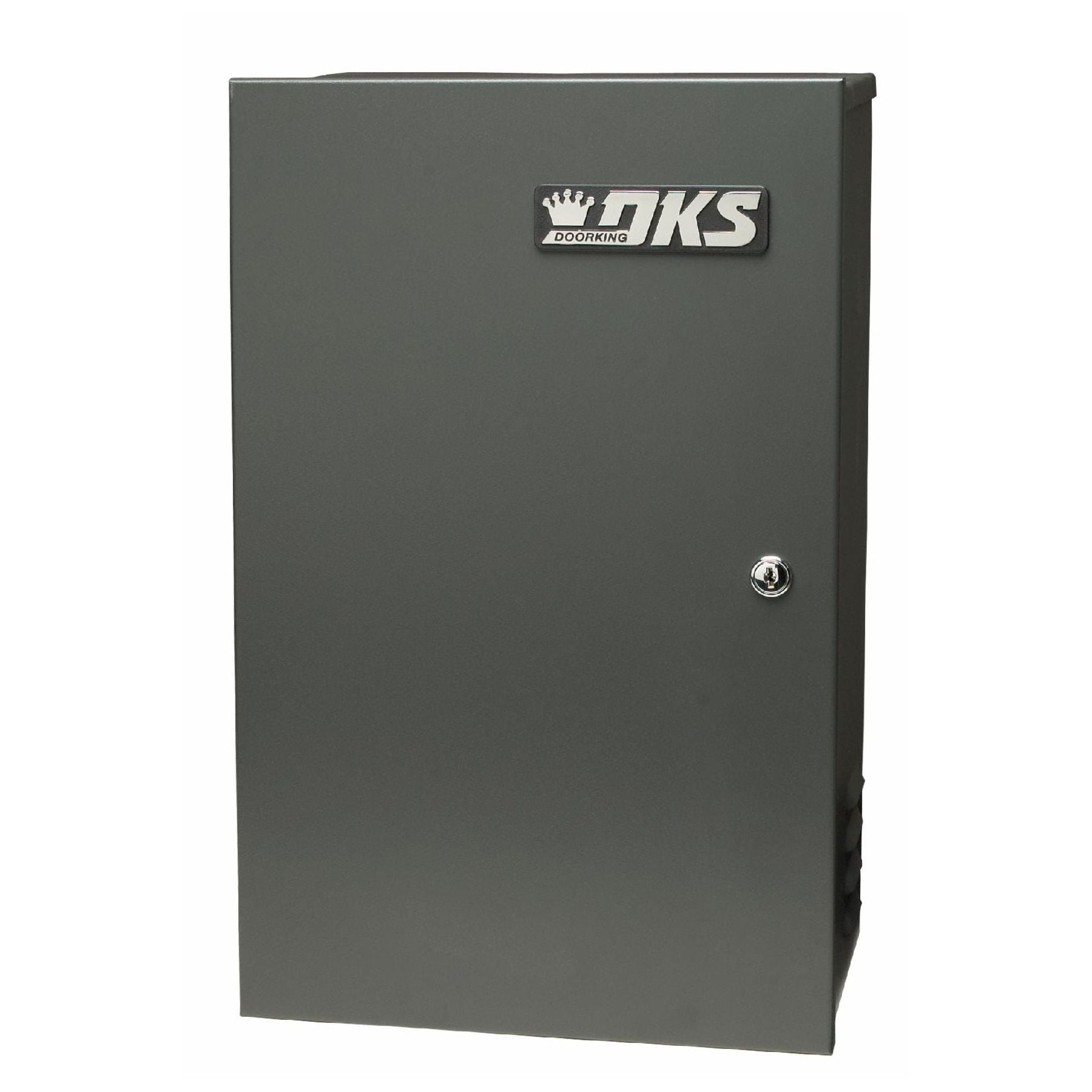

Doorking 4302-311 Standard Control Box (115V)

Reliable and Safe Control for 6004, 6006, and 6400 Gate Openers

The Doorking 4302-311 Standard Control Box is a robust, efficient, and reliable control solution for vehicular gate systems. Designed for use with 6004, 6006, and 6400 gate openers, this control box manages the conversion of 115 VAC input into 24 VDC output, delivering smooth and continuous gate operation. The control box meets UL325 safety standards, ensuring essential entrapment protection is in place.

With its built-in battery backup capabilities and three 115 VAC convenience outlets, this control box provides flexibility and dependability for residential or light commercial gate setups.

Key Features:

• 115 VAC Input Power: Converts to 24 VDC for efficient operation of gate systems.
• Battery Backup: Ensures uninterrupted gate operation during power outages.
• Three 115 VAC Convenience Outlets: For powering auxiliary devices.
• UL325 Compliance: Provides entrapment protection for enhanced safety.
• NEMA 4X-Rated Enclosure: Protects the control box from harsh environmental conditions.
• Remote Control Compatible: Includes a MicroPLUS/Clik receiver for easy gate access control.
• Easy Installation: Designed for seamless integration with 6004, 6006, and 6400 gate openers.

What’s Included:

• Qty 1: Metal Casing (Control Box)
• Qty 2: 3.5Ah Batteries (1801-009); Provides backup power in case of outages.
• Qty 1: MicroPLUS/Clik Receiver (8040-080); Ensures secure access control with MicroPLUS transmitters.
• Qty 1: Retro-Reflective Photocell (8080-057); Provides safety through entrapment prevention.
• Qty 2: MicroPLUS Transmitters (8069-080); Easy-to-use remote transmitters for gate control.

Technical Specifications:

• Input Power: 115 VAC, 60 Hz, single phase
• Output Power: 24 VDC to gate openers

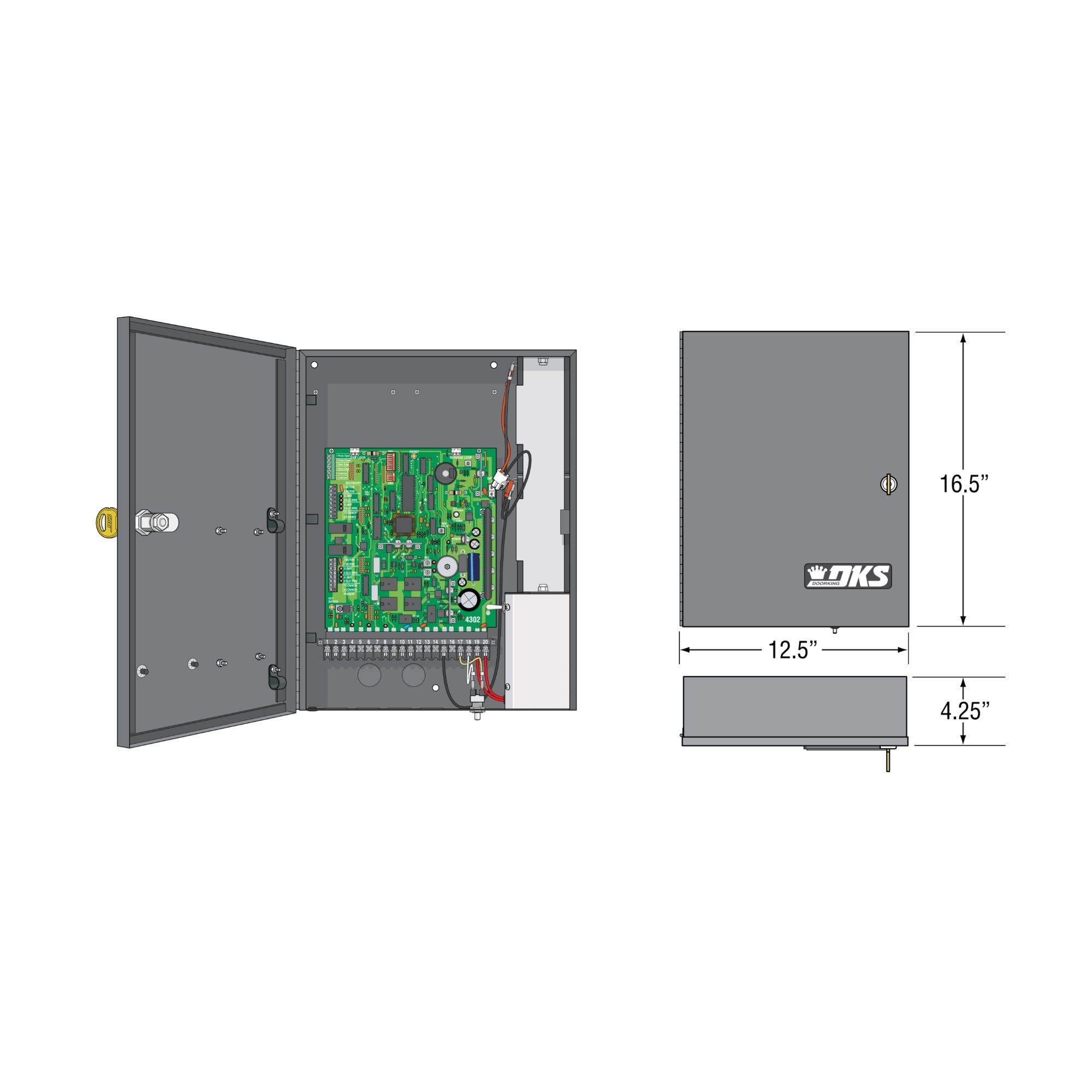

• Dimensions: 12.5” W x 16.5” H x 4.25” D
• Battery Backup: Supports 24 VDC backup power for uninterrupted operation during power outages
• UL325 Compliance: Compatible with Type B1 and B2 entrapment protection devices
• Enclosure Protection: NEMA 4X-rated for enhanced weather resistance
• Convenience Outlets: Three 115 VAC outlets for auxiliary devices
• Compatible Models: 6004, 6006, and 6400 gate openers

Why Choose the Doorking 4302-311 Standard Control Box?

The Doorking 4302-311 Standard Control Box delivers reliability, safety, and ease of use for gate operators. With its robust design, battery backup capabilities, and multiple convenience outlets, it ensures smooth and continuous operation of your gate system. Fully compliant with UL325 safety standards, this control box protects your property while offering flexibility through its remote access control and entrapment prevention features. Choose the 4302-311 for reliable gate management and enhanced safety.
