Linear DTG Safety Edge Transmitter

Linear DTG Safety Edge Transmitter

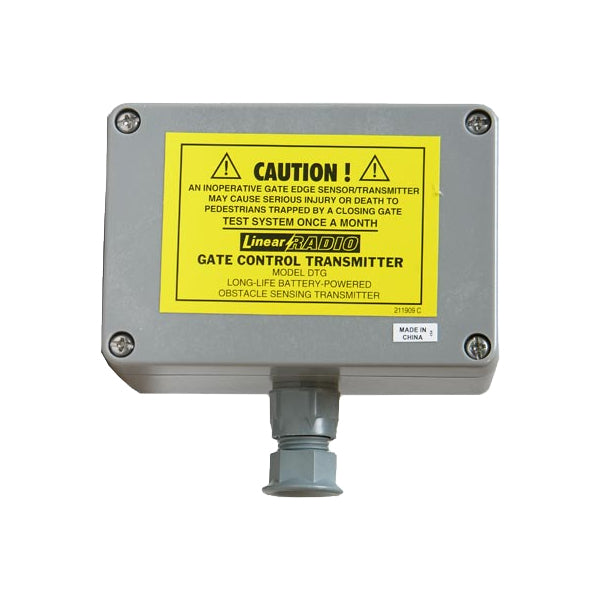

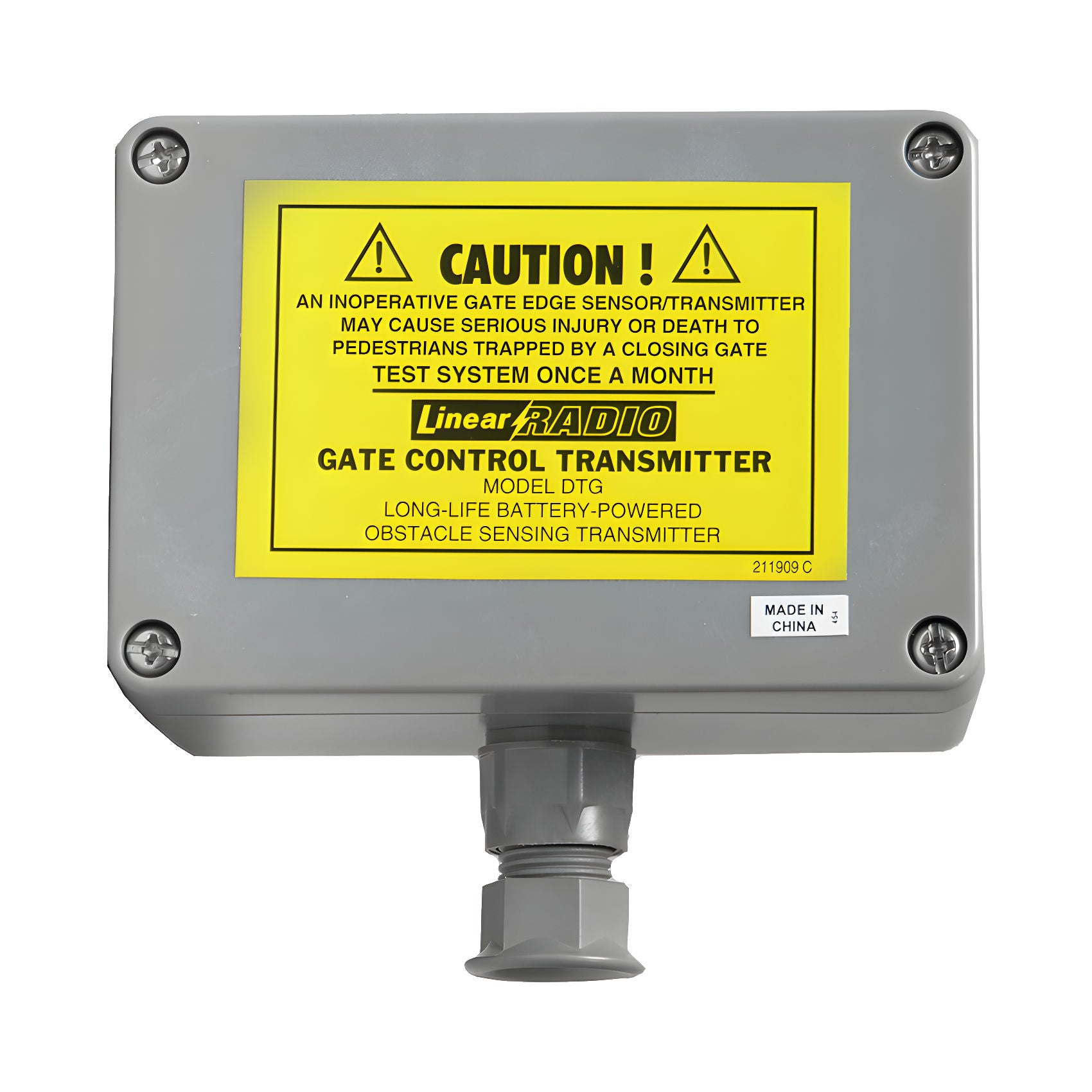

The DTG Gate Safety Edge Transmitter is a crucial component for ensuring safe operation of motorized gates, doors, and barrier arms. Part of Linear’s trusted Delta-3 series, this transmitter integrates seamlessly with compatible safety edge sensors to detect obstructions and immediately halt and reverse gate movement, preventing potential accidents. To operate effectively, the DTG requires a Delta-3 receiver, a safety edge sensor (such as Miller gate edge sensors), and a 9V battery for power.

Key Features

• Automatic Obstruction Detection: Works with an edge sensor to reverse gate motion upon impact, providing an added layer of safety for both pedestrians and vehicles.
• Weather-Resistant Design: Built with a coated circuit board housed in a fiberglass enclosure, the DTG transmitter withstands moisture and outdoor conditions, ensuring reliable operation in any environment.
• Customizable Code Settings: Eight-position switch allows for unique coding to prevent interference, ensuring secure communication with your Delta-3 system.
• Battery Powered for Easy Installation: Operates on a standard 9V battery, making it easy to install and maintain without complex wiring.

Technical Specifications

• Power Source: 9V alkaline or lithium battery (required for operation)
• Compatibility: Works with Delta-3 receivers and Miller or other compatible safety edge sensors
• Weather Resistance: Fiberglass housing and coated circuit board for moisture protection
• Dimensions: 3.88" (H) x 1.77" (W)
• Code Customization: Eight-position switch for unique configurations

Conclusions

Designed for high-traffic gates and outdoor installations, the DTG transmitter ensures safety, reliability, and easy integration with Delta-3 products. Its rugged, weather-resistant design and obstruction detection capabilities make it ideal for residential, commercial, and industrial settings where safety is a priority.
