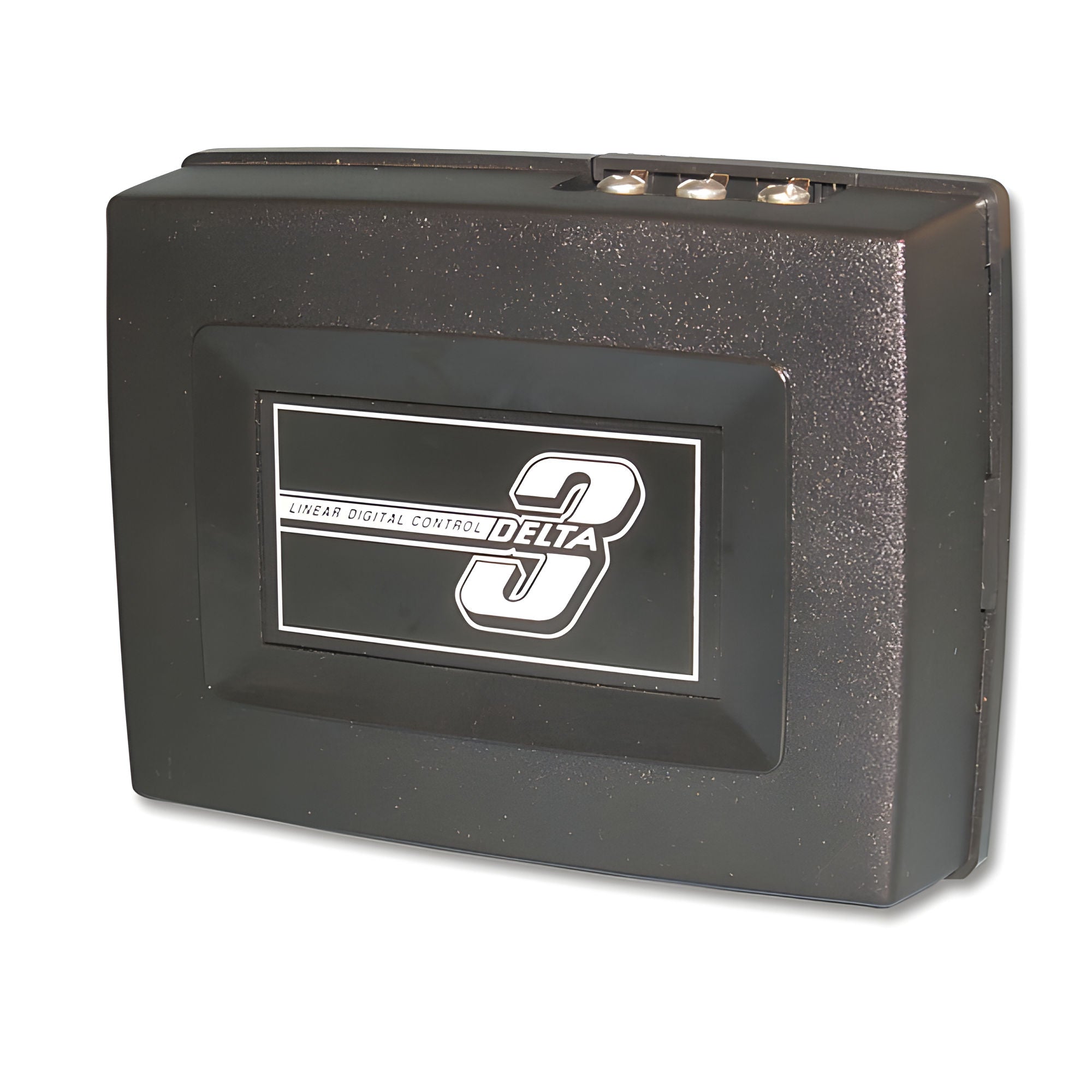

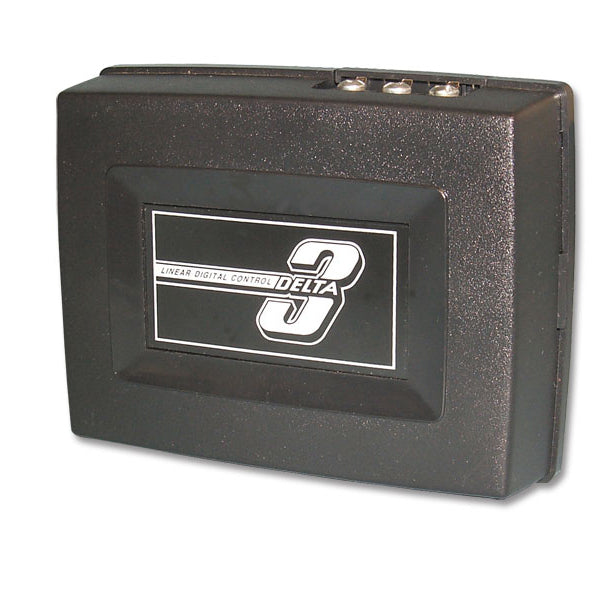

Linear DR-1 Delta-3 Receiver, 24 Volt
Linear Delta 3 Receiver 24VAC/24VDC
24-volt, single-channel, three-terminal Delta-3 receiver, 256 selectable codes. Upon receipt of a properly coded signal from a transmitter, it provides a switch operation for both NO and NC circuits. Any Delta-3 transmitter may be coded to activate this receiver, and any number of transmitters may be used to operate this receiver. In addition, the DRA may be programmed to respond to one of 256 digital codes.
Features
- Activates one device
- Wire lead antenna
- Mounting bracket supplied
- Power: 24 VAC/VDC
- Codes: 256 (set by dip switches)
- RF frequency: 310 MHz
- Dimensions: 5.5″ W x 4″ H x 1.25″ D
- Also known as Linear DNR00001, DR-1, DR1 or DR3A
