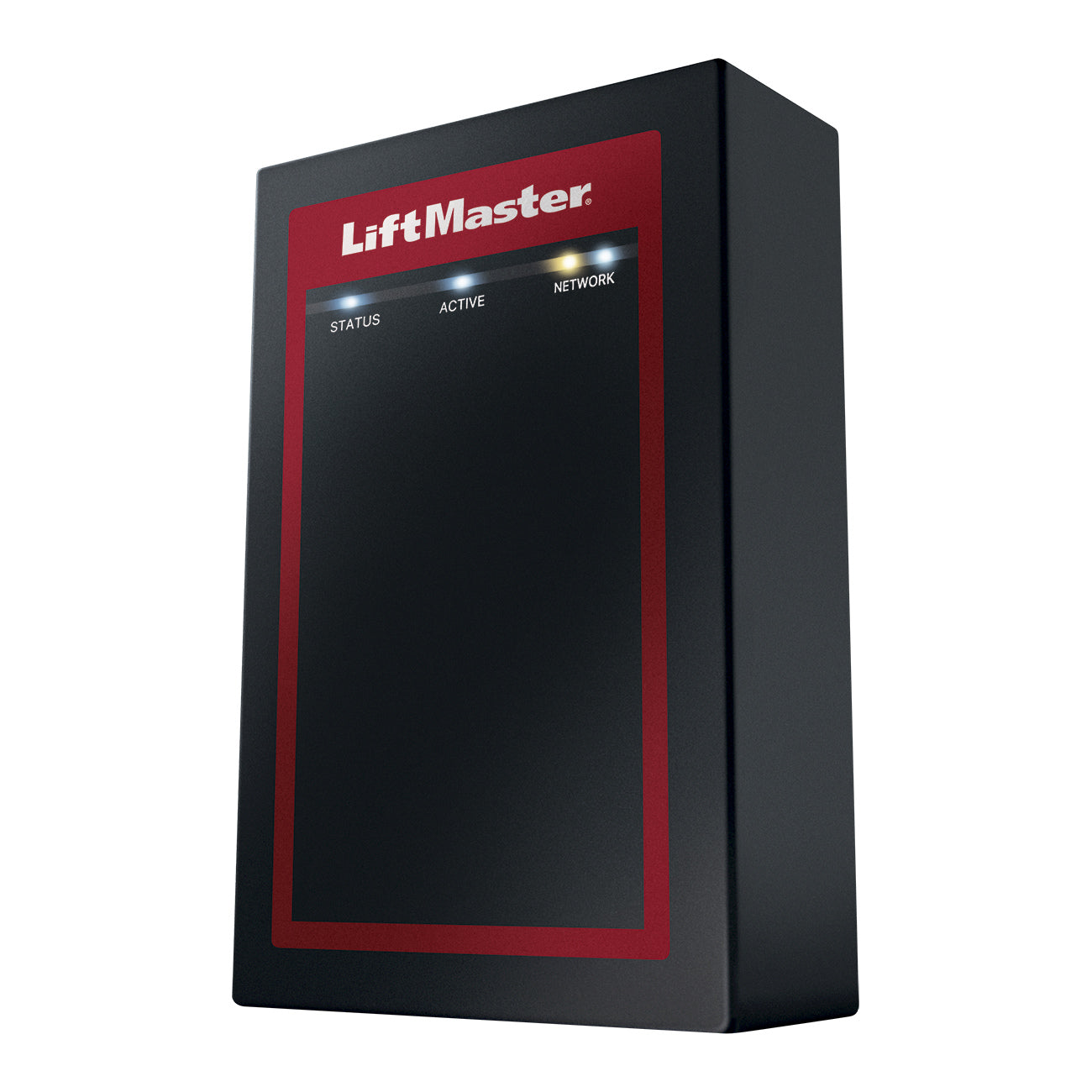

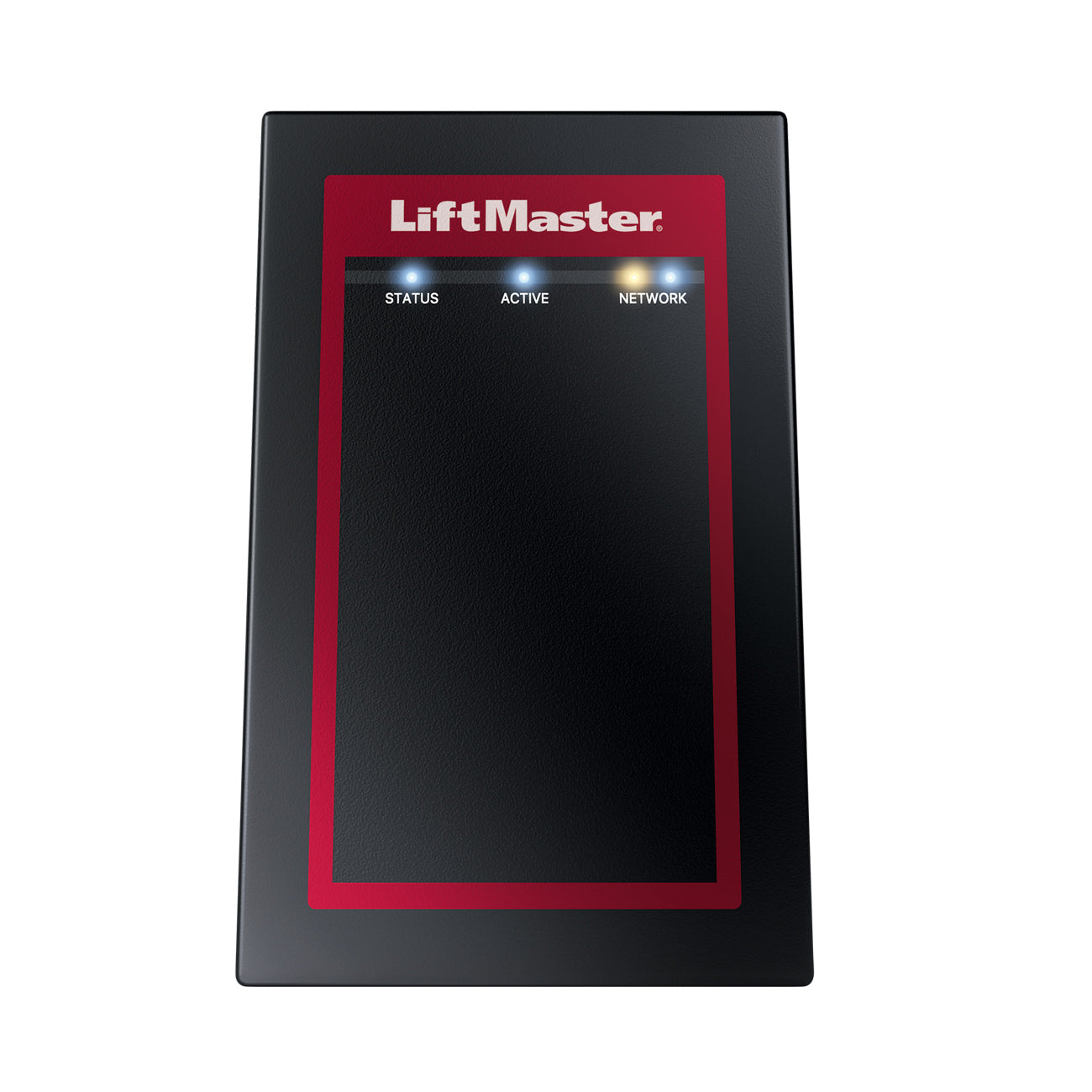

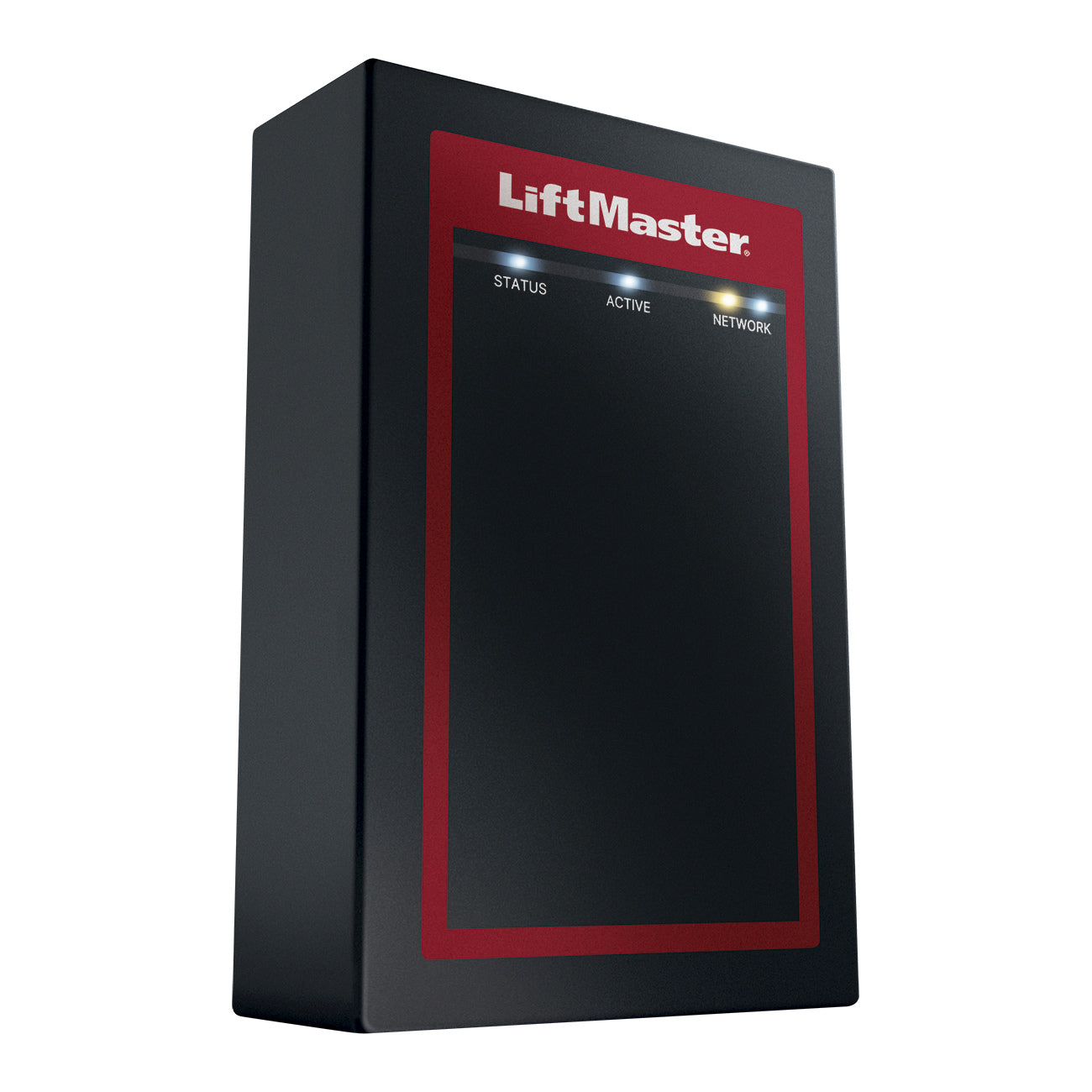

Liftmaster CAP2D Smart Access 2-Door Controller

Liftmaster CAP2D Smart Access 2-Door Controller
Liftmaster CAP2D Smart Access 2-Door Controller
Liftmaster CAP2D Smart Access 2-Door Controller

Liftmaster CAP2D Smart Access 2-Door Controller

Regular price
Sale price
Your Price: $2,399.88
Quantity must be 1 or more

Liftmaster CAP2D Smart Access 2-Door Controller

Download Specs Download Manual

Smart Access 2-Door Controller cloud-based credentialed access control.

Key Features

  • myQ® Community Smart Access Control Software
  • Controls up to 2 Gates/Doors Each
  • Easily Expandable Network through myQ Community Web Platform.

Smart Device

  • Multiple-Entrance Control with myQ Community Web Platform.
  • Eliminate Wiring between controllers in multiple-entrance applications with myQ Community Web Platform.
  • Universal Compatibility with 26-, and 30- and 37-bit Wiegand-compatible readers, receivers and RFID readers.
  • Expansive Capacity for 25,000 active credentials stored locally so residents can enter even when the internet is down.
  • Remote Programming and activity monitoring using myQ Community Web Platform.


  • Easy to Install in new or existing properties.
  • Backed-Up Storage in myQ Community Web Platform ensures that databases are never lost.
  • Power over Ethernet (PoE) allows for flexibility of device placement.


  • Email Alerts let you know when a suspended code is used or if an active code is being overused.
  • Real-Time Activity Tracking with myQ Community Web Platform.
  • Cloud-Based Security keeps data protected and safeguards resident information.
  • Total Solution Accessories:
  • CAPXLV Smart Video Intercom -L cloud-based access control for residents and guests in large-sized communities.
  • CAPXM Smart Video Intercom -M cloud-based credentialed access control for visitors and guests in mid-sized communities.
  • CAPCELL Cellular 4G/LTE Modem with Wi-Fi® makes it easy to connect CAPXL and CAP2D(s) anywhere (Not recommended for applications with video features).
  • PPWR Passport Receiver compatible with all standard Wiegand Protocols.
  • PPV3M/PPK3PHM/PPLK1-X Passport Remote Controls Visor and keychain remotes with unique credentialed IDs.
  • KPR2000 Wired /Keypad and Proximity Reader single-entry, multifunction controller that supports up to 2,000 users.
  • LMMC-MINI /multiCLASS® SE RP10 MINI Mullion proximity reader for credentialed access.
  • LMPC2-ST Proxcard II® 1326 /Clamshell Card proximity card for credentialed access.


  • 2 controlled gates / doors
  • 25,000 local resident capacity
  • 6,000 local event history (FIFO) offline from host
  • Multiple, Holiday and Hold-Open Scheduling, including one-time and repeating exceptions


  • 2V DC, Min. 1.5 Amps (transformer not included)
  • PoE (802.3af) enabled network devices, 13 Watts max.
  • UL® listed


  • 4.5" x 3" x 1.25"


  • Compact size mounts on standard single electrical-gang box or in a NEMA enclosure
  • Led indicator lights communicate status
  • Temperature Range: 31°F to 150°F (-35°C to 66°C)


  • Internet (Dynamic or Static IP)
  • myQ Community subscription required
  • High speed
  • DSL with at least 1 MB download speed
  • Cellular (optional CAPCELL)

Input Ports

  • 2 Wiegand inputs
  • 2 Request-to-exit (REX) inputs
  • 2 Supervised inputs

Output Ports

  • 2 Primary relays
  • 2 Auxiliary relays
