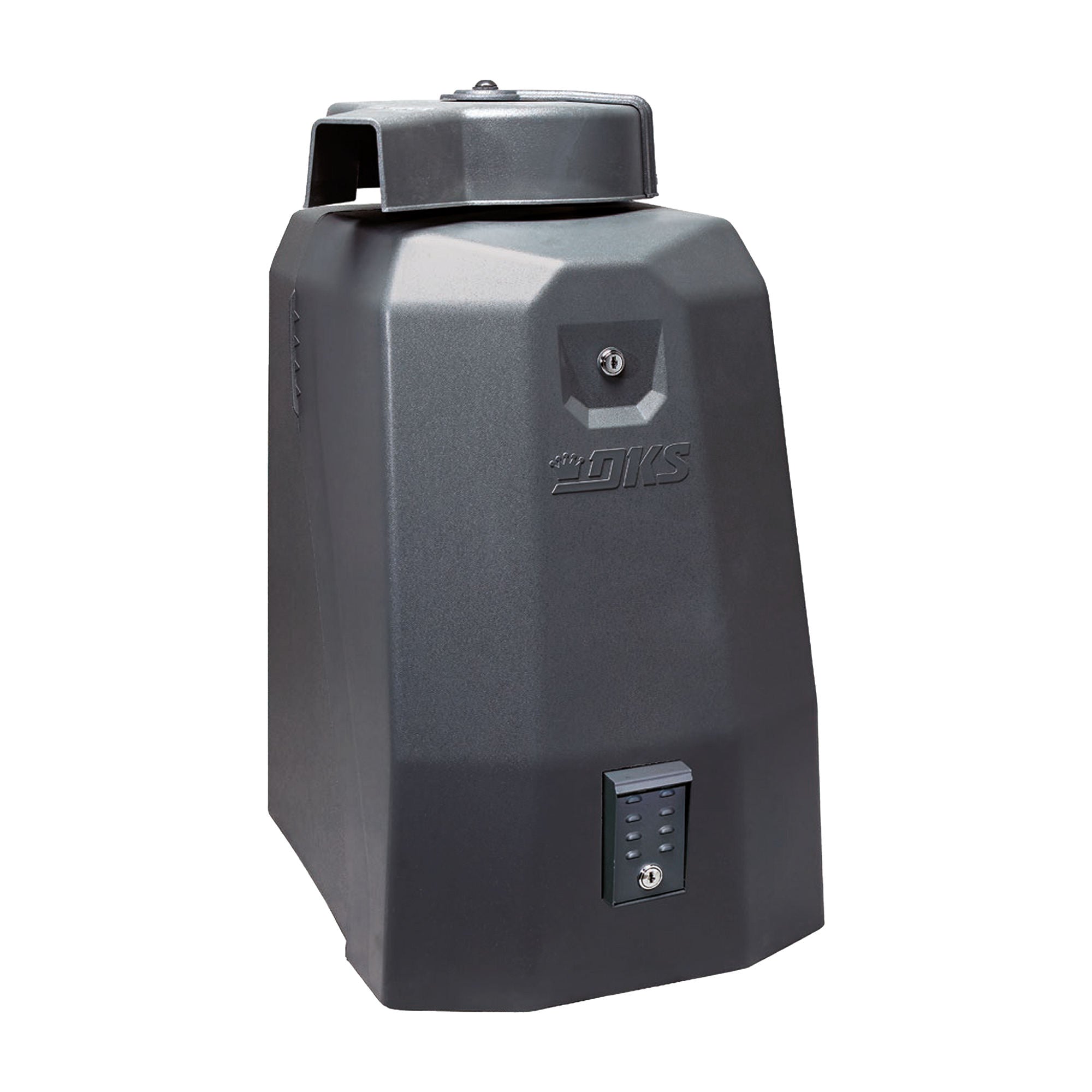

Doorking 6524-380 Swing Gate Opener with Battery Backup

AC-Powered Swing Gate Operator with Backup and System Integration

The Doorking 6524-380 is a premium AC-powered swing gate operator engineered for high-security perimeter protection. Powered by a 1/2 HP Quadra Drive DC motor and selectable 115/230 VAC input, it includes built-in battery backup and offers superior control, safety, and integration. The Gate Tracker™ output provides real-time communication to DKS access control systems, ensuring centralized security visibility. Designed for smooth, low-maintenance operation, it supports commercial and industrial gates up to 800 lbs and 16 ft.

Key Features

• Dual-voltage input: 115/230 VAC switch-selectable
• Includes two 12V 7.2 Ah SLA batteries (DKS Part #: 1801-003)
• Supports optional 18 Ah batteries for extended backup (DKS Part #: 1801-004)
• Gate Tracker™ output for system integration with 1833, 1835, 1837, or 1838 via Tracker Board 2358
• Split housing allows internal access without removing the arm
• Magnetic limit switches eliminate mechanical failure points
• Slow-start/slow-stop motion enhances gate longevity and reduces impact
• UL 325 compliant — operator will not function without at least one monitored photo eye or reversing edge installed (Type B1/B2, sold separately)
• Compatible with a wide range of monitored safety devices including Doorking 8080-057, EMX IRB-MON, and Miller Edge models

Technical Specifications

• Model: 6524-380
• Motor: 1/2 HP Quadra Drive DC
• Power Input: 115 VAC @ 1.8 A or 230 VAC @ 0.9 A
• Max Gate Length: 16 ft (4.87 m)
• Max Gate Weight: 800 lbs (363 kg)
• Opening Speed: 12–14 seconds (90° arc)
• Battery Backup (Included): Approx. 40 cycles (2× 7.2 Ah)
• Battery Backup (Optional): Up to 150 cycles (2× 18 Ah)
• Operating Temperature: 10°F to 115°F (-12°C to 46°C)
• Communication Output: Gate Tracker™
• Entrapment Protection: Monitored B1/B2 devices required (sold separately)
• UL Class: I, II, III, IV

Conclusion

The Doorking 6524-380 is built for environments where secure, compliant, and continuous gate operation is essential. With battery backup included, optional extended runtime, and Gate Tracker™ monitoring capability, it supports modern access control needs without compromising on safety. Note: This operator requires a monitored photoeye or edge sensor for operation—sold separately. Ideal for mission-critical gates in commercial, multi-tenant, and high-security facilities.
