Doorking 6006 Dual Swing Gate Opener (110v)

Synchronize Your Dual Gates with Reliable and Efficient Automation Package

The Doorking 6006 Dual Swing Gate Opener (110V) offers reliable, synchronized automation for dual swing gates, making it ideal for both residential and light commercial applications. This powerful system supports gates up to 1600 lbs and 18 feet. per gate leaf, ensuring smooth and efficient performance. Powered by a 115 VAC control box and featuring a built-in battery backup, it guarantees continuous operation, even during power outages.

With 2 actuator arms included, the Doorking 6006 ensures synchronized gate movement, opening and closing both gates simultaneously. Installation is simple with direct gate and post mounting, eliminating the need for concrete pads. The connecting cable required for synchronization is sold separately, giving you flexibility when purchasing the components you need.

Engineered with screw-driven technology and a 24V DC motor, this gate opener provides long-lasting durability and low-maintenance operation. The no-contact magnetic limit switches ensure precise control over gate movement, while the system meets UL 325 safety standards, offering peace of mind for homeowners and businesses alike.

Key Features:

• Synchronized Dual Gate Operation: Both gates open and close simultaneously for seamless dual gate automation.
• Gate Capacity: Supports dual swing gates up to 1600 lbs (8 feet), 800 lbs (16 feet), or 600 lbs (18 feet) per gate leaf.
• Power Supply: Operates on 115 VAC with 24 VDC output to the actuators, ensuring reliable performance.
• Battery Backup: Built-in 3.5 Ah batteries provide uninterrupted operation during power outages.
• Magnetic Limit Switches: No-contact magnetic switches for precise gate control, minimizing wear and tear.
• Fast Operation: 90-degree gate opening in 18-20 seconds for quick and efficient access.
• Easy Installation: Direct gate and post mounting removes the need for concrete pads, simplifying installation.
• Manual Release: Keyed manual release allows for manual operation during emergencies or power loss.
• Connecting Cable: Required for synchronizing the gates and sold separately for flexible setup options.

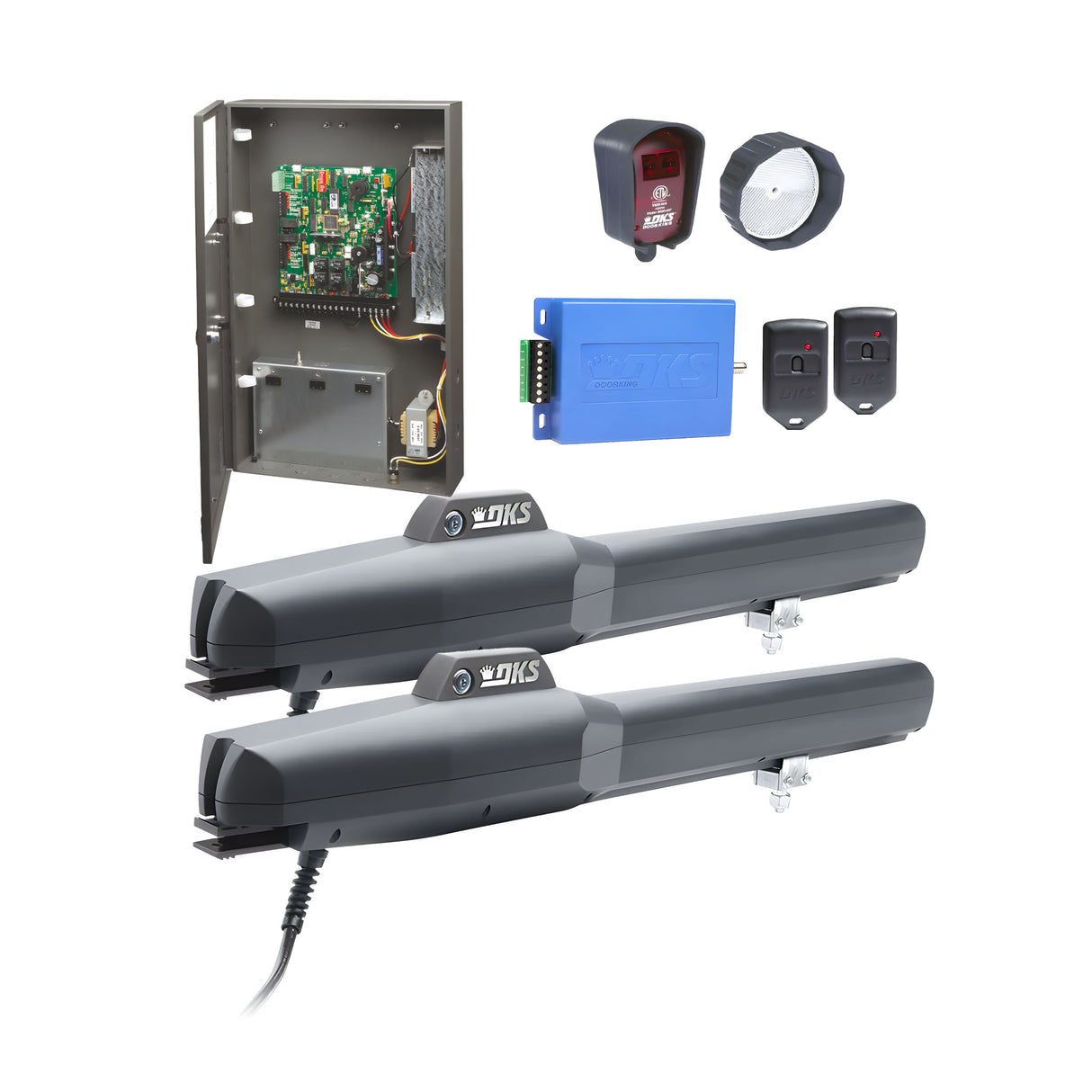

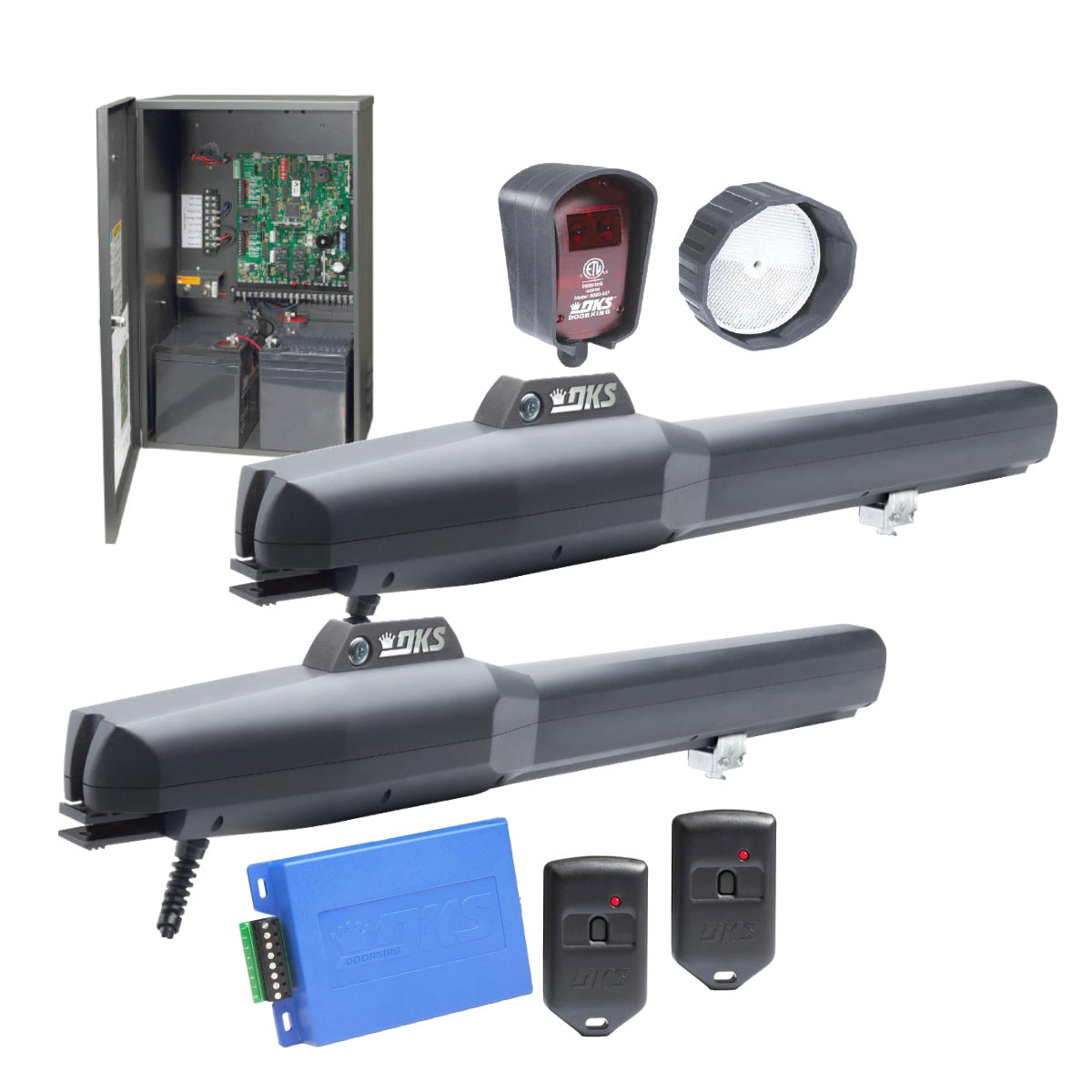

Included Accessories:

• 2 Actuator Arms: One for each gate leaf, ensuring synchronized dual gate automation.
• Control Panel: Standard control box to manage and power the system.
• 1 x 8040-080 Doorking Receiver: Low power draw receiver compatible with MicroPlus and MicroClik transmitters.
• 2 x 8069-080 MicroPlus 1-Button Transmitters: Remote control for convenient gate operation.
• 1 x 8080-057 Photo Eye: Photo-reflective entrapment protection device with a 40 ft. sensing range for enhanced safety.
• Battery Backup: Equipped with two 3.5 Ah batteries that support up to 100 cycles during power outages.

Technical Specifications:

• Power Supply: 115 VAC input, 24 VDC output.
• Gate Speed: 90-degree opening in 18-20 seconds.
• Control Box Dimensions: Standard: 12.5” W x 16.5” H x 4.25” D
• Actuator Dimensions: 40" L x 6.25" H x 4" D.

Why Choose the Doorking 6006 Dual Swing Gate Opener?

The Doorking 6006 Dual Swing Gate Opener (110V) offers superior dual gate automation with precise synchronization, durability, and safety. Its screw-driven system, coupled with battery backup and magnetic limit switches, ensures dependable operation in all conditions. The dual actuator arms allow both gates to operate in perfect sync, providing smooth and efficient gate movement. With a simple installation process and optional solar power setup, the Doorking 6006 is an ideal choice for homeowners and businesses looking to automate their gates with confidence and reliability.
