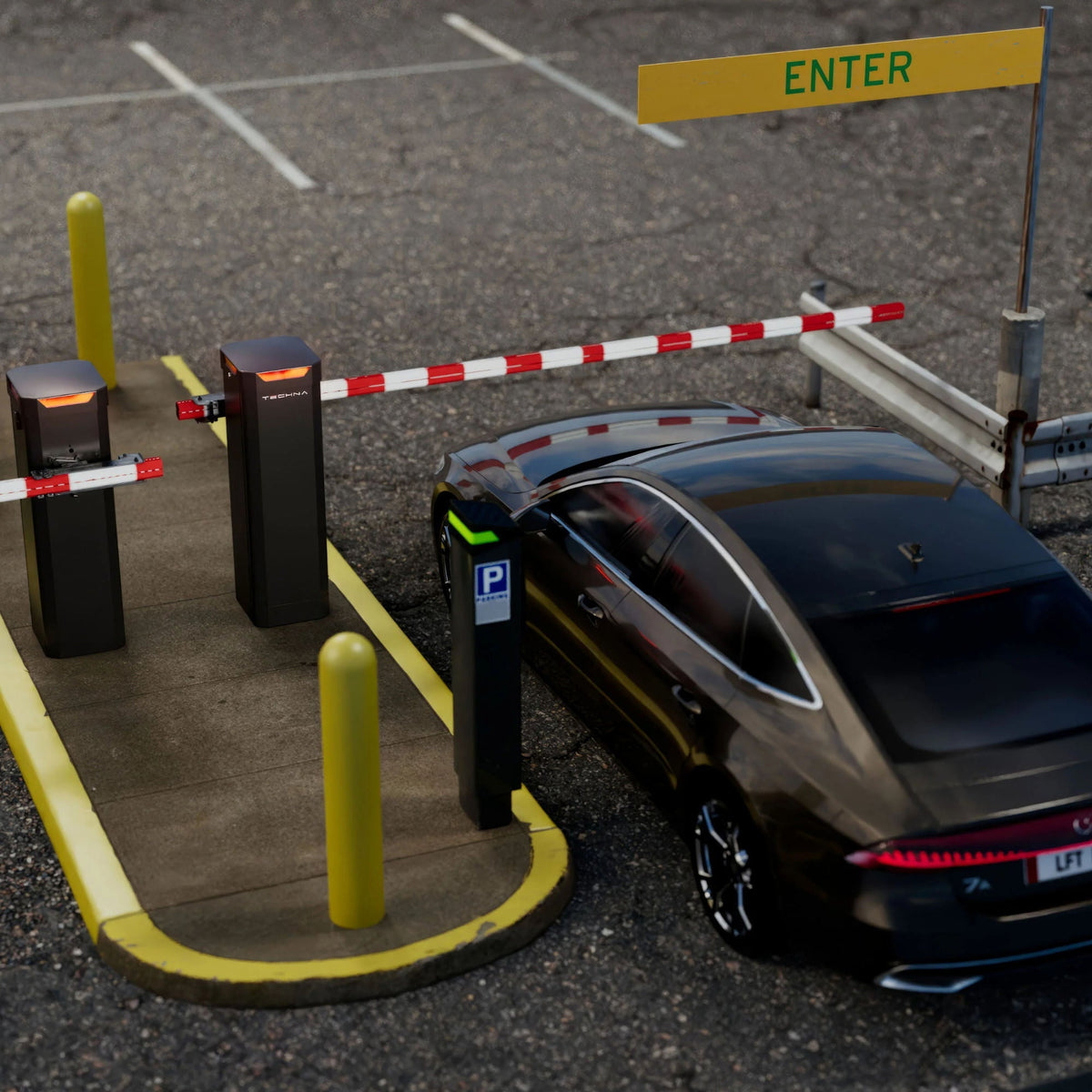

Before a barrier gate can manage traffic, its base, arm, power, and controls need to work together. Installing a LiftMaster Techna follows a straightforward sequence, with a few adjustments that depend on the arm and how vehicles will use the entrance.
Here’s what happens at each stage and why it matters.
1. Prepare the base and wiring
The installation starts with a reinforced concrete pad. This supports the cabinet and keeps it securely anchored as the arm opens and closes.
Before pouring concrete, the installer plans where the cabinet will sit and how wiring will reach it. Conduits enter from below, with power and control wiring routed separately.
The location must leave room for the arm’s full movement and access to the cabinet for servicing. Nearby walls, overhead obstructions, and pedestrian routes all affect placement.
If this is a replacement, the existing pad may be usable. The installer first checks its condition, anchor pattern, and wiring routes against the Techna’s requirements.
2. Mount the cabinet and balance the arm
With the cabinet anchored, the installer sets the arm to extend left or right. That direction is determined while facing the cabinet opening.
Inside the cabinet, counterbalance springs help support the arm’s weight. Their setup depends on the arm’s length and attached accessories, so it must match the finished assembly.
The arm bracket is then secured using the mounting arrangement selected for the installation.
One small detail matters here: a magnet on the arm must line up with a sensor inside the bracket. If it doesn’t, the operator won’t allow the arm to move. This applies even to a fixed arm.
Any bracket or lighting cables are secured clear of moving parts before setup continues.
3. Connect power and access controls
The standard Techna installation uses a 120V or 240V AC supply. The operator ships configured for 120V, so the installer must check that its configuration matches the incoming power.
Two included 12V batteries connect together to provide backup power for the 24V system.
Next come the devices that control the entrance. A keypad or entry system can request opening. A vehicle detector reports a vehicle in its detection area. Safety devices provide their intended protection during operation.
These devices connect to different inputs because they perform different jobs. The installer checks each connection before testing them together.
4. Set where the arm stops and when it closes
Once the hardware is ready, the installer uses the built-in display to enter the arm length and direction, then set its open and closed stopping positions. These positions are called travel limits.
Speed and force are adjusted for smooth, reliable movement. Extra force should never be used to overcome binding or an incorrect spring setup.
The closing sequence is configured here, too. An entrance may use a timed delay or a vehicle-detection sequence that initiates closing after a vehicle clears the interrupt loop.
The important question is: what should happen after a driver is granted access? The settings and detection layout need to support that sequence.
5. Test the complete entrance
The final check covers more than whether the arm goes up and down.
The installer confirms the stopping positions, performs the manufacturer’s obstruction tests, and checks the external safety devices. Access controls and vehicle detectors are then tested together to verify the opening and closing sequence.
Before handover, the cabinet is secured and the supplied warning signs are installed on both sides. The property manager should understand normal operation, what happens during a power outage, and the maintenance the system needs.
Planning an installation? Have your lane dimensions, available power, and preferred entry method ready for your installer. For model selection, see our LiftMaster Techna series breakdown.
