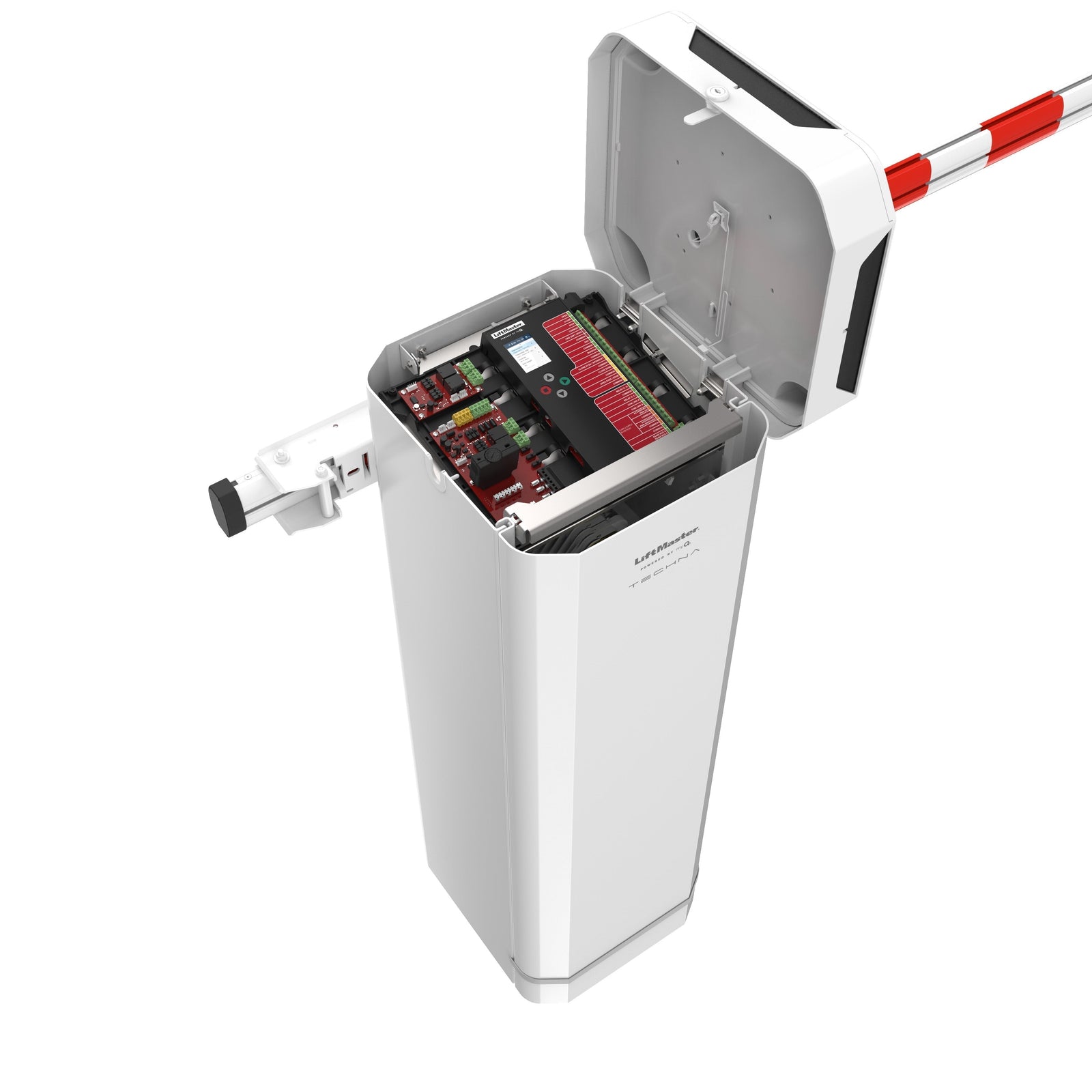

LiftMaster TECHNA Barrier Gate Series: Full Breakdown

The LiftMaster TECHNA barrier gate series has quickly established itself as one of the most complete barrier gate platforms on the market. Rather than offering a single operator and asking installers to adapt it to every site, LiftMaster built TECHNA as a family of DC brushless barrier gate operators that share one modular architecture across three distinct categories: commercial, parking, and industrial. With built-in myQ connectivity, true battery backup, and a shared control board across the entire lineup, the series covers six models in total. This guide breaks down what every TECHNA operator has in common, then walks through each model, its specs, and where it fits in the field.

Platform Overview: What All TECHNA Operators Share

The biggest advantage of the TECHNA platform is consistency. Whether you are quoting a community entrance, a parking structure, or a distribution center, the core hardware, wiring logic, and accessories stay the same. That consistency simplifies ordering, installation, training, and long-term service. Every TECHNA operator includes:

• 24VDC brushless motor with direct-drive system and oil bath gearbox, rated for continuous duty
• 120V/230V AC single-phase input standard, with an optional 3PHCONV kit that converts 208/230/460/575VAC three-phase input to 120VAC
• Standard battery backup with two 12V 7Ah batteries included, upgradeable to two 12V 33Ah batteries for extended runtime
• 10-gauge aluminum housing with powder-coat finish for corrosion resistance
• TECHNA control board with five programmable relays, monitored safety device support, and a standard plug-in loop rack
• Color LCD display with 4-button interface for onboard programming, diagnostics, and event logging, with a local log of 50 events and unlimited logging when connected to myQ
• Built-in Security+ 2.0 3-channel radio receiver supporting up to 64 remote controls standard, expandable to unlimited with 811LMX and 813LMX accessories
• Integrated Wi-Fi and Cat 5/6 Ethernet connectivity, plus 900MHz wireless pairing with other TECHNA operators and LiftMaster access control systems
• Solar capability and a 24VDC, 1A accessory power output
• Operating temperature range of -4°F to 140°F standard, extendable to -40°F with the optional HTR heater kit

All TECHNA operators are UL Certified to UL 325 and UL 991 for Class I, II, III, and IV operation and are fire department compliant. The modular arms ship in segments for easier transport, storage, and field assembly, and they are tested to over 1 million cycles, with the parking arms rated to 5 million.

CBG24DC: Commercial Barrier Gate Operator

The CBG24DC is built for residential communities, commercial properties, and distribution facilities that need reliable 24/7 access control with tailgate prevention. It supports arm lengths of 10, 12, and 14 feet and opens or closes in approximately 2.5 seconds. The arm bracket supports swing-away, break-away, and permanent mounting configurations, which helps minimize damage in the event of an arm strike.

Key specs:

• Max arm length: 14 ft (BGARM10, BGARM12, BGARM14, with LED versions available)
• Open/close time: 2.5 seconds
• Gearbox reduction: 303.5:1 direct drive
• myQ compatibility: myQ Community and myQ Facility
• Available in white (CBG24DCW) or dark grey (CBG24DCG)

What sets the CBG apart is multi-vehicle tracking on the TECHNA control board. The operator counts multiple credentials and closes the gate immediately behind each vehicle, delivering frictionless, tailgate-resistant access. For gated communities and commercial properties where unauthorized follow-through traffic is the top concern, this is the model to reach for.

PBG24DC: Parking Barrier Gate Operator

The PBG24DC is purpose-built for high-cycle parking environments where speed, revenue management, and tight-space installation are critical. It supports arm lengths up to 12 feet and achieves open and close times under 1.9 seconds regardless of arm length, making it the fastest operator in the TECHNA lineup. An audible pedestrian alarm comes standard, and the compact arm bracket with articulating arm support makes it a natural fit for low-ceiling garages and confined entry lanes.

Key specs:

• Max arm length: 12 ft, straight (PBGARM10, PBGARM12, with LED versions) or articulating (BGARM10ART84, BGARM10ART98, BGARM12ART84, BGARM12ART98) in 84-inch and 98-inch clearance heights
• Open/close time: under 1.9 seconds
• Audible pedestrian alarm: standard
• myQ compatibility: myQ Community and myQ Facility Parking
• Available in white (PBG24DCW) or dark grey (PBG24DCG)

The PBG is the only TECHNA model that integrates with myQ Facility Parking, a dedicated platform for revenue-generating parking operations. Through it, facility managers get occupancy tracking, asset utilization analytics, vend, vehicle, and loop counts, scheduled gate holds, real-time barrier strike notifications, and configurable loop status alerts. If the site collects parking revenue or needs traffic analytics, the PBG is the clear choice.

IBG24DC: Industrial Barrier Gate Operator





The IBG24DC is the heavy-duty member of the TECHNA family, engineered for wide-access lanes where a single operator needs to span up to 24 feet. An internal adjustable counterbalance spring system handles the extended arm weight without external counterweights or additional hardware. A magnetic contact sensor detects arm strikes, logs them locally, and pushes a notification through myQ when connected.

Key specs:

• Max arm length: 24 ft (IBGARM18 for 18 ft functional, IBGARM24 for 24 ft functional and field-cuttable)
• Open/close time: 6 seconds, adjustable through the menu interface
• Arm wind rating: up to 60 mph
• Pennant arm bracket orientation required, with fixed mounting only (break-away is not available on the IBG)
• myQ compatibility: myQ Facility and myQ Enterprise
• Available in white (IBG24DCW) or dark grey (IBG24DCG)

The IBG is the go-to choice for loading docks, distribution centers, and wide industrial driveways. Any lane that would otherwise require two operators facing each other can often be covered by a single IBG, which cuts equipment, wiring, and maintenance in half.

Model Comparison at a Glance

Which TECHNA Operator Is Right for Your Site?

The decision usually comes down to three questions. How wide is the lane? How many cycles per day will the operator see? And does the site need parking analytics? If the answer is a standard lane with tailgating concerns, the CBG24DC fits. If it is a high-cycle parking structure, especially one generating revenue, the PBG24DC is built for exactly that. And if a single arm needs to cover a wide industrial lane, the IBG24DC handles spans no other model in the lineup can reach.

Because every model shares the same control board, wiring logic, accessories, and myQ ecosystem, mixed deployments are simple. A property can run a CBG at the main entrance, PBGs in the parking structure, and an IBG at the loading dock, all managed under one connected platform with shared spare parts.
