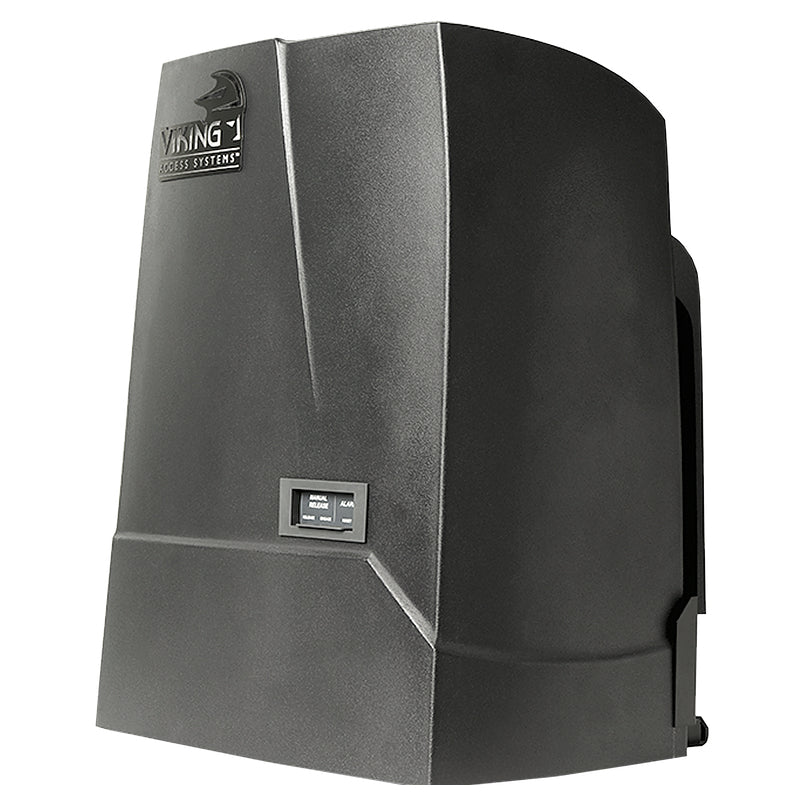

Viking L3 Automatic Slide Gate Opener (SPS Model)

Advanced Slide Gate Opener with Smart Positioning for Residential and Commercial Use

The Viking VA-L3SPS Automatic Slide Gate Opener is engineered for residential and commercial use, capable of handling gates up to 60 feet in length and 1600 pounds in weight. Built with advanced technology, including the Smart Positioning System (SPS), the Viking L-3 ensures precise gate positioning during power outages and manual operation. This operator is perfect for high-traffic locations, offering 100% duty cycle performance and a battery backup that provides up to 100 full cycles in the event of power loss.

The Viking L-3 is designed to endure harsh environments, with a built-in heater that allows operation in temperatures as low as -20°F, and multi-layer corrosion protection with G90 galvanized steel, zinc plating, and UV-rated powder coating. Additionally, the unit’s lightning protection guards against surges up to 20,000 volts, making it a highly reliable choice for storm-prone regions.

Key Features:

• Gate Capacity: Supports gates up to 60 feet long and 1600 lbs.
• 2 Monitored Photoeyes Required: This system requires 2 monitored photoeyes for proper activation and compliance with safety standards, ensuring safe and secure gate operation.
• Smart Positioning System (SPS): Maintains gate position even during power failures or manual operation.
• Battery Backup: Provides up to 100 full cycles during power outages.
• Weather-Resistant: Built to perform in temperatures from -20°F to 160°F.
• Lightning Protection: Shields against power surges up to 20,000 volts.
• Fast Operation: Moves gates at an adjustable speed for efficient and secure gate movement.
• Corrosion-Resistant: Constructed with G90 galvanized steel, zinc plating, and UV-rated powder coating for long-lasting durability.
• LCD Diagnostics Display: Simplifies troubleshooting and maintenance.
• Safety Compliance: Meets ANSI/CAN/UL325 safety standards.

Technical Specifications:

• Gate Length: Supports gates up to 60 feet (18.3 meters)
• Gate Weight Capacity: Up to 1600 lbs (726 kg)
• Operating Speed: Adjustable speed
• Power Source: 120/240 VAC single-phase input
• Battery Backup: Provides up to 100 full cycles during power outages
• Duty Cycle: 100% continuous operation
• Temperature Range: Operates between -20°F to 160°F (-29°C to 71°C)
• Lightning Protection: Protects against surges up to 20,000 volts and 10,000 amps
• Corrosion Resistance: G90 galvanized steel, zinc plating, UV-rated powder coating
• Certifications: ANSI/CAN/UL325 compliant

Why Choose the Viking L-3 Slide Gate Opener?

The Viking Access L-3 Slide Gate Operator offers exceptional durability, advanced safety features, and reliable performance for both residential and commercial gates. With its Smart Positioning System (SPS), weather-resistant design, and battery backup, the L-3 is designed to provide continuous, safe operation in any environment.
