Viking Access E-4 Swing Gate Operator Kit

Single Swing Gate Operator Kit for Residential Properties

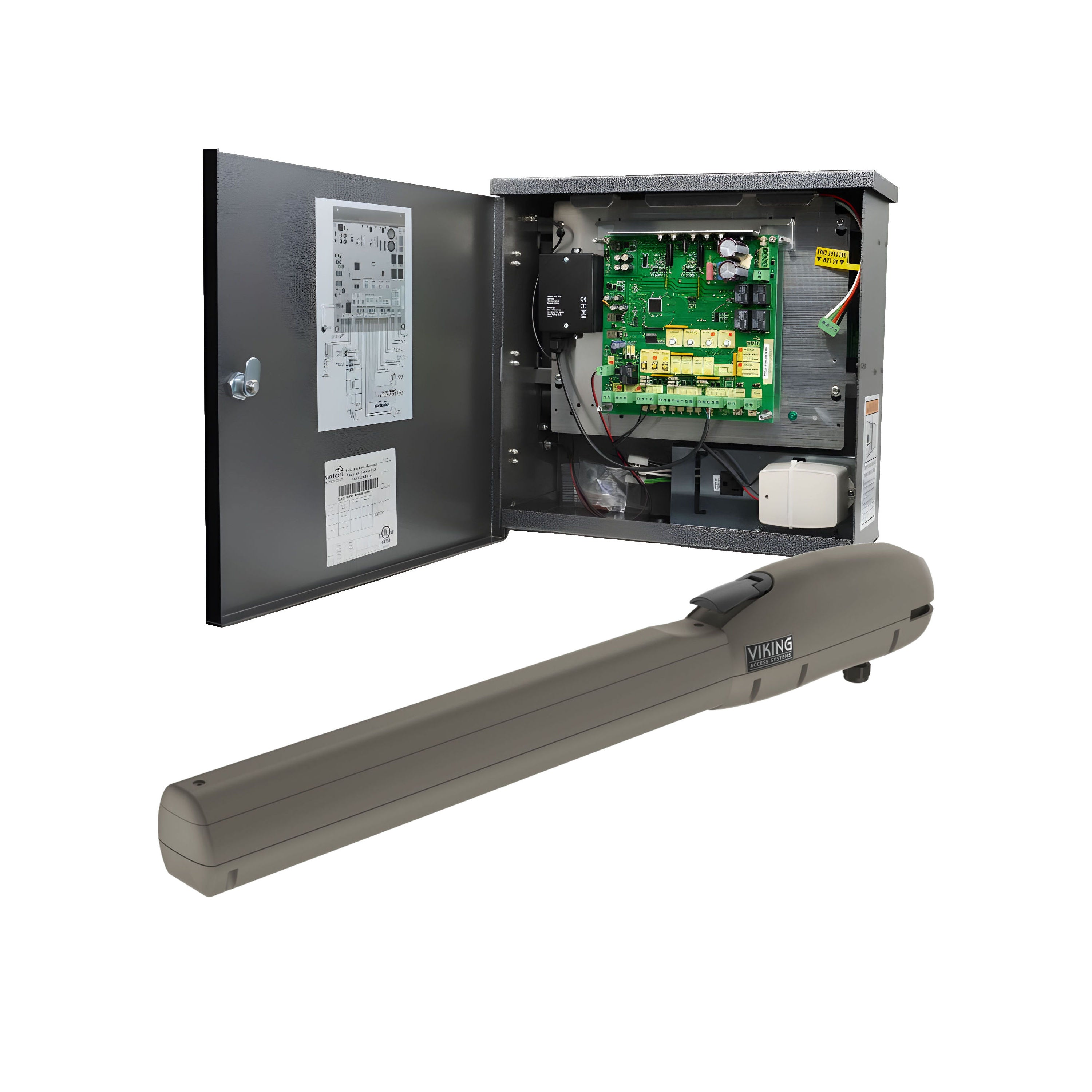

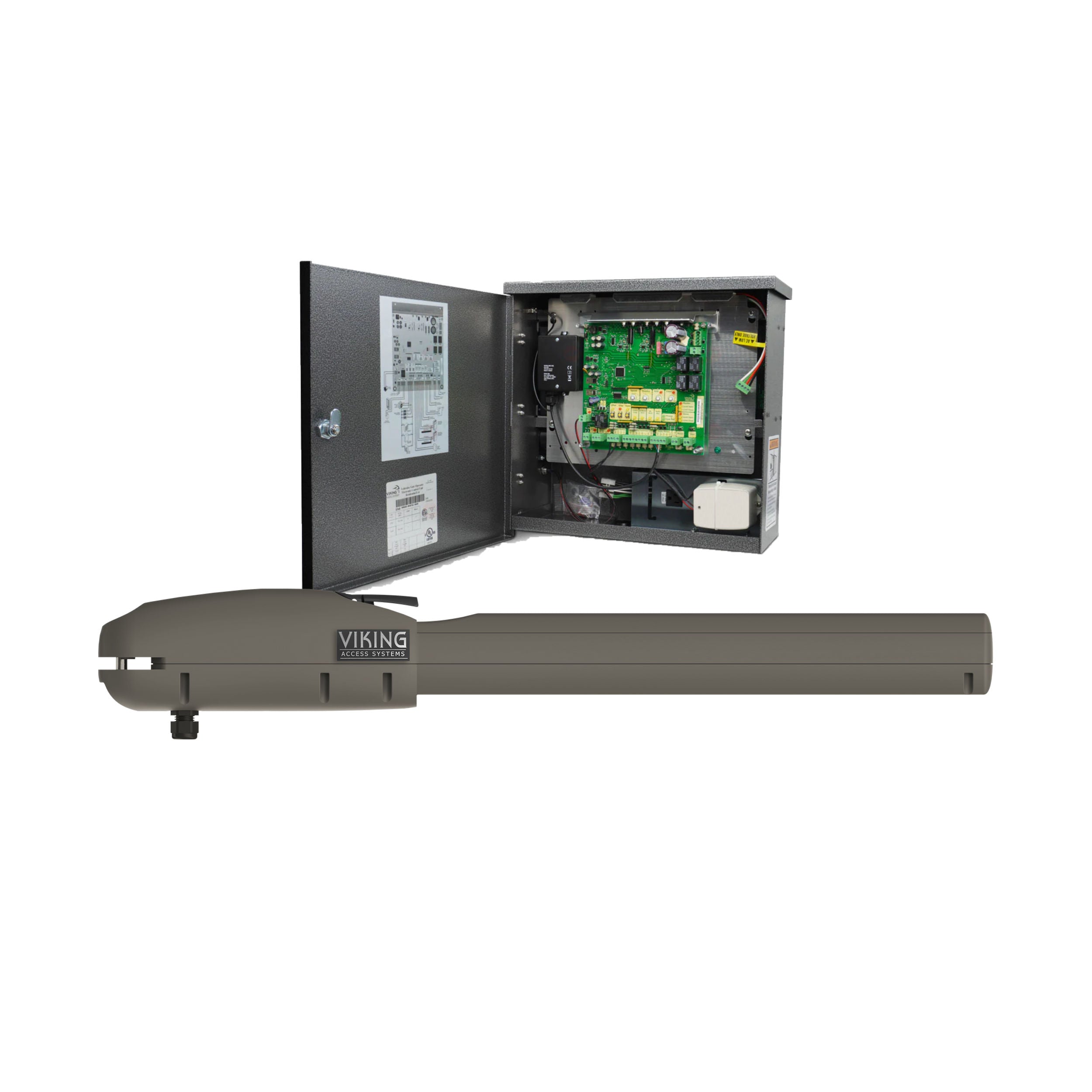

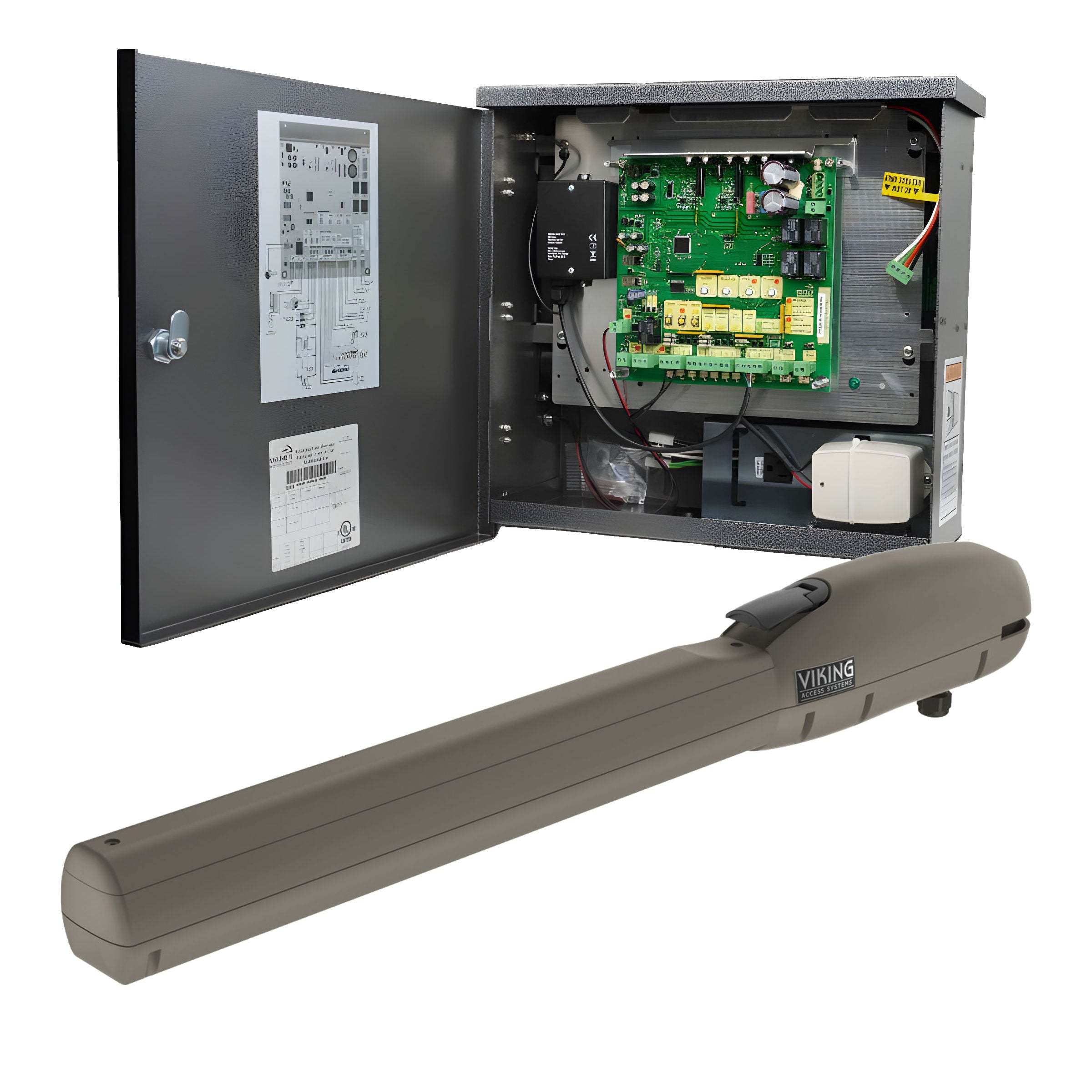

The Viking Access E-4 Swing Gate Operator Kit (VA-E4K-S) automates a single residential swing gate leaf from one Electronic Control Unit. The VA-E4 operator drives a 24 VDC, 1/2 HP motor capable of moving gate leaves up to 850 lbs in weight and up to 16 ft in length, with capacity decreasing at longer gate lengths per the manufacturer's weight/length chart. The system is ETL listed and UL 325 Class I compliant for residential vehicular swing gate applications.

The control board accepts 120VAC, 240VAC, 24VAC/VDC, or direct solar input via a dedicated port. Two backup batteries are included and deliver up to 400 continuous cycles during a power outage. The FA-XP30-10K 10K resistor-based photocell connects to the monitored UL or Re-Open terminal and satisfies the UL 325 monitored entrapment protection requirement for swing gate installations. On-board surge and lightning protection is rated to 20,000 volts and 10,000 amps. The aluminum alloy chassis carries a UV powder coat finish for corrosion resistance in outdoor installations.

Key Features

• Complete kit includes one VA-E4 operator, VA-ECUE4-2 ECU, FA-XR2C 433 MHz receiver (factory pre-installed), two FA-XT4RC 433 MHz remotes, FA-XP30-10K monitored photocell, and two FA-XP30AC photocell adapters
• ETL listed, UL 325 Class I residential vehicular swing gate operator with one monitored entrapment device satisfying UL 325 compliance
• 100% continuous duty cycle; operating speed of 12 to 16 seconds per 90 degrees of travel
• Two backup batteries included with up to 400 continuous cycles available during a power outage
• Solar-ready via dedicated input port; on-board surge and lightning protection rated to 20,000 volts and 10,000 amps

Technical Specifications

• Part Number: VA-E4K-S
• Application: Residential single swing gate, ETL listed UL 325 Class I
• Operator Included: 1x VA-E4
• ECU: VA-ECUE4-2
• Radio Receiver: FA-XR2C, 433 MHz (factory pre-installed)
• Remote Transmitters: 2x FA-XT4RC, 433 MHz
• Photocell: FA-XP30-10K (10K resistor-based, monitored)
• Photocell Adapters: 2x FA-XP30AC
• Operating Voltage: 24 VDC, 1/2 HP
• Main Power: 120VAC / 240VAC single phase
• Main Power Current: 2.0A at 120VAC / 1.0A at 240VAC
• Alternative Power: 24VAC/VDC or solar (panel sold separately)
• Accessory Power Output: 24VDC, 750mA
• Power Consumption (Sleep Mode): 6mA
• Operating Angle: 110° max
• Operating Speed: 12 to 16 seconds per 90°
• Max Gate Weight: 850 lbs
• Max Gate Length: 16 ft
• Duty Cycle: 100% continuous
• Battery Backup: Up to 400 continuous cycles (2 batteries included)
• Lightning/Surge Protection: Up to 20,000 volts / 10,000 amps
• Operating Temperature: -20°F to +160°F
• Chassis: Aluminum alloy, UV powder coated
• Manufacturer: Viking Access Systems
• Condition: New

Conclusion

Gate weight capacity varies by gate length per the manufacturer's chart: 850 lbs at 10 ft, 750 lbs at 12 ft, 650 lbs at 14 ft, and 550 lbs at 16 ft. Confirm your gate dimensions against these values before ordering. Solar panels and extended battery kits are not included and are sold separately; the Viking 24V Solar Kit (VA-SOCHP) is the compatible option for solar installations. This kit is rated Class I for residential use only.
