Viking Access E-4 Dual Swing Gate Operator Kit

Complete Dual Swing Gate Operator Kit for Residential Properties

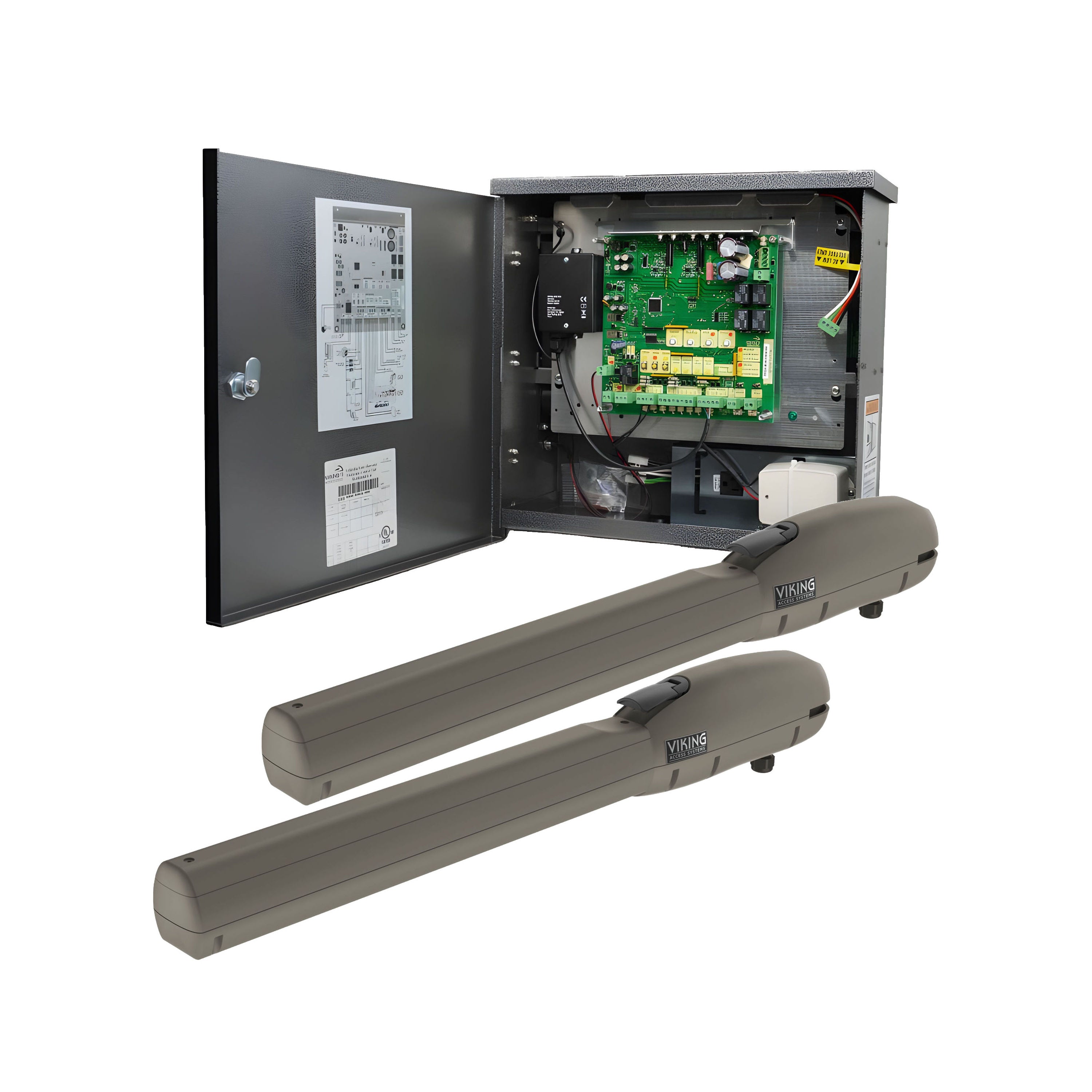

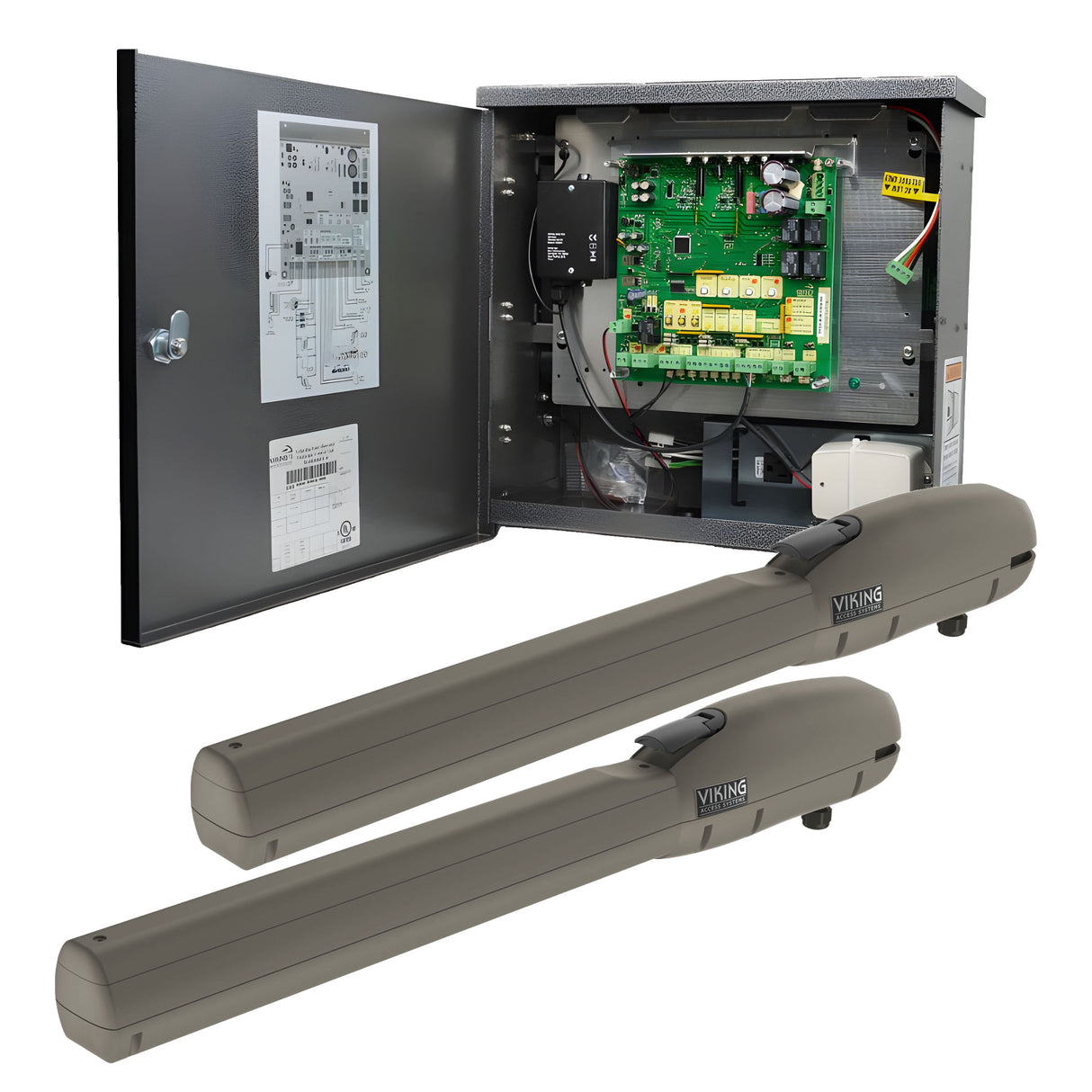

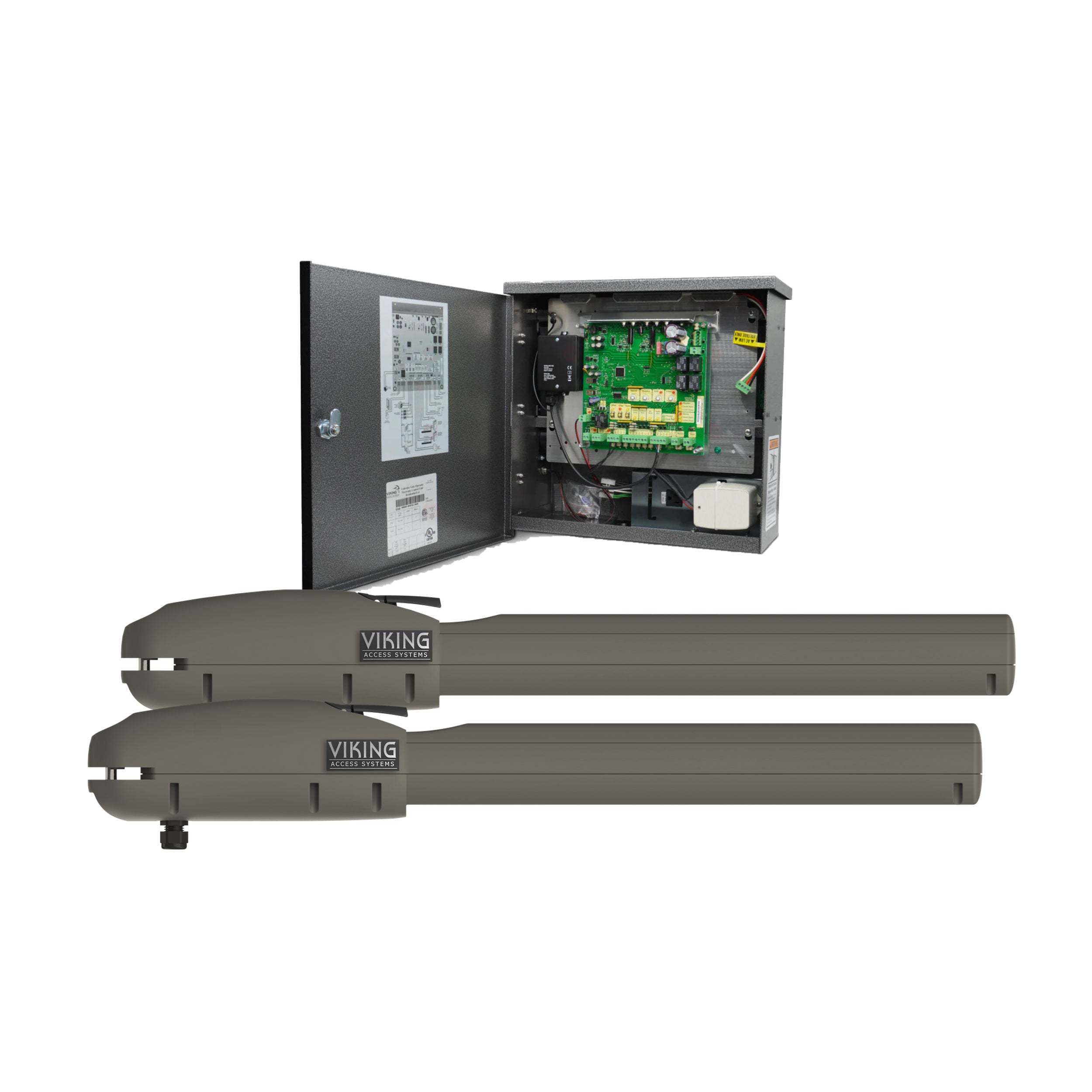

The Viking Access E-4 Dual Swing Gate Operator Kit (VA-E4K-D) automates two residential swing gate leaves from a single Electronic Control Unit. Each VA-E4 operator drives a 24 VDC, 1/2 HP motor capable of moving gate leaves up to 850 lbs in weight and up to 16 ft in length, with capacity decreasing at longer gate lengths per the manufacturer's weight/length chart. The system is ETL listed and UL 325 Class I compliant for residential vehicular swing gate applications.

The single control board manages both primary and secondary operators with adjustable overlap delay to sequence leaf movement, and accepts 120VAC, 240VAC, 24VAC/VDC, or direct solar input via a dedicated port. Two backup batteries are included and deliver up to 400 continuous cycles during a power outage. The FA-XP30-10K 10K resistor-based photocell connects to the monitored UL or Re-Open terminal and satisfies the UL 325 monitored entrapment protection requirement for swing gate installations. On-board surge and lightning protection is rated to 20,000 volts and 10,000 amps. The aluminum alloy chassis carries a UV powder coat finish for corrosion resistance in outdoor installations.

Key Features

• Complete kit includes two VA-E4 operators, VA-ECUE4-2 ECU, FA-XR2C 433 MHz receiver (factory pre-installed), two FA-XT4RC 433 MHz remotes, FA-XP30-10K monitored photocell, two FA-XP30AC photocell adapters, DJBK junction box, and 40 ft of VA-2CB16 two-conductor cable
• ETL listed, UL 325 Class I residential vehicular swing gate operator; single control board runs both gate leaves with no additional boards required
• 100% continuous duty cycle; operating speed of 12 to 16 seconds per 90 degrees of travel
• Two backup batteries included with up to 400 continuous cycles available during a power outage
• FA-XP30-10K 10K resistor-based photocell satisfies UL 325 monitored entrapment protection requirements for swing gate installations
• Solar-ready via dedicated input port; on-board surge and lightning protection rated to 20,000 volts and 10,000 amps

Technical Specifications

• Part Number: VA-E4K-D
• Application: Residential dual swing gate, ETL listed UL 325 Class I
• Operators Included: 2x VA-E4 (primary and secondary)
• ECU: VA-ECUE4-2
• Radio Receiver: FA-XR2C, 433 MHz (factory pre-installed)
• Remote Transmitters: 2x FA-XT4RC, 433 MHz
• Photocell: FA-XP30-10K (10K resistor-based, monitored)
• Photocell Adapters: 2x FA-XP30AC
• Junction Box: DJBK
• Secondary Motor Cable: 40 ft VA-2CB16, 2-conductor
• Operating Voltage: 24 VDC, 1/2 HP
• Main Power: 120VAC / 240VAC single phase
• Main Power Current: 2.0A at 120VAC / 1.0A at 240VAC (per motor)
• Alternative Power: 24VAC/VDC or solar (panel sold separately)
• Accessory Power Output: 24VDC, 750mA
• Power Consumption (Sleep Mode): 6mA
• Operating Angle: 110° max
• Operating Speed: 12 to 16 seconds per 90°
• Max Gate Weight: 850 lbs per leaf
• Max Gate Length: 16 ft per leaf
• Duty Cycle: 100% continuous
• Battery Backup: Up to 400 continuous cycles (2 batteries included)
• Lightning/Surge Protection: Up to 20,000 volts / 10,000 amps
• Operating Temperature: -20°F to +160°F
• Chassis: Aluminum alloy, UV powder coated
• Manufacturer: Viking Access Systems
• Condition: New

Conclusion

Gate weight capacity varies by gate length per the manufacturer's chart: 850 lbs at 10 ft, 750 lbs at 12 ft, 650 lbs at 14 ft, and 550 lbs at 16 ft per leaf. Confirm your gate dimensions against these values before ordering. Solar panels and extended battery kits are not included and are sold separately; the Viking 24V Solar Kit (VA-SOCHP) is the compatible option for solar installations. This kit is rated Class I for residential use only.
