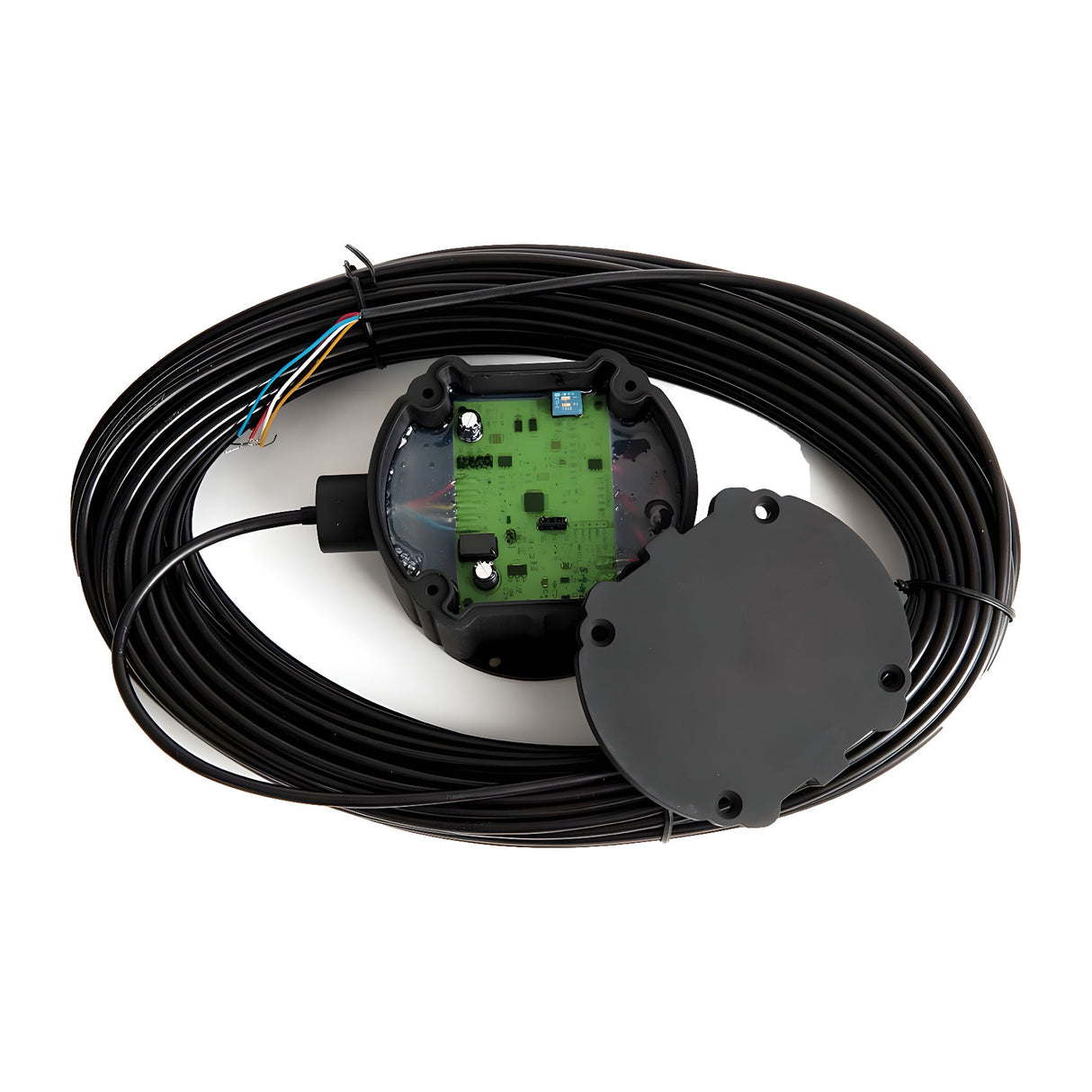

USAutomatic 070305 Free Exit Device

Reliable, Hands-Free Vehicle Exit Sensor for Gate Systems

The US Automatic 070305 Free Exit Device (CP4) offers a reliable, hands-free solution for automatically opening gates when vehicles exit your property. Using advanced magnetometer technology, the sensor detects moving vehicles and triggers the gate to open without the need for remotes, keypads, or fobs. Ideal for residential and commercial use, this in-ground sensor integrates seamlessly with both solar-powered and electric gate systems, providing secure and convenient exit control.

Key Features

• Hands-Free Operation: No need for remotes, keypads, or fobs – the sensor automatically opens the gate when a vehicle is detected.
• In-Ground Installation: Discreet and secure installation next to the driveway, buried out of sight.
• Solar and Electric Compatibility: Works with both solar-powered and electric gate systems for maximum flexibility.
• Durable Construction: Built to withstand harsh outdoor environments with improved weather and temperature resistance.
• Magnetometer Technology: Ensures accurate detection of moving vehicles while reducing false triggers from animals or other objects.
• 100 Feet of Direct-Burial Cable: Provides installation flexibility and secure operation over a long distance.
• Compatibility: All US Automatic gate openers

Technical Specifications

• Power: 8-24 VAC or 8-30 VDC
• Standby Current: 30-70 μA
• Alarm Current: 40-50 mA
• Relay Contact Rating: SPDT (Form C), N.O. or N.C., 1 amp/24 VDC
• Cable Length: 100 feet
• Enclosure Rating: IP68 for extreme weather resistance
• Temperature Range: -25°F to 140°F
• Dimensions: 4.5 inches diameter, 2.5 inches high

Conclusion

The US Automatic 070305 Free Exit Device offers a reliable and secure solution for hands-free gate operation. Its advanced magnetometer technology ensures accurate vehicle detection, while the weather-resistant design makes it perfect for long-term outdoor installations. With compatibility for both solar and electric systems, this device is ideal for both residential and commercial use, providing a simple and effective way to manage automatic gate exits.
