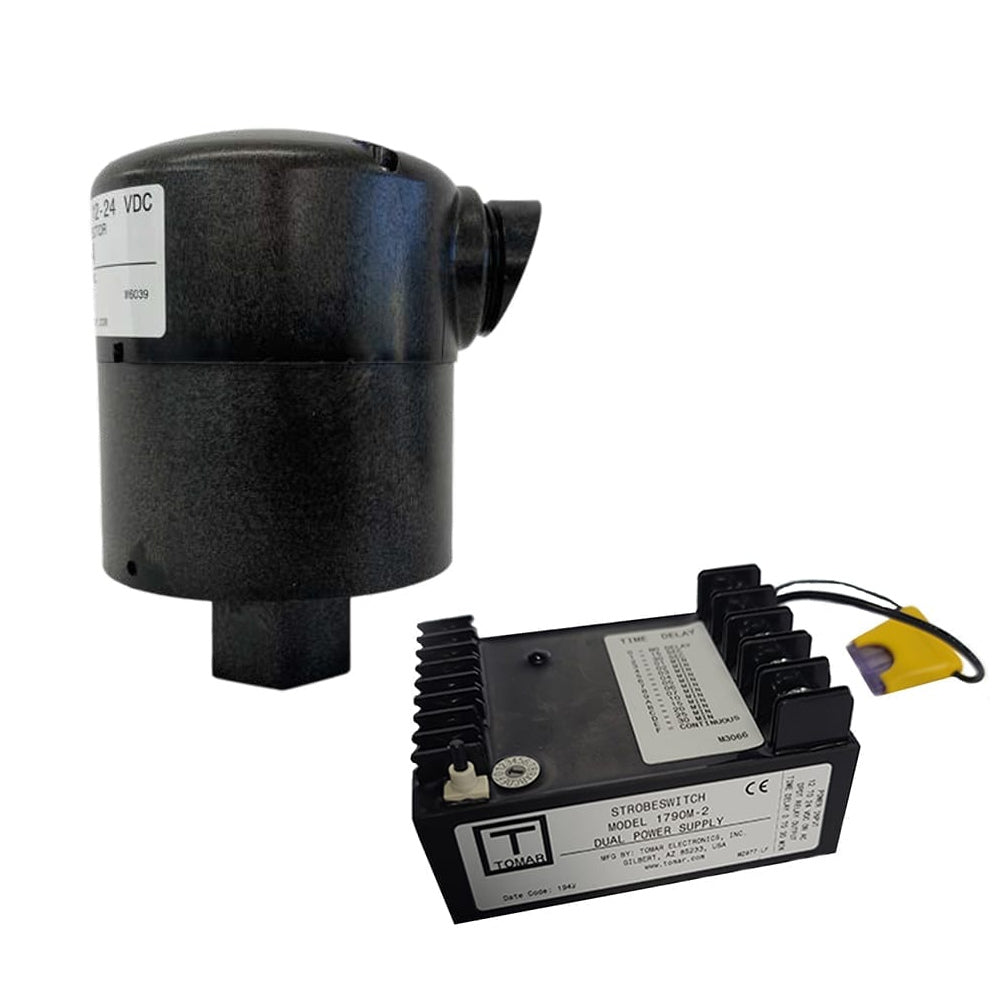

TOMAR 1790-1014-SM2 STROBESWITCH KIT WITH POWER MODULE

TOMAR 1790-1014-SM2 STROBESWITCH KIT WITH POWER MODULE
TOMAR 1790-1014-SM2 STROBESWITCH KIT WITH POWER MODULE

TOMAR 1790-1014-SM2 STROBESWITCH KIT WITH POWER MODULE

Vendor
MFG:Tomar
SKU: 1790-1014-SM2
Regular price
MSRP: $1,495.00
Sale price
Your Price: $729.99
Quantity must be 1 or more


Tomar 1790-1014-SM2 Strobeswitch With Power Module

Download Spec Sheet Download Manual

Strobswitch™ is a compact low cost detector which detects a special strobe light signal and opens access gates to allow quick entrance. The detector is activated by the strobe emitters used by most fire department emergency vehicles to control traffic signals en route to a fire. The 1790–1014 STROBESWITCH™ interfaces with the TOMAR model 780–1228–PRE or GTT OPTICOM® traffic preemption optical signal emitters. The model 1790 features a 1/2” female pipe hub mounting base.

The emergency vehicle uses a special strobe light to transmit a continuously flashing optical signal. The TOMAR 1790–1014 STROBESWITCH™ receives this signal, and if the signal format is correct, activates a relay. The relay contacts may be used to control security gates, fire department garage doors, and other devices. Signaling is optical by line of sight, and the 1790 can operate indoors or outdoors, in bright sunlight, or in any weather. The unit is not susceptible to radio frequency interference, and uses digital frequency discrimination to reject unwanted signals, such as flashlights, emergency vehicle lighting systems, flashing signs, etc. 1790–1014 STROBESWITCH™


Specifications

  • Detects Emergency Vehicle and Opens Access Gate to Allow Quick Entry.
  • Allows Emergency Vehicles Faster Response Times in Time-Critical Situations
  • Economical and Compact
  • Range: 200 feet typical, but depends on intensity of strobe emitter
  • Field of View: 10º vertical, 90º horizontal
  • Signal Acquisition Time: 0.64 seconds
  • Function Indicator: The unit has a red LED that illuminates whenever a proper optical signal is received. The LED is visible thru the viewport and can be seen for 25 feet or more. This feature can be used with the optional Hand Held Tester to verify the unit’s operation.
  • Frequency: F14 = 14.035 Hz ± .25 Hz ( high priority ) F10 = 10.000 Hz ± .25 Hz ( low priority )
  • Power Module: 12–24VDC AC/DC
  • DPDT: relay output 2A @ 30VDC, 0.6A @ 120VAC
  • 0–30 minute time delay plus continuous latch mode
  • Non-stock special order items. May take up to 2 weeks to ship out

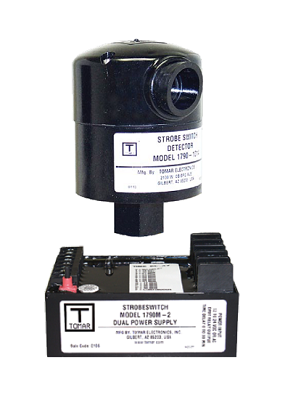

TOMAR 1790-1014-SM2 strobe package
