Security Brands Ascent M3 Multi-Tenant Entry System

Compact Cellular Multi-Tenant Entry System with Touchscreen Access

The Security Brands Ascent M3 is a compact cellular multi-tenant entry system for gated communities, apartment buildings, commercial properties, offices, and controlled perimeter entrances. This listing includes both the surface-mount and flush-mount variants, allowing the same Ascent M3 platform to be used on pedestal-mounted installations or recessed wall and enclosure applications.

The Ascent M3 uses 4G LTE cellular connectivity with automatic network selection and is managed through Summit Control. Property managers can control access remotely, manage users, review events, configure keypad codes, and operate multiple entry points from anywhere with an internet connection and an active service plan.

An 8-inch full-color touchscreen gives visitors a compact directory interface for finding and calling the correct resident, tenant, office, or contact. The system supports video calling with IR for low-light visual identification, rollover calling to up to three phone numbers, GuestPass QR-code access, keypad entry, app access, text access, voice access, and Wiegand-connected access devices.

The Ascent M3 can control up to two gates or doors and includes two Wiegand inputs for compatible readers, keypads, or other Wiegand devices. It also supports push and email event and status notifications, LED downlighting, LED-backlit buttons, and locally stored keypad codes. A SIM card is preinstalled and ready for activation, and a 24VDC power supply is included.

Key Features

• Compact cellular multi-tenant entry system
• Security Brands Ascent M3 platform
• Available in surface-mount and flush-mount variants
• 4G LTE cellular connection with automatic network selection
• Full-color 8-inch LCD touchscreen
• Touchscreen directory for tenant or resident lookup
• Video calling with IR for low-light visibility
• Controls up to 2 gates or doors
• 2 Wiegand inputs for compatible access devices
• GuestPass time-limited and use-limited QR-code access
• Supports app, text, voice, keypad, directory, Wiegand devices, and QR-code access
• Up to 10,000 app, text, and voice users depending on service plan
• Up to 10,000 keypad codes stored locally depending on service plan
• Rollover calling to up to 3 phone numbers
• Push and email event and status notifications
• Cloud-based access control management through Summit Control
• LED downlight and LED-backlit buttons
• SIM card preinstalled and ready for activation
• 24VDC power supply included
• Made in the USA from global materials

Technical Specifications

• Manufacturer: Security Brands
• Product Name: Ascent M3
• Surface-Mount Model: 16-M3

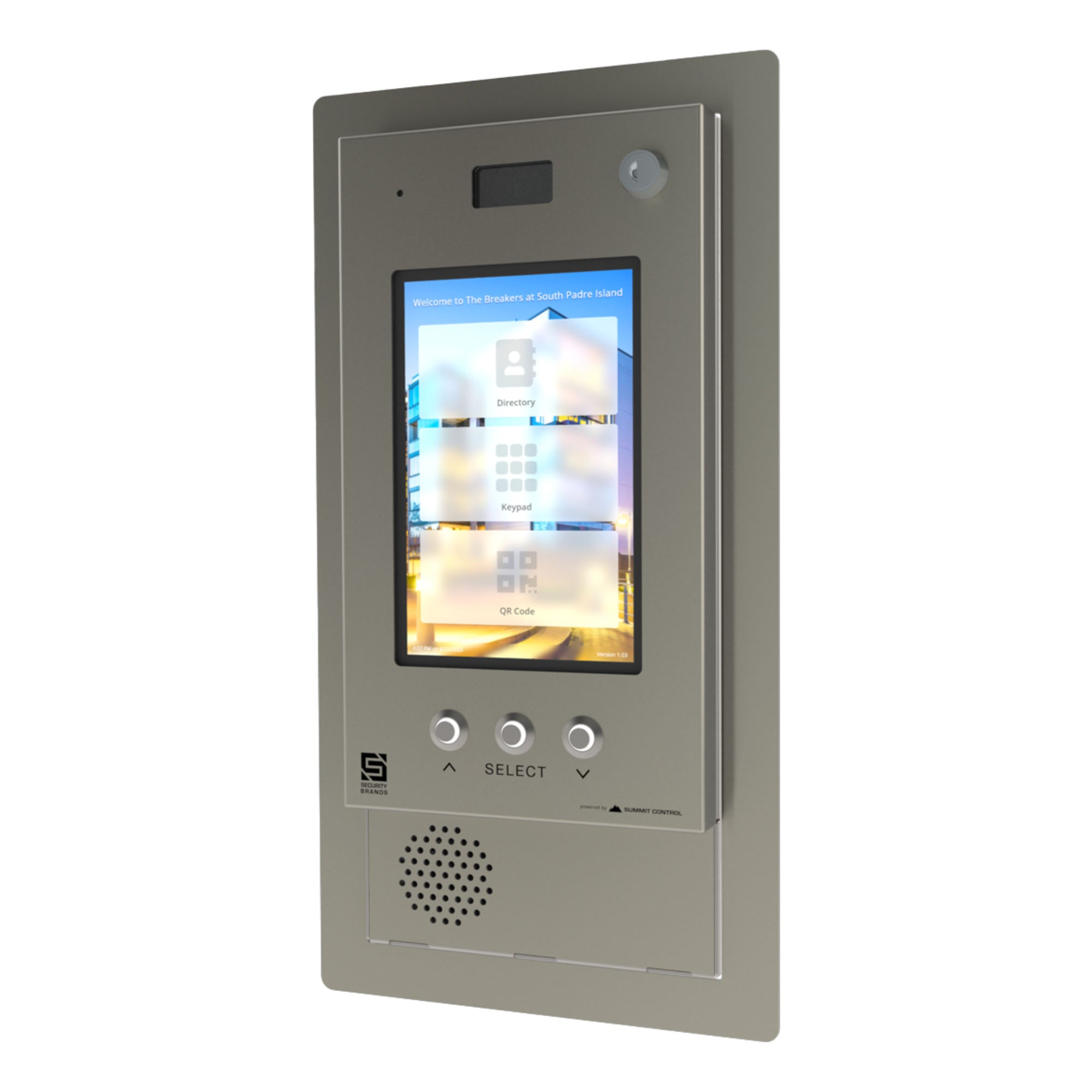

• Flush-Mount / Recessed Model: 16-M3REC
• Product Type: Cellular multi-tenant entry and access control system
• Software Platform: Summit Control
• Cellular Network: 4G LTE
• Cellular Selection: Automatic network selection
• Display: 8-inch full-color LCD touchscreen
• Directory: Touchscreen directory interface
• Video Calling: Yes, with IR for low-light visibility
• Controlled Entrances: Up to 2 gates or doors
• Wiegand Inputs: 2
• Access Methods: App, text, voice, keypad, directory, Wiegand devices, and GuestPass QR code
• Guest Access: GuestPass QR-code access with time and use limits
• User Capacity: Up to 10,000 app, text, and voice users depending on service plan
• Keypad Code Capacity: Up to 10,000 keypad codes stored locally depending on service plan
• Calling Feature: Rollover calling to up to 3 phone numbers
• Notifications: Push and email event and status notifications
• Relay Outputs: 2 relays for gate or door control
• Relay Contact Rating: 10A at 120VAC or 24VDC
• Maximum Switching Voltage: 250VAC or 30VDC
• Maximum Switching Current: 15A
• Maximum Switching Power: 240W or 2,770VA
• Input Power: 24VDC
• Included Power Supply: PS-24DC3 24VDC power supply
• Current Draw: Dependent on user settings
• Solar Use: Not recommended for solar applications
• Operating Temperature: -15°F to 158°F
• Surface-Mount Dimensions: 12.93 in. H x 6.75 in. W x 4.36 in. D
• Surface-Mount Shipping Weight: 14 lb.
• Surface-Mount Mounting: Pedestal mounting hole pattern spaced at 3.063 in.; pilot holes for alternate mounting at 2.5 in.
• Surface-Mount Included Hardware: Four carriage bolts, four hex nuts, key, screwdriver, and 24V AC/DC adapter
• Flush-Mount Rough-In Size: 15-1/4 in. H x 6-7/8 in. W
• Flush-Mount Installation: Recessed wall or surface cutout installation
• Flush-Mount Included Accessories: Key, screwdriver, 24V AC/DC adapter, and 5-ft 4G LTE antenna extension kit
• Antenna Note: Flush-mount antenna should be mounted in an unobstructed location and connected to the unit
• Wiegand Wiring: Either Wiegand terminal set can be used and configured in Summit Control
• Recommended Wiring: 18-gauge stranded wire for connections
• Activation Requirement: Unit will not operate until activation is complete
• Service Requirement: Active Summit Control service plan required for cloud management and keypad code administration
• Safety Requirement: Emergency egress or primary entry mechanism should always be used
• Application Warning: Cellular connection cannot be guaranteed and should not be the only means of entry or emergency access

Conclusion

The Security Brands Ascent M3 provides compact cellular multi-tenant access control with an 8-inch touchscreen, video calling, QR guest access, two Wiegand inputs, and control for up to two gates or doors. With surface-mount and flush-mount variants available, it can be configured for pedestal, wall, or recessed installations while keeping access management centralized through Summit Control.
