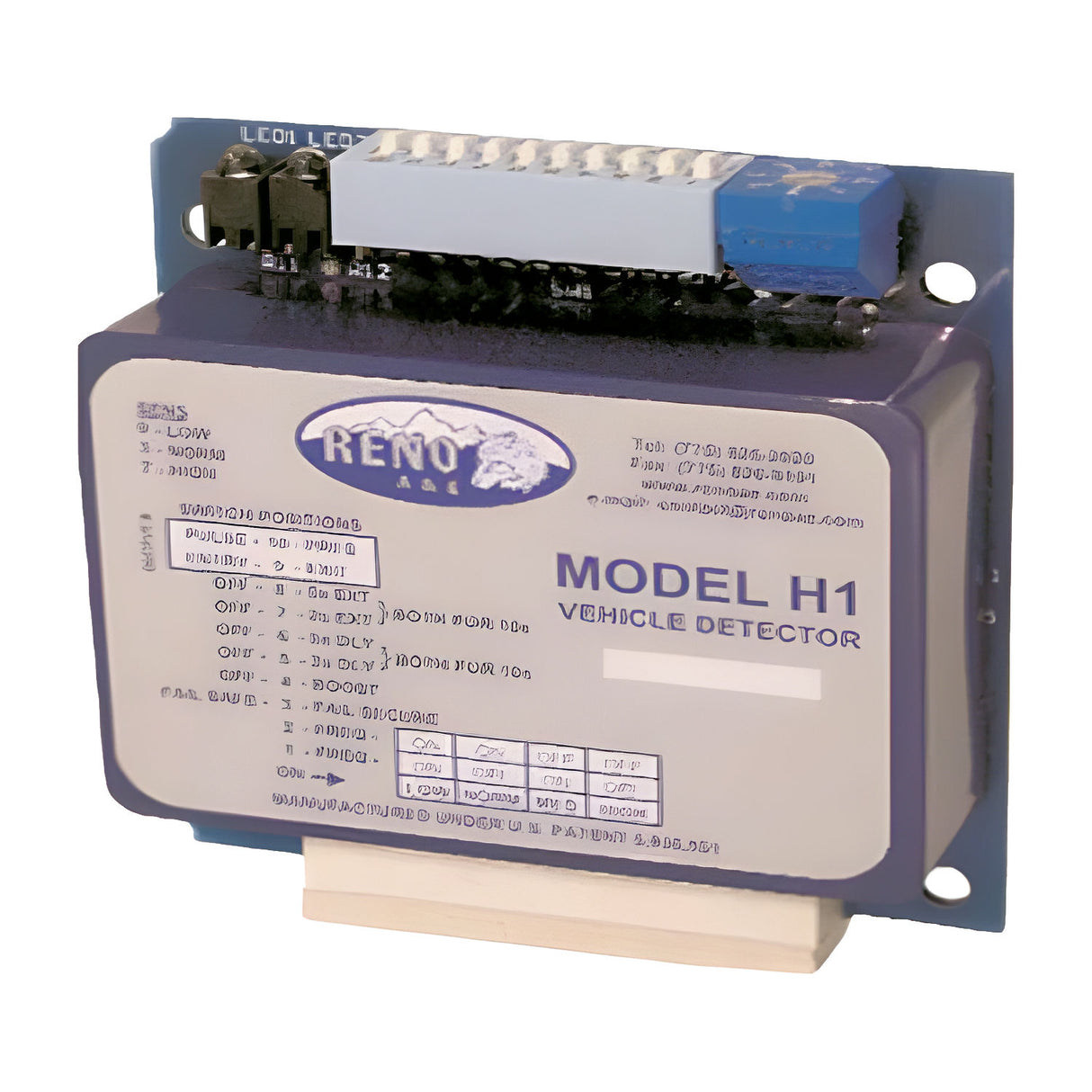

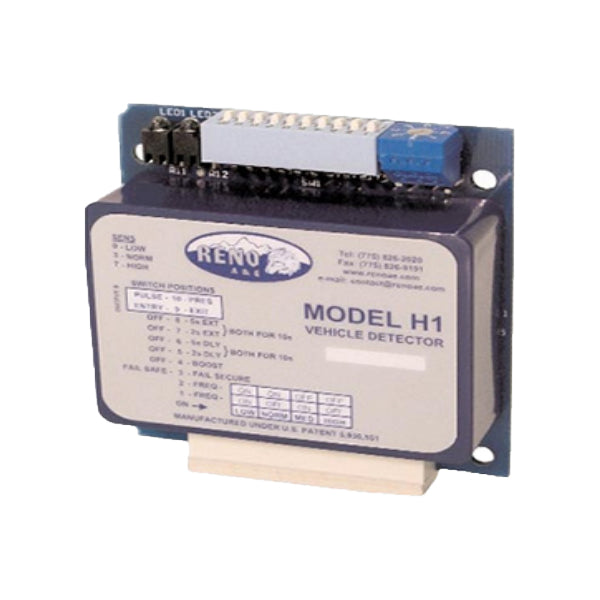

Reno H1-12-F Single Channel Loop Detector

Vehicle Detection Loop Module for Gate & Access Systems

The Reno A&E H1-12-F is a compact, full-featured, single-channel vehicle loop detector engineered for precision detection in automatic gate, barrier, and access control systems. Designed as a direct replacement for the legacy H-12-F model, it offers enhanced performance while maintaining plug-in compatibility. With selectable fail-safe or fail-secure modes, adjustable sensitivity, and a built-in detect memory function, the H1-12-F ensures reliable operation across a wide range of commercial and industrial environments.

Key Features

• Voltage Input: Operates on 12 VDC power
• Output Configuration: 3 solid-state (FET) outputs - Presence A, Configurable B, and Fail
• Fail Modes: Selectable fail-safe or fail-secure operation for Output A
• Detection Memory: Maintains detect state during momentary power loss (up to 2 seconds)
• Sensitivity Settings: 8 user-selectable levels with Sensitivity Boost option for high-bed vehicles
• Timing Controls: Selectable delay and extend intervals (0, 2, 5, 10 seconds)
• Loop Frequency: Four DIP-switch selectable frequencies to prevent cross-talk
• LED Indicators: Detect and Fail LEDs provide visual feedback and diagnostics
• Self Tuning: Auto-calibrates upon power-up or reset for optimal performance
• Compatibility: Direct plug-in replacement for H-12-F detectors

Technical Specifications

• Model: H1-12-F
• Power: 12 VDC
• Loop Inductance Range: 20 to 1000 µH (Q ≥ 5)
• Output Type: Solid-state open drain (up to 2.5 A, 25 VDC max)
• Operating Temperature: -30ºF to +180ºF (-34ºC to +82ºC)
• Response Time: As fast as 17 ms (varies by sensitivity level)
• Physical Dimensions: 2.50" H × 2.75" W × 0.85" D
• Connector: 10-pin Molex in-line female
• Weight: 1.9 oz (54 g)
• Mounting: PCB-mount style
• Environment: Fully self-compensating for temperature and loop drift

Conclusion

The H1-12-F loop detector from Reno A&E delivers precise, responsive vehicle detection in a space-saving form factor ideal for security gates, barrier arms, and traffic control systems. Whether replacing the H-12-F or building a new system, the H1-12-F offers robust configurability and long-term reliability trusted by professionals in perimeter security and access control.
