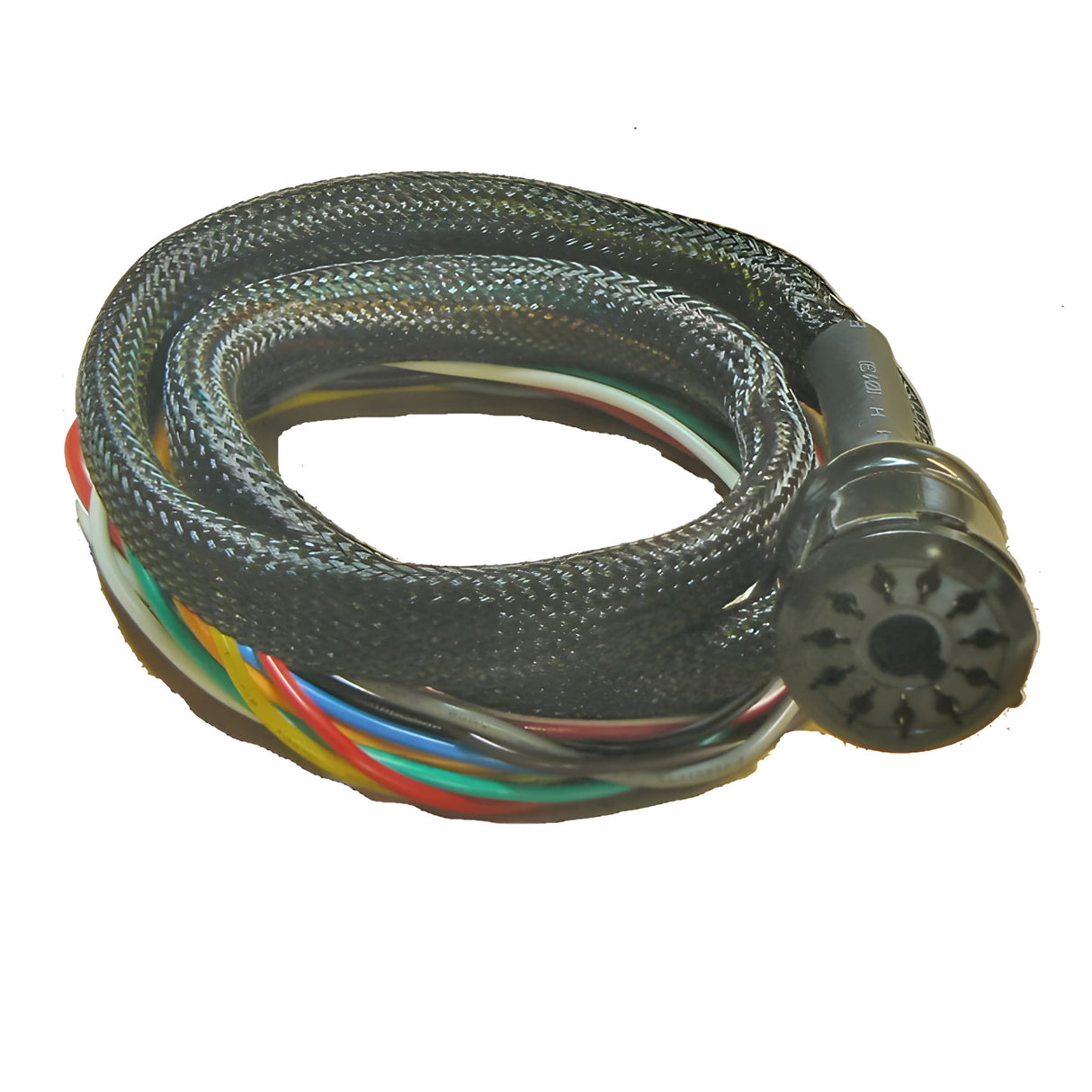

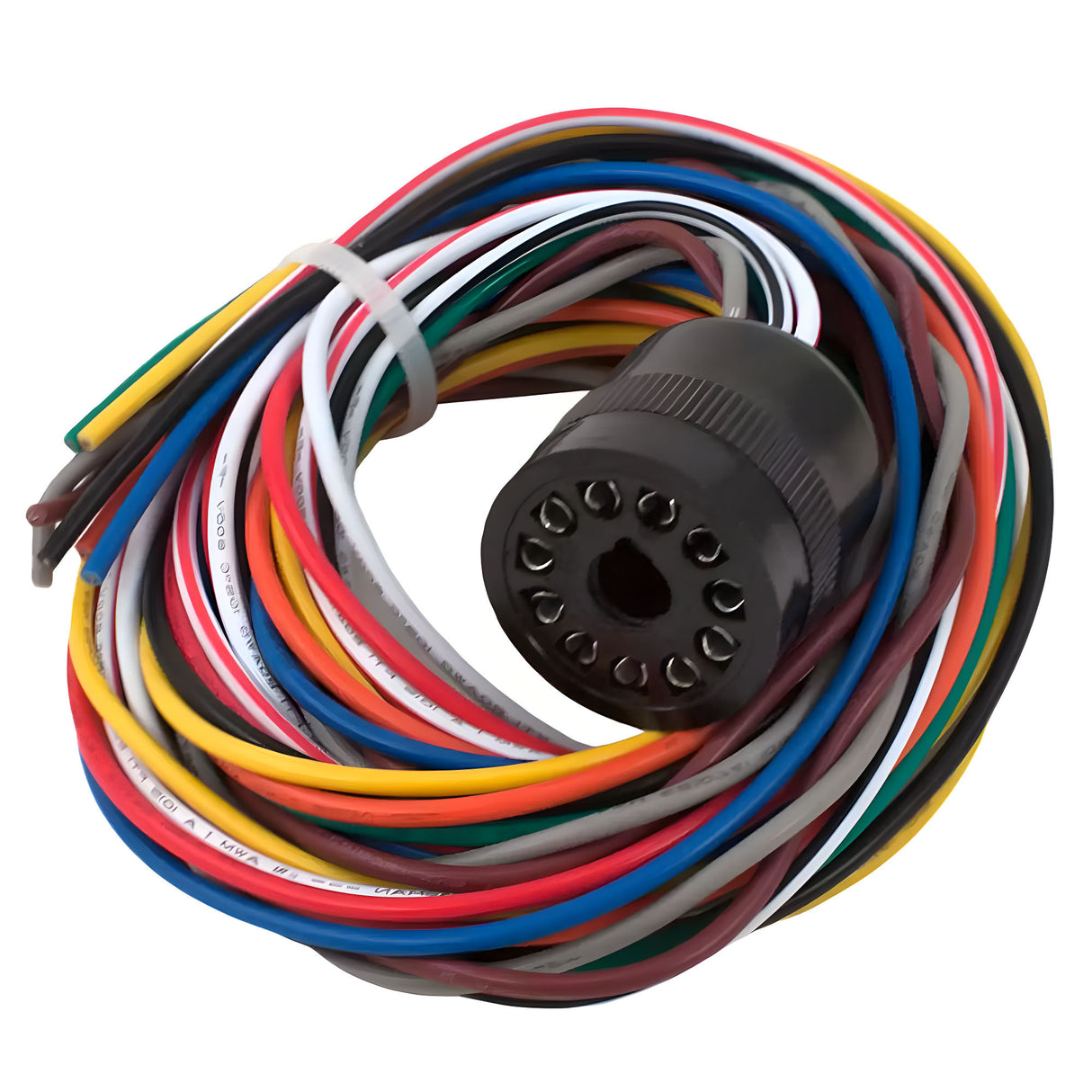

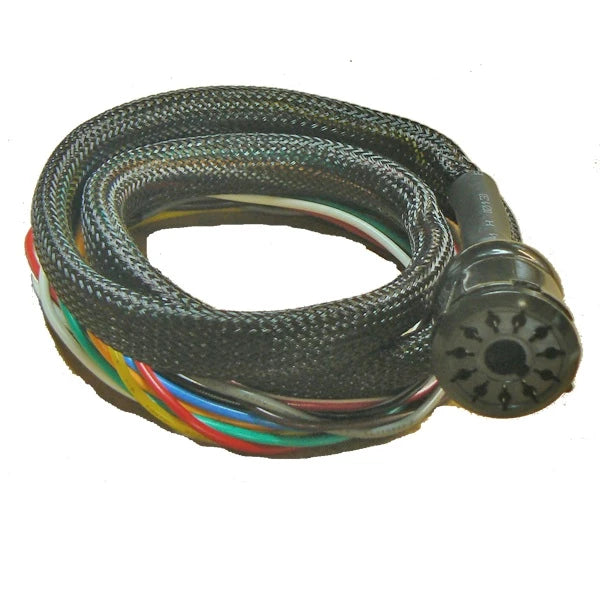

Reno LMH802-4 Loop Detector Harness (11-Pin)

11-Pin Harness for Loop Detector Installations

The Reno LMH802-4 is a high-quality 11-pin loop detector harness engineered for seamless integration with standard 11-pin traffic and gate loop detectors. Built to meet the demands of access control and vehicle detection environments, this 4-foot harness features pre-terminated color-coded leads and supports key twisted pairs for enhanced signal integrity. Ideal for swing gates, slide gates, and barrier arms, the LMH802-4 helps ensure secure, reliable loop performance in perimeter security systems.

Key Features

• Compatible with all 11-pin loop detectors, including Reno, EMX, and EDI
• Pre-wired with color-coded leads for clean, efficient installations
• 4-foot cable length provides flexibility during detector placement
• Twisted pairs for noise immunity – Pins 7 & 8, Pins 10 & 11
• #20 AWG stranded wire with PVC insulation rated for 105°C, 600V
• Ideal for access control and traffic detection applications

Technical Specifications

• Model: LMH802-4
• Connector Type: 11-pin plug
• Cable Length: 4 feet
• Wire Gauge: #20 AWG stranded
• Insulation: PVC, 105°C / 600V
• Twisted Pairs: Pins 7 & 8, Pins 10 & 11
• Application: Loop detector harness for traffic control and gate access systems

Conclusion

The LMH802-4 from Reno delivers reliable connectivity for loop detectors used in secure access and traffic systems. With durable materials, standardized pin layout, and pre-twisted critical leads, it offers professional-grade performance and simplifies installation in high-security gate and vehicle detection environments.
