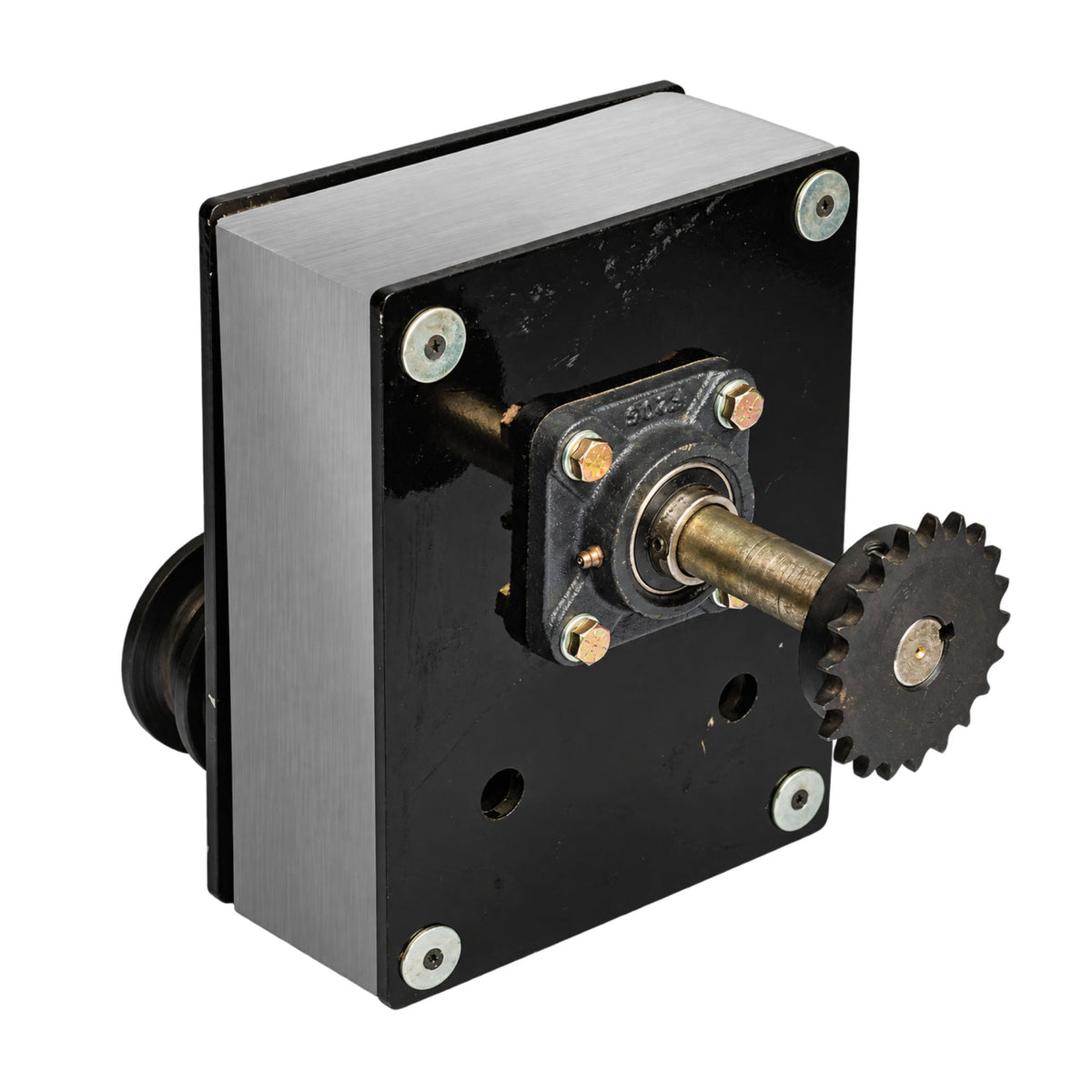

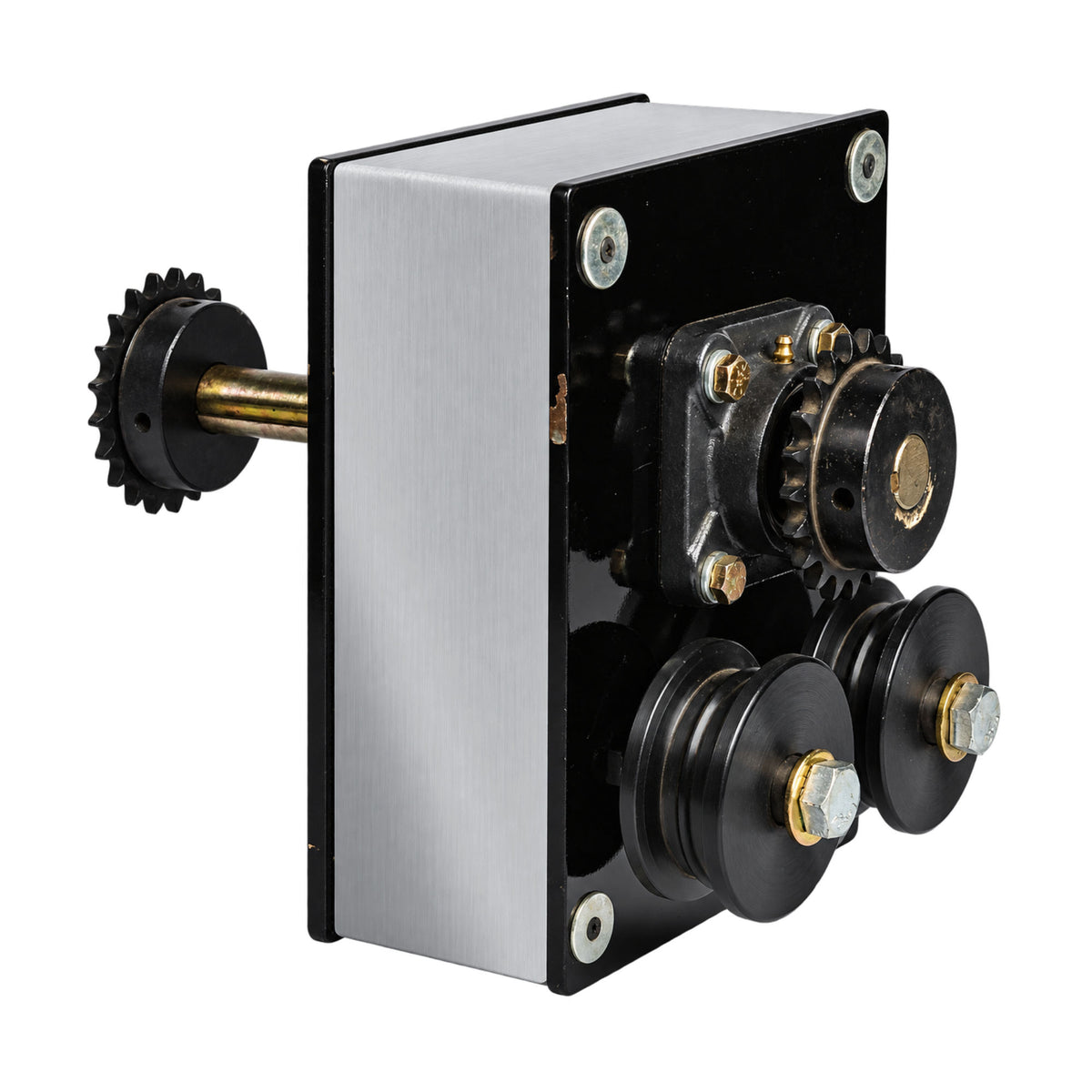

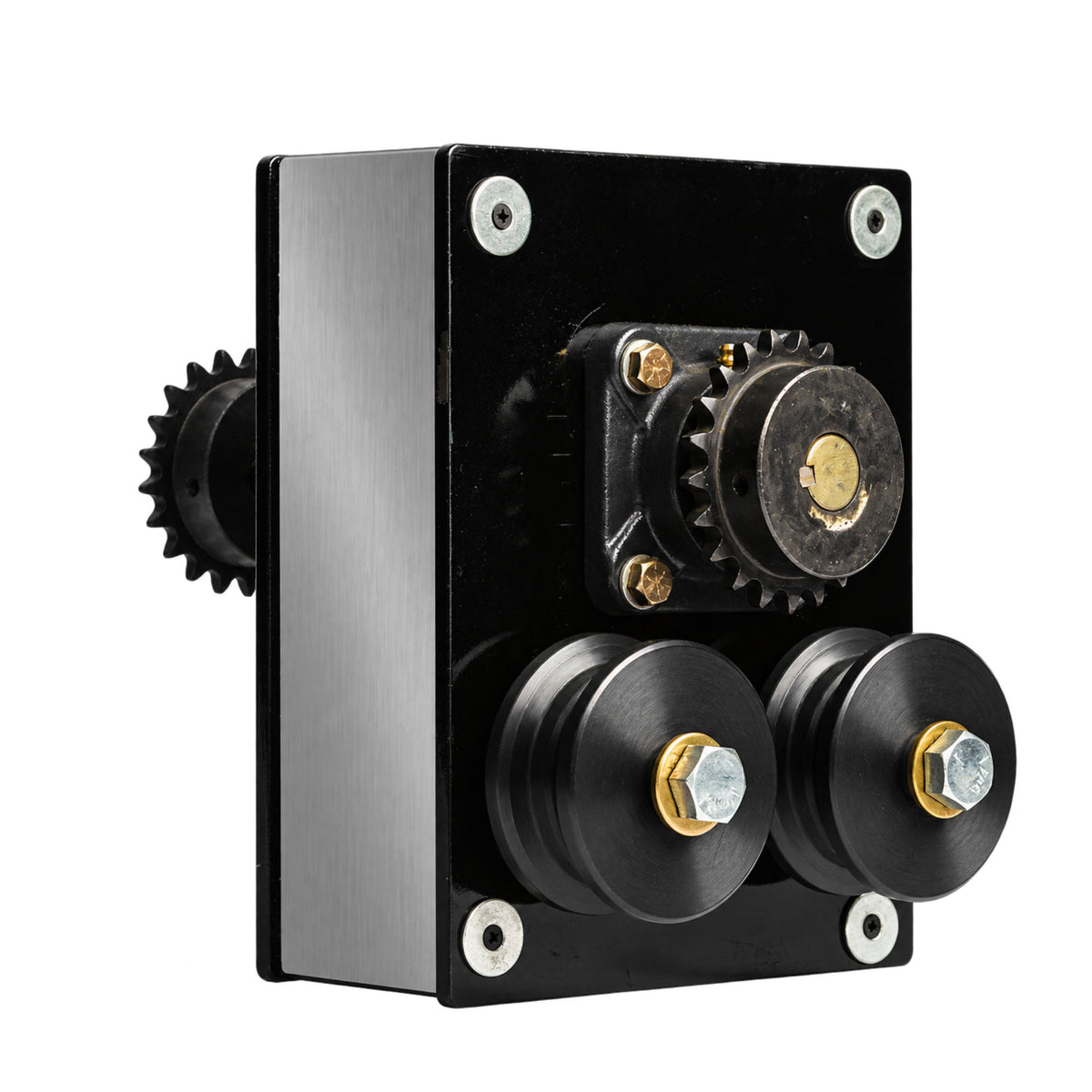

Ramset 800-80-80 Thru-Wall Extension Kit

Through-Wall Drive Extension for Protected Slide Gate Operator Installations

The Ramset 800-80-80 Thru-Wall Extension Kit is designed for slide gate installations where the gate operator needs to remain inside a building, secured area, or protected side of the property while the drive system extends through the wall to operate the gate outside.

The kit extends the drive sprocket and idler assembly through the wall, allowing the chain-drive components to reach the gate without requiring the operator itself to be mounted outdoors or on the exposed side of the perimeter.

This configuration can be useful for installations where protecting the gate operator from weather, tampering, traffic, or restricted exterior space is important.

Key Features

• Extends the drive sprocket and idlers through a wall
• Allows the gate operator to remain inside the property or building
• Designed for slide gate operator installations
• Helps protect the operator from exterior exposure and unauthorized access
• Provides a mechanical interface between an indoor-mounted operator and exterior gate chain
• Heavy-duty sprocket and idler assembly
• Intended for specialized through-wall gate automation layouts

Technical Specifications

• Manufacturer: Ramset
• Part Number: 800-80-80
• Product Type: Thru-wall drive extension kit
• Application: Slide gate operator installations
• Function: Extends drive sprocket and idlers through a wall
• Operator Location: Allows operator to remain inside the building or protected property side
• Drive Type: Chain-drive extension
• Listed Size: 8-1/2" x 11"
• Installation Type: Through-wall
• Compatibility: Confirm gate operator and installation configuration before ordering

Conclusion

The Ramset 800-80-80 Thru-Wall Extension Kit provides a practical way to operate an exterior slide gate while locating the gate operator inside a more protected area. By extending the drive sprocket and idlers through the wall, the kit keeps the primary operator equipment separated from the exposed gate side while maintaining the required chain-drive connection.

This is a specialized installation accessory, so wall thickness, operator position, chain alignment, and compatibility should be confirmed before installation.
