Ramset 800-80-25 Fire Box Pad Lock Type

Emergency Fire Department Access for Automated Gates

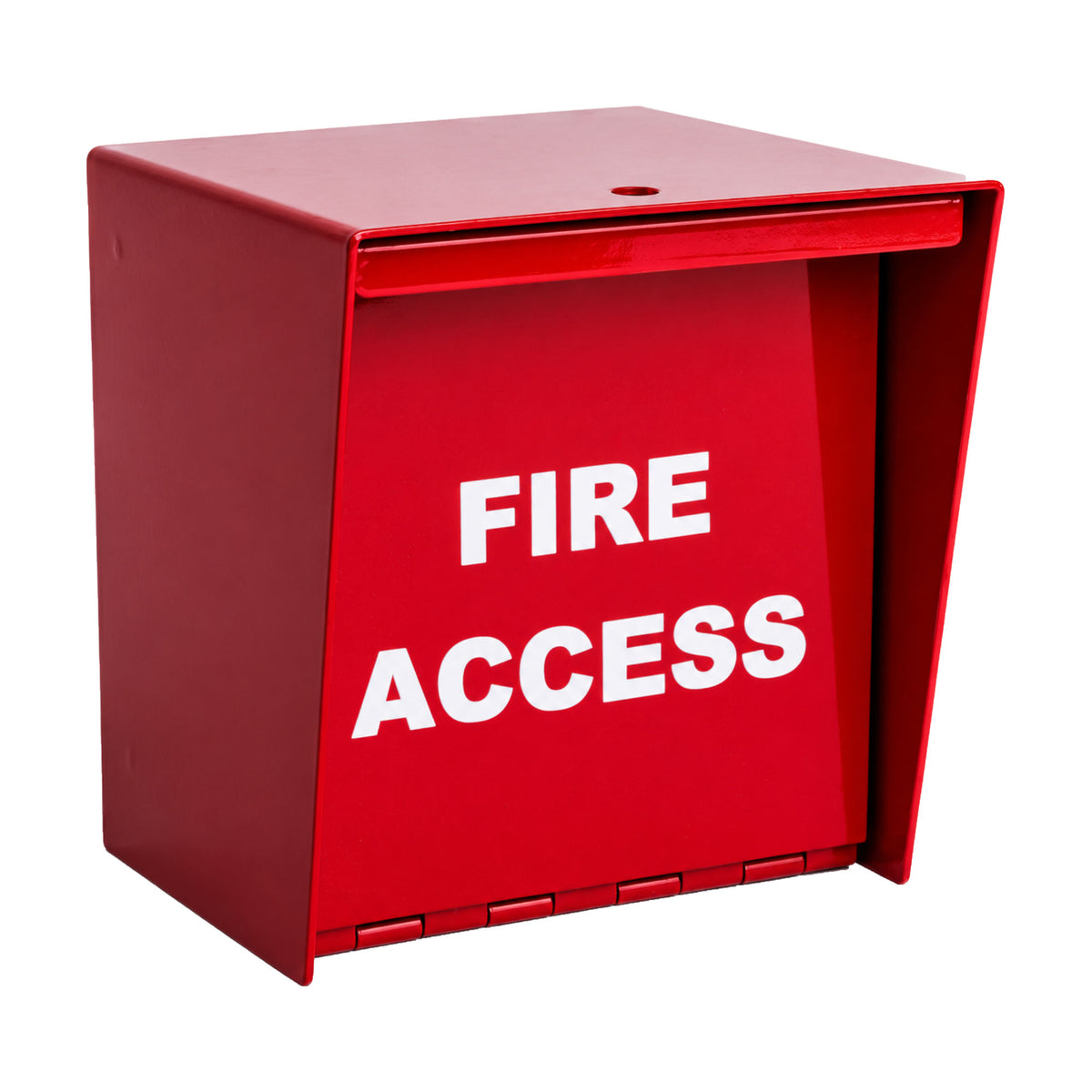

The Ramset 800-80-25 Fire Box, Pad Lock Type provides authorized fire department personnel with a dedicated way to open an automated gate during a fire or other emergency. The bright red enclosure is clearly marked FIRE ACCESS and is designed to accept a fire department padlock for controlled emergency use.

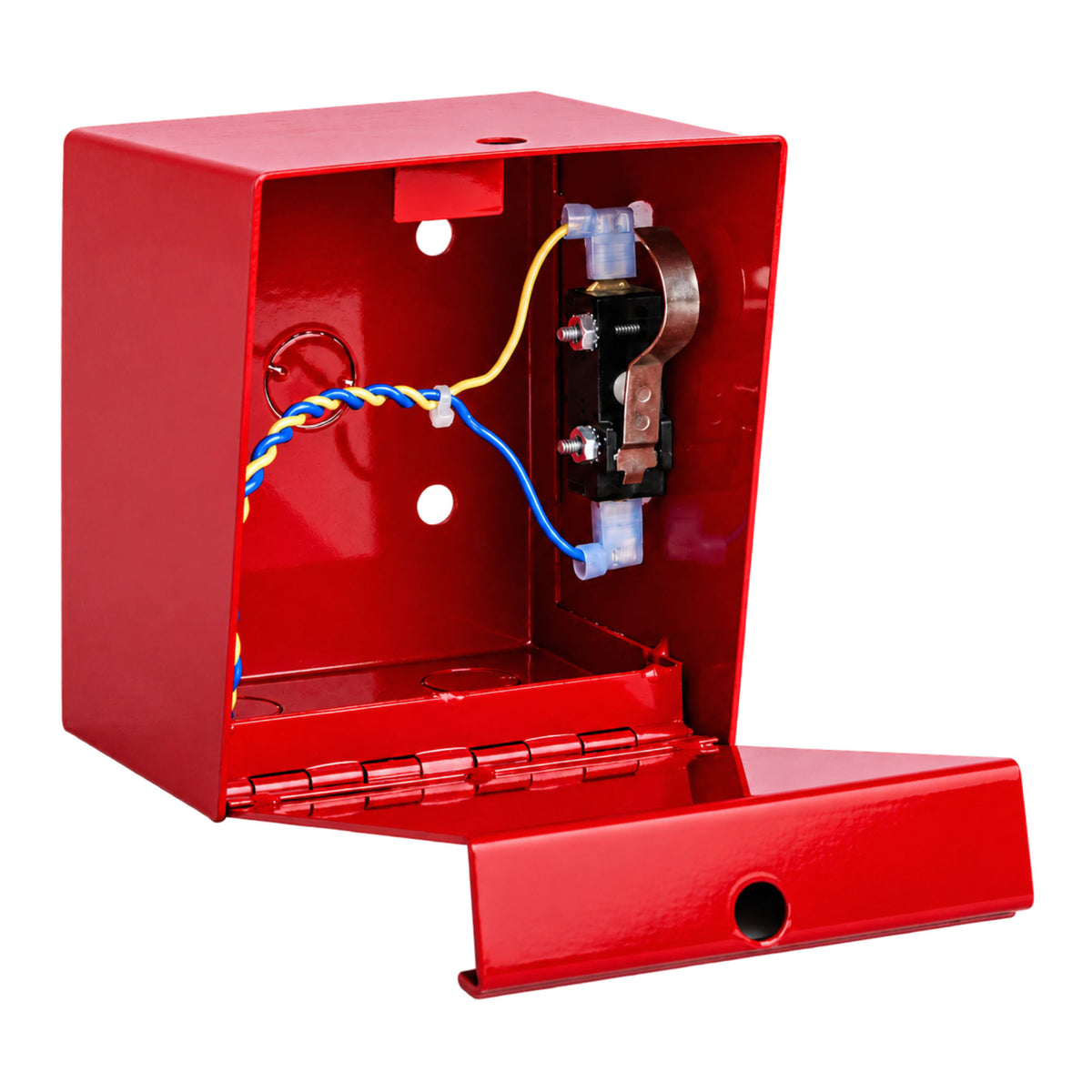

When the fire box is opened, the internal limit switch is activated, allowing the connected gate operator to receive the emergency access signal and open the gate. This provides first responders with a direct means of gaining access without relying on a keypad, transmitter, telephone entry system, or other normal access credential.

The 800-80-25 is intended for integration with compatible gate operators and emergency access circuits. Wiring and gate response should be configured according to the operator's fire access input and local fire department requirements.

Key Features

• Provides fire department emergency gate access
• Accepts a fire department padlock
• Limit-switch activated when the fire access box is opened
• Can signal the connected gate operator to open for emergency entry
• Clearly marked FIRE ACCESS for rapid identification
• Bright red metal enclosure
• Hinged front access door
• Hardwired operation avoids reliance on remotes or access codes
• Designed for automated vehicular gate access systems
• Suitable for commercial, industrial, multifamily, and gated-property entrances

Technical Specifications

• Manufacturer: Ramset
• Part Number: 800-80-25
• Product Type: Fire department emergency access box
• Lock Type: Fire department padlock
• Activation Method: Internal limit switch
• Function: Sends an emergency access signal to the connected gate operator when activated
• Enclosure Color: Red
• Front Marking: FIRE ACCESS
• Application: Automated vehicular gates
• Wiring: Hardwired to the appropriate gate operator control input
• Installation Requirement: Configure according to the gate operator and local fire department access requirements

Conclusion

The Ramset 800-80-25 provides a simple, dedicated emergency access point for fire department personnel at an automated gate. Opening the padlock-controlled fire box activates its internal limit switch, allowing the gate operator to receive the emergency-open command without requiring normal access credentials.

Because fire access requirements can vary by jurisdiction, the installation and approved padlock arrangement should be coordinated with the local fire authority having jurisdiction.
