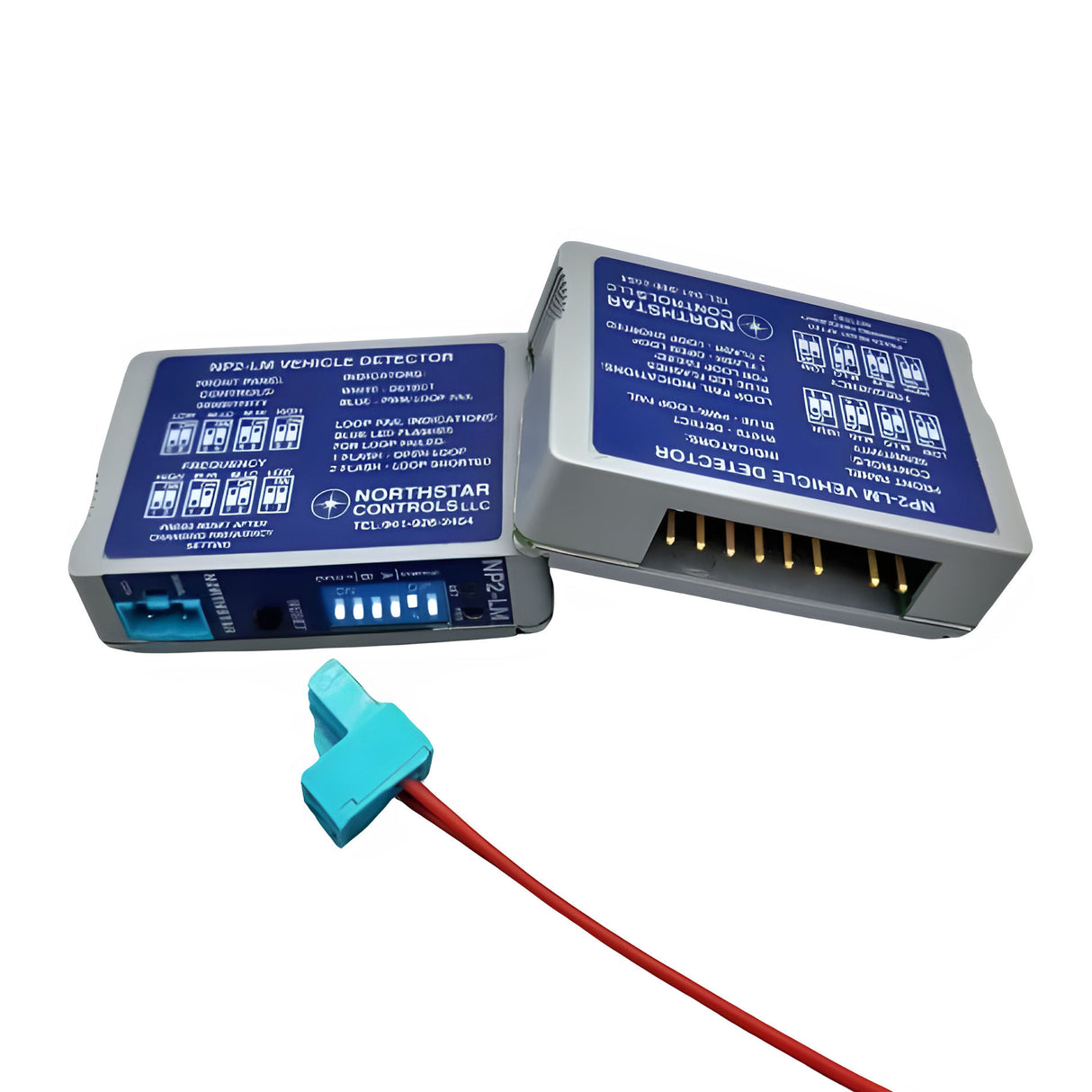

Northstar Controls NP2-LM Plug-In Loop Detector

Seamless Vehicle Detection for LiftMaster Gate Openers

The Northstar Controls NP2-LM Plug-In Vehicle Detector is designed for perfect integration with LiftMaster® gate openers, offering reliable and precise vehicle detection. With 4 selectable sensitivity levels and 4 frequency settings, the NP2-LM adapts to different traffic conditions while preventing interference from nearby loops. Its automatic sensitivity boost ensures the detection of larger or slower-moving vehicles, making it ideal for high-traffic environments. The NP2-LM also includes options for 15-minute, 60-minute, or permanent presence, ensuring that it meets the needs of any access control setup.

With its compact design and solid-state output, the NP2-LM is built for durability and reliability, providing secure access for gated communities, parking garages, and commercial properties.

Key Features

• 4 Selectable Sensitivity Levels: Adjust detection sensitivity for optimal performance in various conditions.
• 4 Selectable Frequencies: Prevent interference from nearby loops and maintain reliable detection.
• Automatic Sensitivity Boost: Detects larger or slower-moving vehicles automatically.
• Presence Time Options: Choose between 15-minute, 60-minute, or permanent presence modes.
• Solid-State Output: 30mA max current sink with protection against over-voltage and polarity reversal.
• Plug-In Compatibility: Designed for easy integration with LiftMaster® gate openers.

Technical Specifications

• Power Requirements: 12-24V DC, 5mA nominal.
• Sensitivity Settings: 4 levels (low to high).
• Frequency Settings: 4 levels (high to low).
• Operating Temperature: -30°F to 180°F (-34°C to 82°C).
• Dimensions: 2.4” H x 2.25” D x 0.8” W.

Conclusion

The Northstar NP2-LM is the go-to solution for vehicle detection in LiftMaster®-controlled gate systems (replacing LOOPDETLM). Its compact design, automatic sensitivity boost, and flexible frequency and sensitivity settings ensure accurate detection in a wide variety of access control environments. Whether you're managing access for a gated community, parking garage, or industrial site, the NP2-LM provides reliable performance and seamless integration.
