Multicode 1099-50 Coax Gate Receiver (Limited Time Sale)
Linear Multicode 109950 Coax Receiver 1-Channel

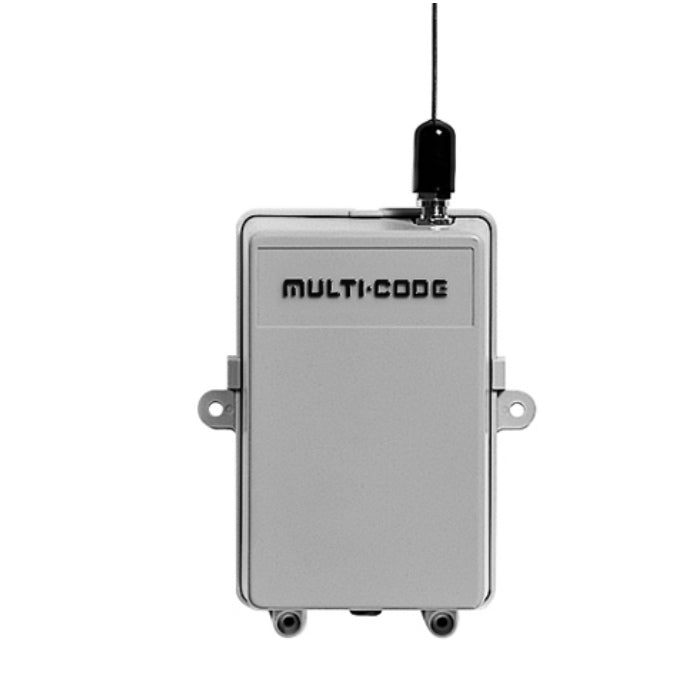

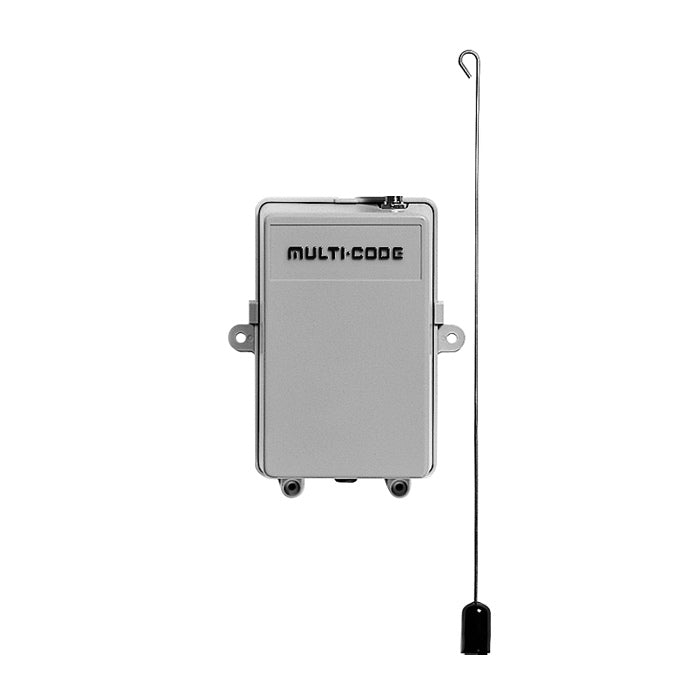

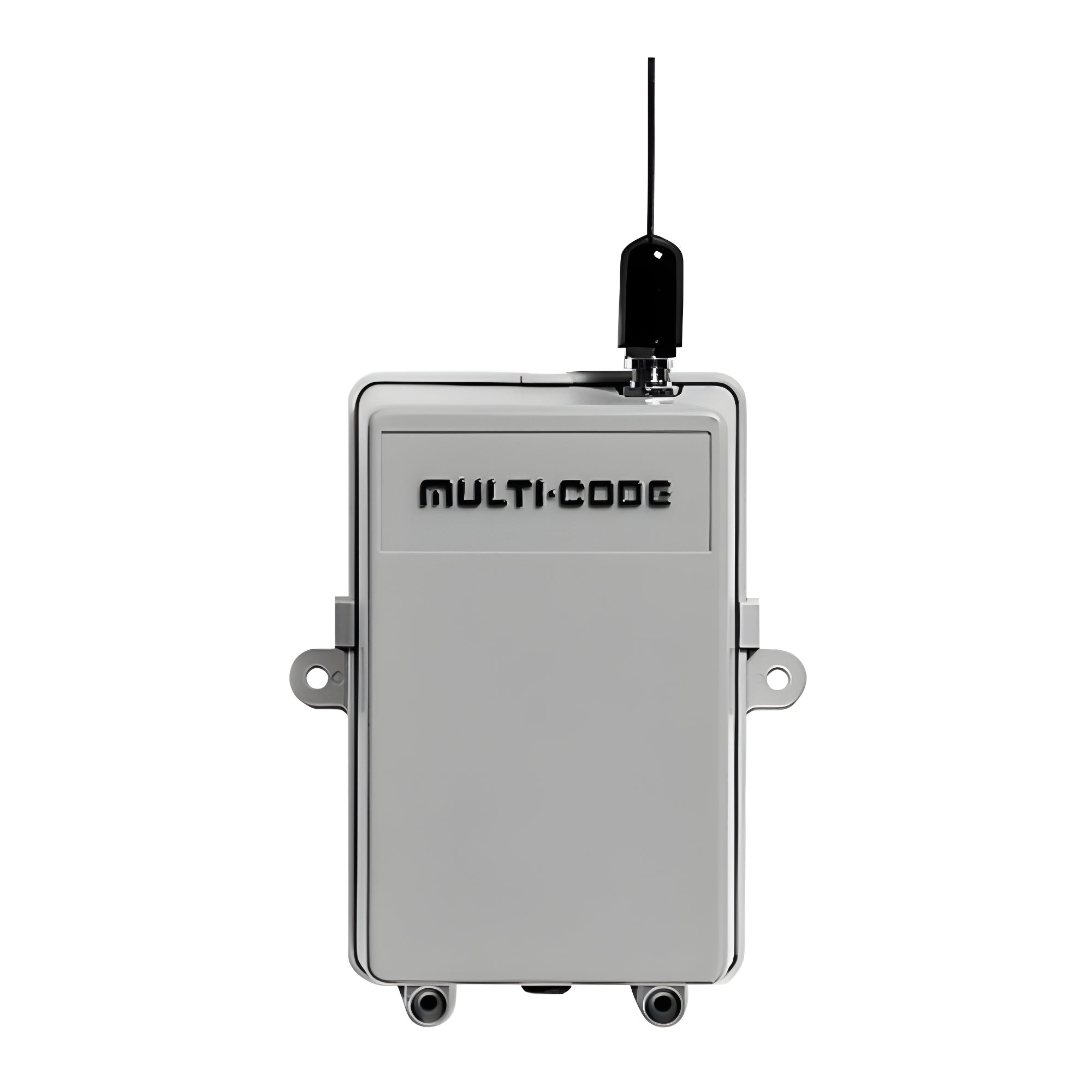

The Model 1099-50 gate receiver 1-Channel, 12-24V. This receiver is designed for use in gate operator applications. An 11-inch wire whip antenna is included for local reception. The whip antenna connects to the receiver’s Type-F antenna connector. Also included is 3-feet of coax cable and a bulkhead connector for remotely mounting the whip antenna in installations where the receiver is mounted inside a shielded metal enclosure, such as a gate operator housing. An external Model 106603 Remote Whip Antenna can also be used with this receiver.
The Model 109950 is a dual frequency receiver. An internal jumper selects either 300 MHz or 310 MHz operating frequency. The 300 MHz frequency is compatible with standard Multi-Code transmitters, the 310 MHz frequency is compatible with the Stanley version Multi-Code transmitters.
The operator supplies 12-24 volt power to the receiver, or the receiver can be powered by a separate AC power transformer or DC power supply. The normally open relay output can switch up to 1 amp @ 30 VAC. A 3-foot, 2-conductor wire lead with spade lugs is provided for attachment to the gate operator’s radio activation terminals.
The receiver is programmed with a 10-position coding switch. When a transmitter set to the same code is activated, the receiver’s output will activate, triggering the gate operator.
- The Model 109950 is compatible with Multi-Code and Stanley transmitters only.
- Operates on 12-24 volts AC or DC power
- One channel
- Whip antenna
- 3-foot antenna coax and bulkhead connector
- Codes: 1,024 (set by dip switches)
- RF frequency: 300 MHz or 310 MHz (jumper selectable)
- Dimensions: 3.625″ W x 5.25″ H x 1.5″ D
- Also known as Linear part number MCS109950, 109930, 1099-30
