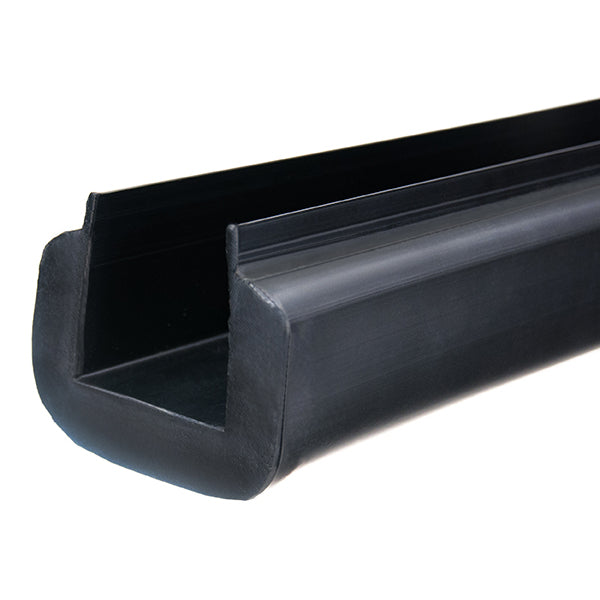

Miller Edge MGS20 Direct Mount Safety Edge Square (Not UL Monitored)
Miller Edge MGS-20 Direct Mount Sensor Square Non-UL
When touched lightly, these pressure sensitive edges immediately send an electrical signal to your controls to stop, and/or reverse operations. Designed for use in a wide variety of applications, these Sensing Edges are extremely durable and can be used indoor or out. They are resistant to water, flame, and common greases and oils.
The MGR20 and MGS20 were designed to minimize installation time while offering customers the three sided protection for the leading edge of the gate. These edge sensors simply clip on to the 2” frame. The rigid base extends beyond the sensitized portion of the edge sensor to form mounting flanges. To mount, drill 1/8” holes through the mounting flanges and into the gate frame every 24 inches. Permanently attach with #10 screws. Run wire to the gate operator and attach to safety reverse terminals per the gate operator installation manual. Test the edge sensor and inform the property owner of their obligation to regularly test. When properly maintained, the MGR20 and MGS20 offer years of trouble free service.
