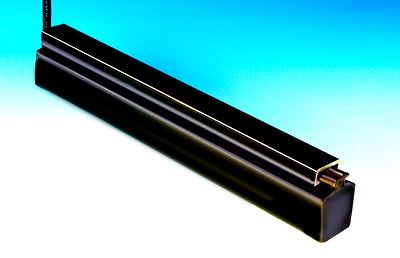

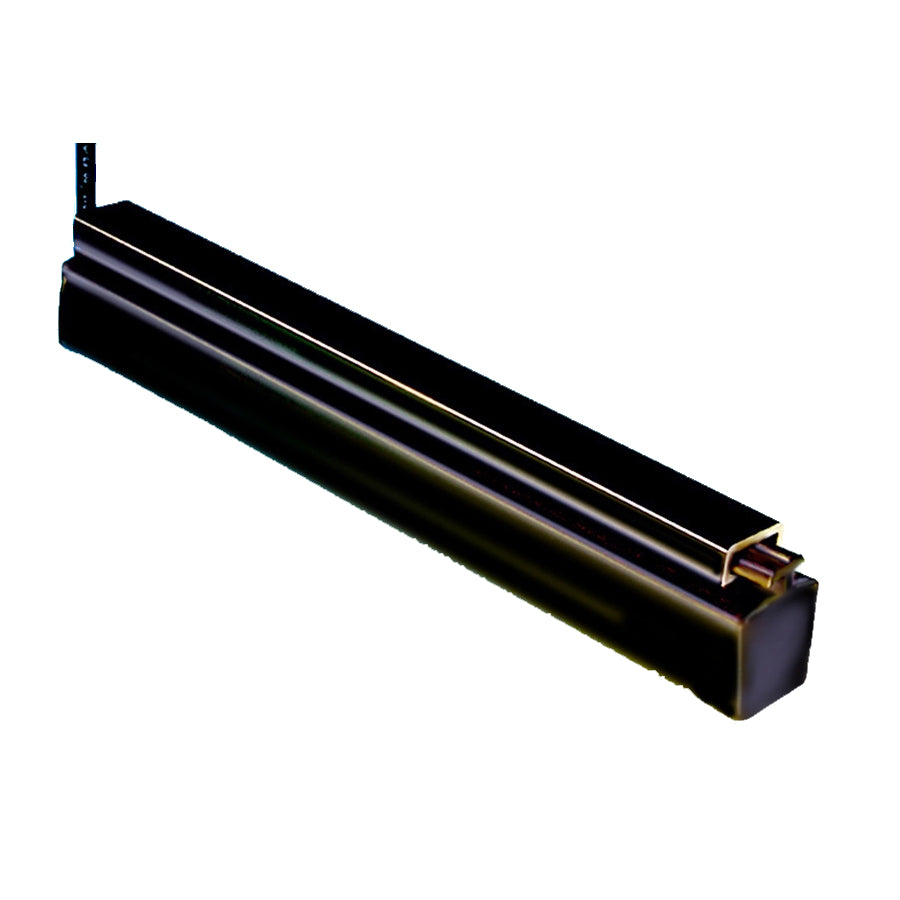

Miller Edge ME120 Sensor With Track Non-UL
When touched lightly, these pressure sensitive edges immediately send an electrical signal to your controls to stop, and/or reverse operations. Designed for use in a wide variety of applications, these Sensing Edges are extremely durable and can be used indoor or out. They are resistant to water, flame, and common greases and oils.
- Color: Black
- Length: 4, 5 or 6ft
- Sensitivity: 4psi - standard
- Activation: Orange arrows indicate direction of sensitivity
- Lead Wire: 2 ft. SJTO 18 gauge - standard
- Electrical Diagram: 2 wire N.O. configuration
- Contact Element: Alumaglas
- Electrical Requirements: 24 volt AC/DC 1/2 amp
- Channel: Black extruded PVC or Aluminum
- Sensing Edge: Extruded flexible PVC
- Temperature Range: -30o F to + 155oF
Miller Edge ME120 With Track Non-UL-Monitoring
Miller Edge ME120 Sensor With Track Non-UL
When touched lightly, these pressure sensitive edges immediately send an electrical signal to your controls to stop, and/or reverse operations. Designed for use in a wide variety of applications, these Sensing Edges are extremely durable and can be used indoor or out. They are resistant to water, flame, and common greases and oils.
- Color: Black
- Length: 4, 5 or 6ft
- Sensitivity: 4psi - standard
- Activation: Orange arrows indicate direction of sensitivity
- Lead Wire: 2 ft. SJTO 18 gauge - standard
- Electrical Diagram: 2 wire N.O. configuration
- Contact Element: Alumaglas
- Electrical Requirements: 24 volt AC/DC 1/2 amp
- Channel: Black extruded PVC or Aluminum
- Sensing Edge: Extruded flexible PVC
- Temperature Range: -30o F to + 155oF
