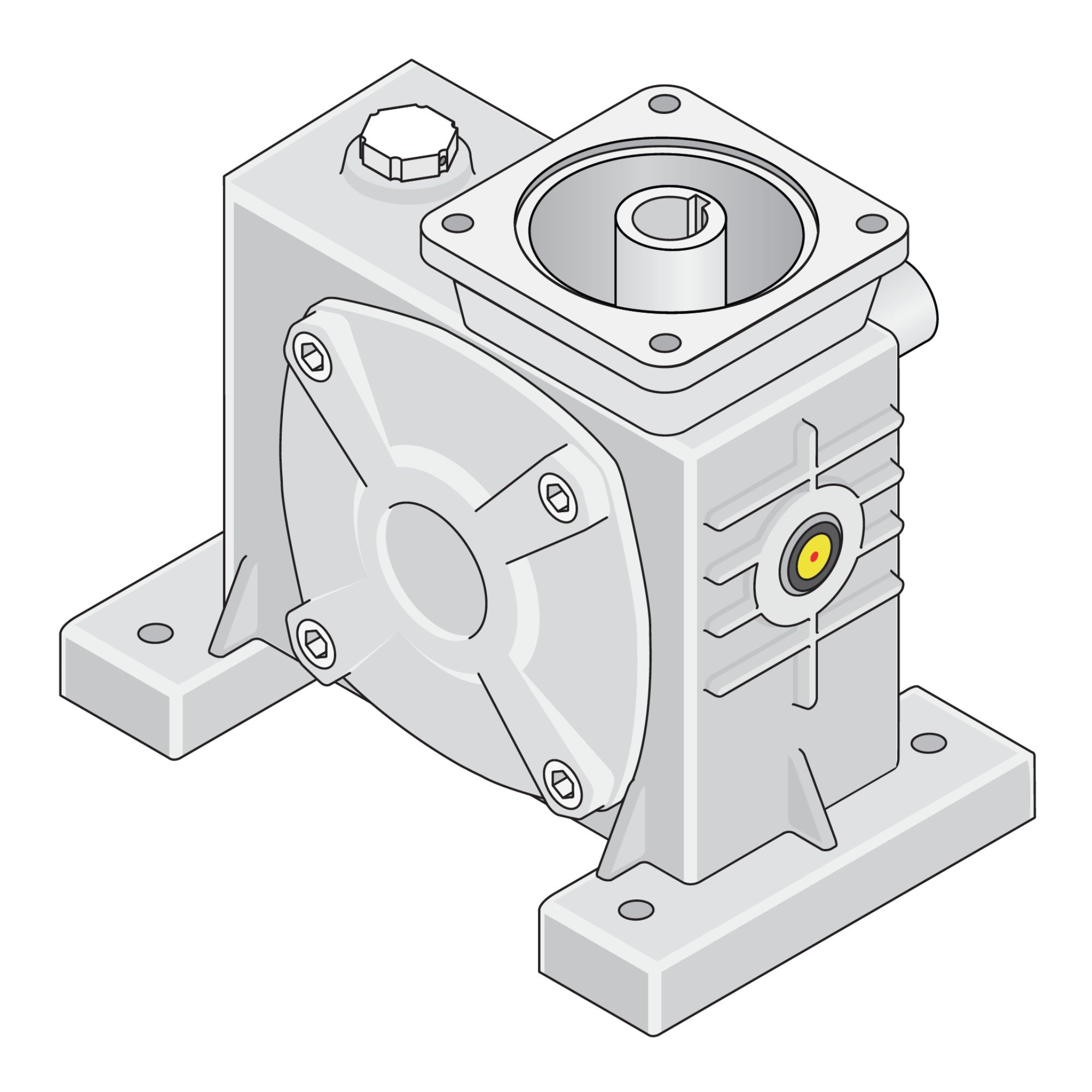

Maximum Controls MX054 Gear Reducer 30:1

Size 60, 30:1 Direct Drive Gearbox for Maximum Controls Slide Operators

The Maximum Controls MX054 Gear Reducer is a Size 60, 30:1 square flange direct drive gearbox used on compatible Maximum Controls slide gate operators. This gearbox transfers motor output into controlled drive movement, helping the operator deliver the torque and speed reduction needed to move the gate through normal open and close cycles.

The MX054 is compatible with MAX 2200 PRO, MAX F18 PRO, MXG 2300, and MXG 2300-ST slide gate operators. A worn or failing gear reducer can contribute to noisy operation, rough travel, binding, inconsistent movement, or loss of proper drive output. Replacing the gearbox with the correct direct drive gear reducer helps restore the mechanical drive connection between the motor and slide gate operator assembly.

Key Features

• Replacement gear reducer for compatible Maximum Controls slide gate operators
• Size 60 gearbox with 30:1 reduction ratio
• Square flange direct drive gearbox configuration
• Compatible with MAX 2200 PRO and MAX F18 PRO slide gate operators
• Compatible with MXG 2300 and MXG 2300-ST slide gate operators
• Helps transfer motor output into controlled gate drive movement
• Common replacement part for worn, noisy, damaged, or slipping gearbox assemblies
• Used in slide gate operator service, repair, and drive system maintenance

Technical Specifications

• Manufacturer: Maximum Controls
• Part Number: MX054
• Product Type: Gear reducer / gearbox
• Gearbox Size: Size 60
• Reduction Ratio: 30:1
• Flange Type: Square flange
• Drive Type: Direct drive
• Application: Slide gate operator drive system
• Compatibility: MAX 2200 PRO, MAX F18 PRO, MXG 2300, and MXG 2300-ST slide gate operators
• Function: Reduces motor speed and transfers torque through the operator drive system
• Use Case: Replacement gearbox for worn, damaged, noisy, or failing direct drive gear reducer assemblies
• Condition: New replacement part
• Verification Required: Confirm operator model, gearbox configuration, and existing part before ordering

Conclusion

The Maximum Controls MX054 Gear Reducer is a direct drive replacement gearbox for compatible Maximum Controls slide gate operators using a Size 60, 30:1 square flange gear reducer. Because gearbox configuration affects motor alignment, torque transfer, and operator movement, matching the MX054 to the correct slide operator model is important before installation.
