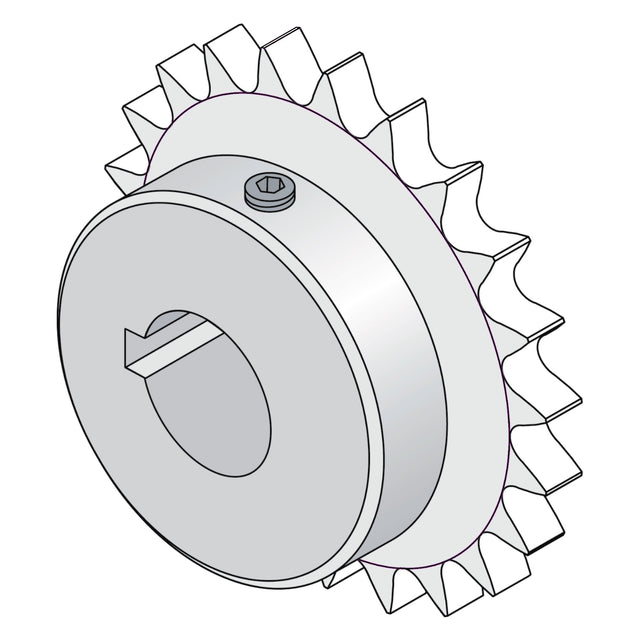

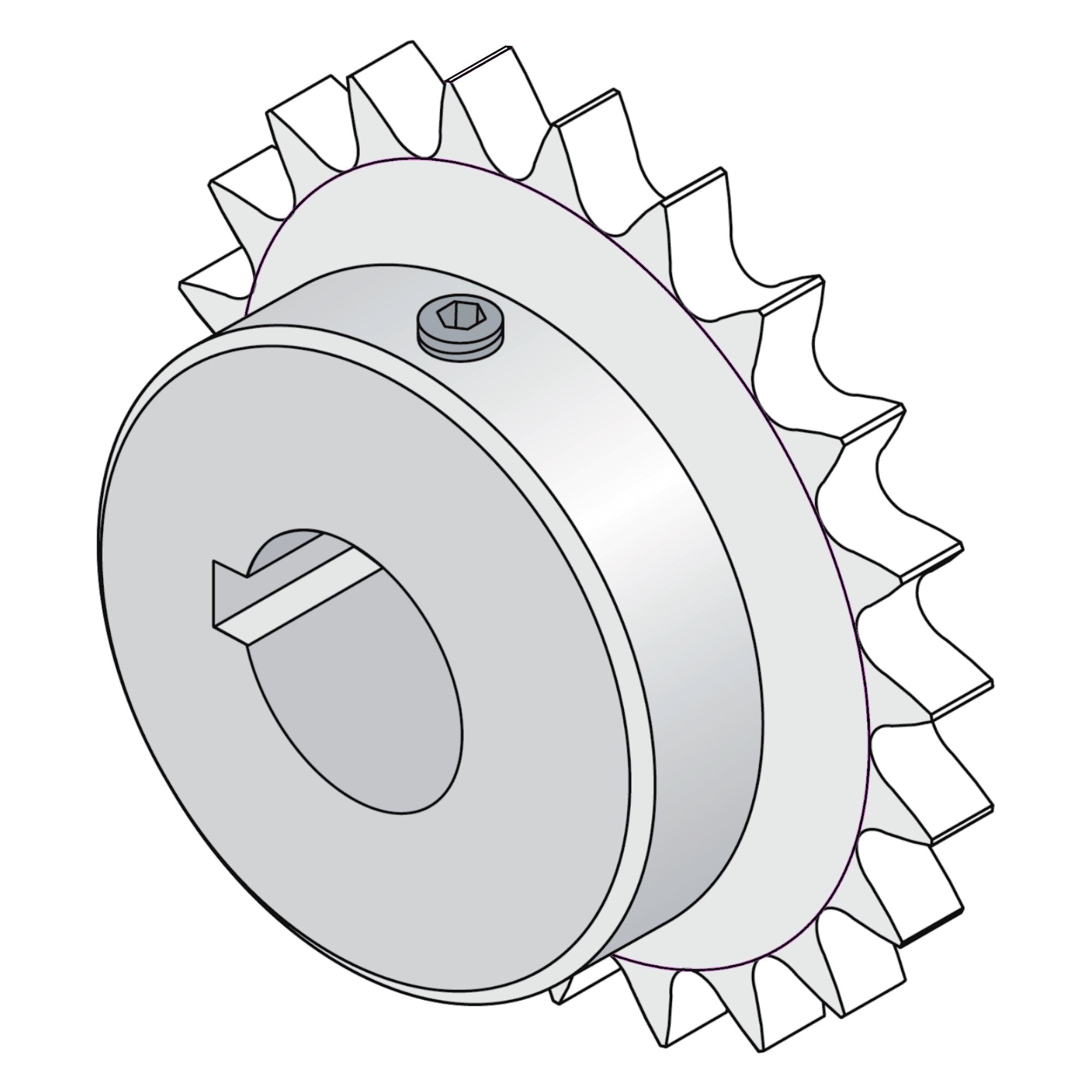

Maximum Controls MX015 Output Sprocket

22-Tooth #40 Chain Drive Sprocket for MAX Slide Gate Operators

The Maximum Controls MX015 Output Sprocket is a 22-tooth replacement drive sprocket for compatible Maximum Controls slide gate operators using #40 roller chain. Mounted on the operator’s gearbox output shaft, the sprocket transfers rotational force from the drive assembly to the gate chain, allowing the operator to move the sliding gate through its open and close cycles.

The MX015 is used with Maximum Controls MAX 1500 PRO and MAX 2200 PRO slide gate operators. A worn or damaged sprocket can cause poor chain engagement, skipping, unusual chain noise, inconsistent gate movement, or accelerated chain wear. Replacing it with the correct 22-tooth sprocket helps restore proper engagement between the operator output shaft and the #40 drive chain.

Key Features

• Replacement output sprocket for compatible Maximum Controls slide gate operators
• Maximum Controls part number MX015
• 22-tooth sprocket configuration
• Designed for use with #40 roller chain
• Compatible with MAX 1500 PRO and MAX 2200 PRO slide gate operators
• Transfers gearbox output to the operator drive chain
• Common replacement for worn, damaged, or poorly engaging sprockets
• Helps restore proper chain tracking and gate drive movement

Technical Specifications

• Manufacturer: Maximum Controls
• Part Number: MX015
• Product Type: Output drive sprocket
• Tooth Count: 22 teeth
• Chain Size: #40 roller chain
• Application: Slide gate operator chain drive system
• Compatible Models: Maximum Controls MAX 1500 PRO and MAX 2200 PRO slide gate operators
• Mounting Location: Gearbox output shaft
• Function: Transfers rotational output from the gearbox to the gate drive chain
• Use Case: Replacement for worn, damaged, slipping, or poorly engaging output sprockets
• Included Component: Output sprocket only
• Not Included: Drive chain, shaft hardware, chain brackets, or idler sprocket
• Condition: New replacement part
• Verification Required: Confirm operator model, tooth count, chain size, and existing sprocket before ordering

Conclusion

The Maximum Controls MX015 Output Sprocket is the 22-tooth #40 chain sprocket used on compatible MAX 1500 PRO and MAX 2200 PRO slide gate operators. Because tooth count and chain size directly affect drive engagement, the existing sprocket and operator model should be matched before replacement.
