Maximum Controls - MAX SUPER ARM 1300 Replacement Linear Actuator

Replacement 24V DC Linear Actuator for Swing Gate Operators

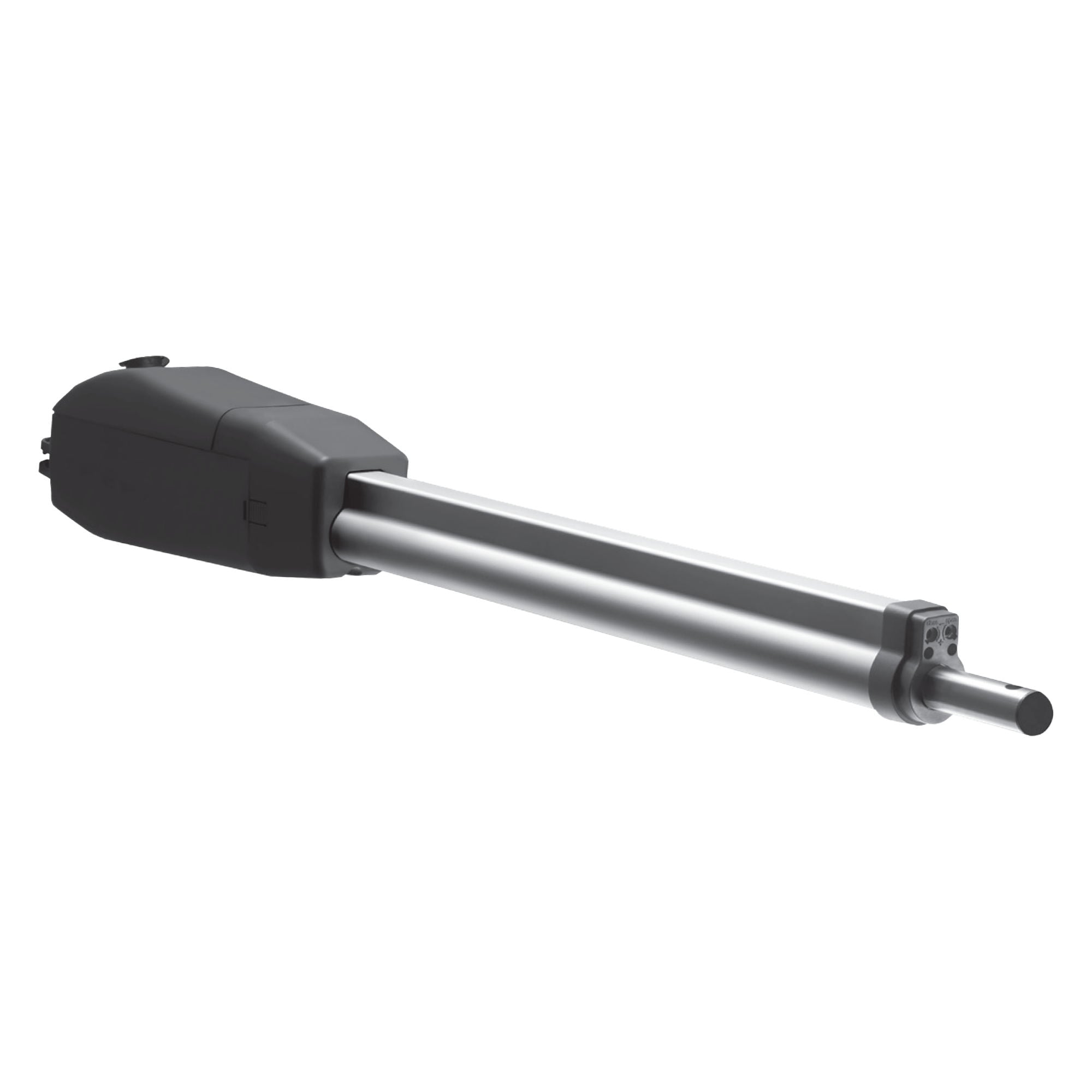

The Maximum Controls MAX Super Arm 1300 actuator is the direct replacement linear arm for MAX Super Arm swing gate operator installations. Manufactured in Germany, the actuator is driven by a 24V DC motor through a

direct gear drive with a 1-1/4 in stainless steel output shaft and no internal chains, belts, or pulleys. Stroke extends from a minimum of 37 in to a maximum of 54.75 in, covering the full range of standard residential swing gate mounting configurations. Gate capacity is 1,300 lbs at 8 ft, 800 lbs at 10 ft, and 600 lbs at 12 ft.

The actuator includes Maximum Controls' patented brake and clutch system, which releases automatically when impact force exceeds 2 tons, such as from a vehicle strike while the gate is in motion, and resets without manual intervention. Both front and rear silver zinc plated mounting brackets are included. Mechanical and electrical gate release functions are built in: to manually release, unlock the key lock and lift the hood; to re-engage, push the hood down and lock. The actuator supports both push-open and pull-open installation orientations and is rated for continuous duty operation from -4°F to 165°F (-20°C to +74°C) without a heater.

Key Features

• Direct replacement linear actuator for MAX Super Arm 1300 swing gate operator installations; manufactured in Germany with 24V DC motor and direct gear drive.
• 1-1/4 in stainless steel output shaft; no internal chains, belts, or pulleys. Stroke range 37 in to 54.75 in.
• Patented 2-ton overload clutch releases on vehicle impact while the gate is in motion and resets automatically without manual intervention.
• Supports push-open and pull-open installation; silver zinc plated front and rear mounting brackets included.
• Continuous duty rated from -4°F to 165°F (-20°C to +74°C) without a heater.

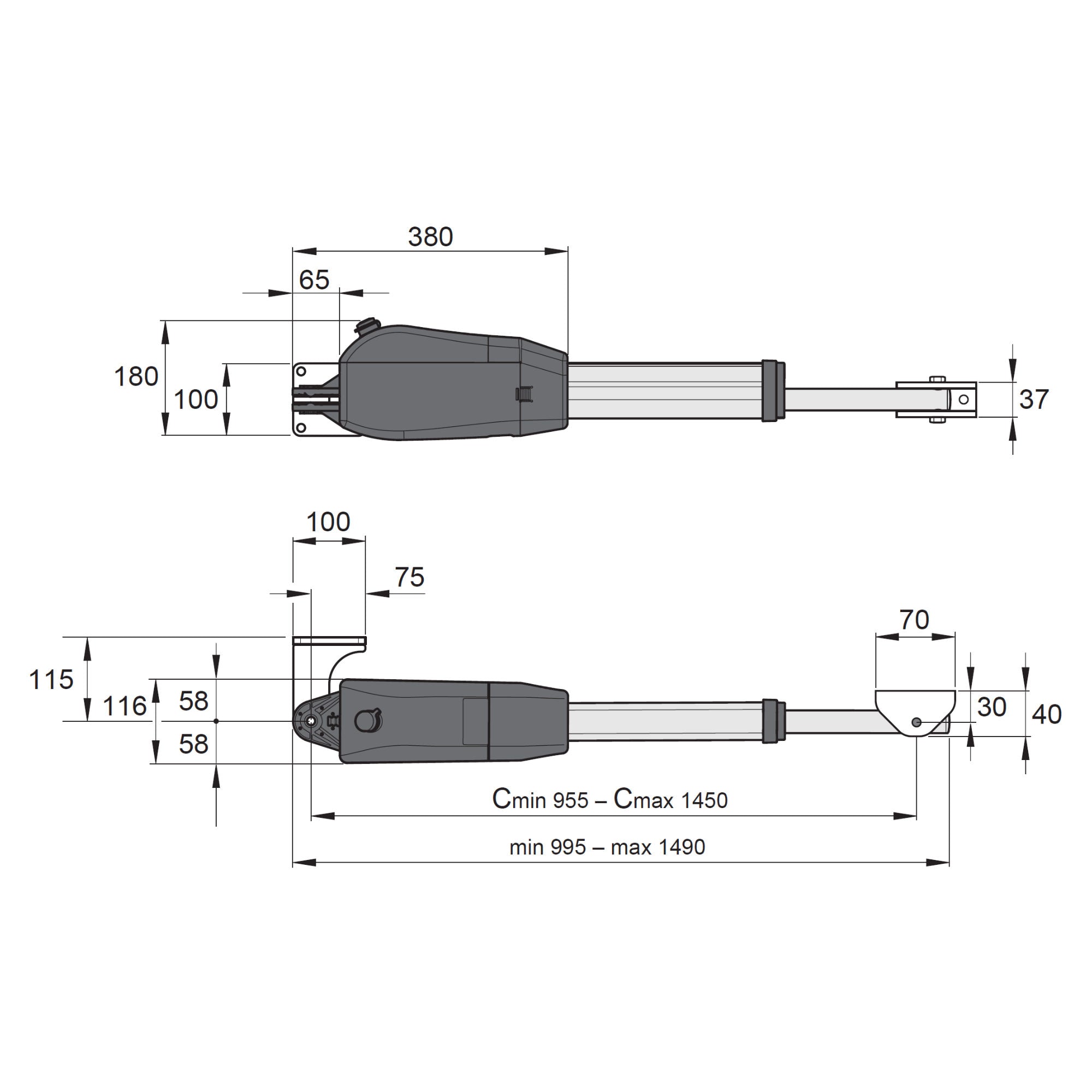

Technical Specifications

• Model: MAX Super Arm 1300 Actuator
• Manufacturer: Maximum Controls LLC (Made in Germany)
• Motor: 24V DC
• Drive System: Direct gear drive; 1-1/4 in stainless steel output shaft
• Actuator Stroke: Min 37 in / Max 54.75 in
• Gate Capacity: 1,300 lbs at 8 ft / 800 lbs at 10 ft / 600 lbs at 12 ft
• Installation Options: Push open or pull open
• Impact Protection: Patented 2-ton overload clutch; auto-resets after release
• Brackets Included: Front and rear, silver zinc plated
• Operating Temperature: -4°F to 165°F (-20°C to +74°C)
• Shipping Weight: 25 lbs
• Compliance: UL 325/991 Class I, II, III, IV; UL 2018; CSA; ETL listed
• Warranty: 2 years or 100,000 cycles, whichever comes first
• Condition: New

Conclusion

This listing is for the MAX Super Arm 1300 actuator only. The AC Control Box, DSP Arm Controller, and batteries are not included. If the existing control box and wiring are intact and functional, this actuator installs directly as a replacement. Confirm your gate leaf dimensions and weight against the capacity chart before ordering. For installations requiring a complete operator system, the full MAX Super Arm 1300 kit is available separately.
