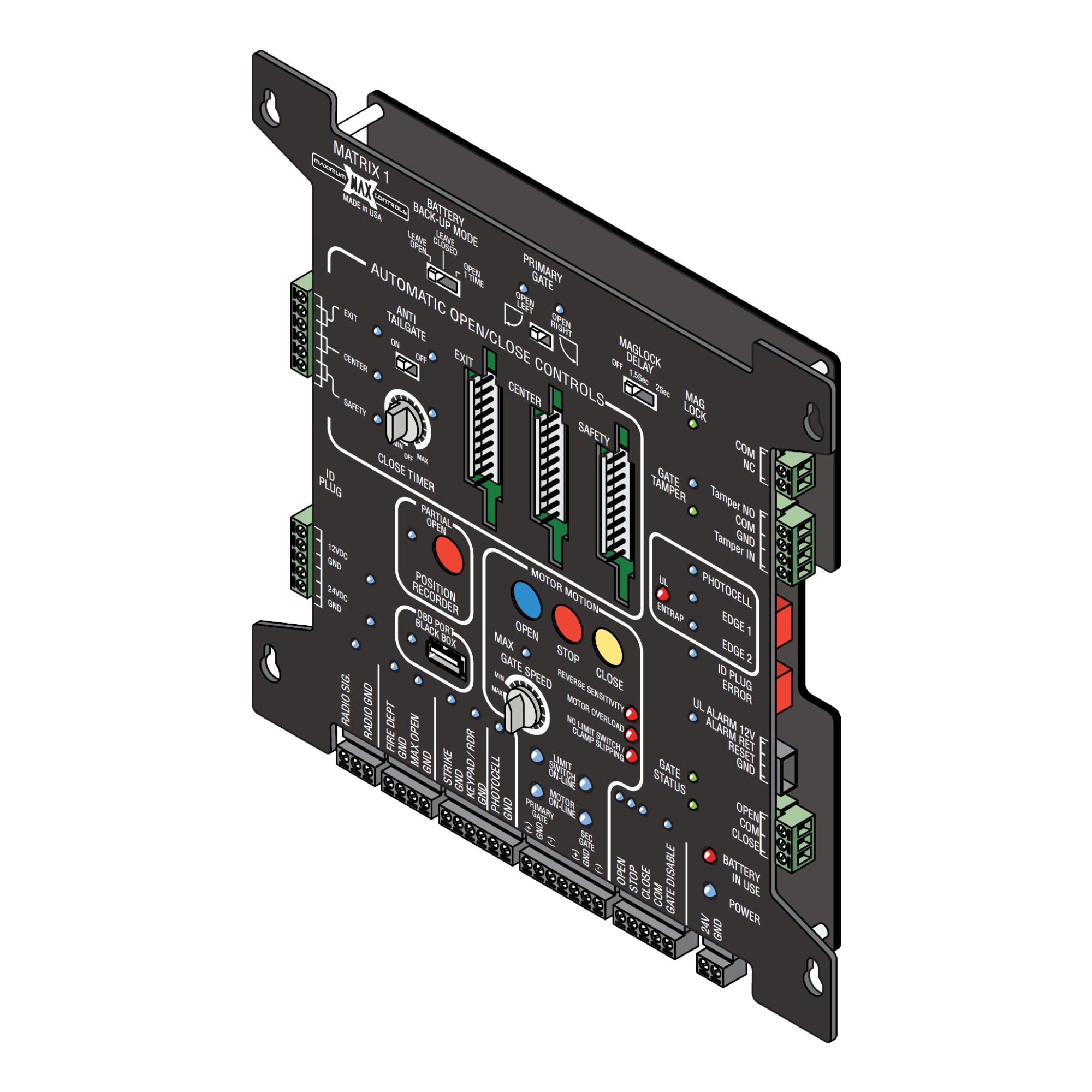

Maximum Controls Matrix 1 Control Board

Matrix 1 Control Board for Gate Operators Manufactured Prior to the 2018 UL 325 Standard

The Matrix 1 is the genuine OEM Maximum Controls control board for all Maximum Controls gate operators manufactured prior to the 2018 UL 325 standard update. Mounted inside the operator housing, the Matrix 1 manages all gate-cycle logic, coordinates with the MAX MC-200 motor controller for motor operation and entrapment protection, interfaces with in-ground loop detectors and access control inputs, and provides the primary programming and diagnostic interface for the installation. The Matrix 1 is the correct factory-sourced replacement when the existing board fails due to lightning damage, water intrusion, power surge, or extended service life.

The Matrix 1 carries a full complement of access and security features for residential and commercial gate applications. Gate speed is adjustable across 16 selectable positions via the MC-200 motor controller. The close timer provides 16 selectable positions from a half-second minimum to 60 seconds maximum. Anti-tailgate and single-pass anti-tailgate modes work in conjunction with in-ground safety loops to prevent unauthorized vehicle entry during the closing cycle. The Gate Disable input locks out all standard opening devices while leaving Fire Department and MAX Open inputs active, operable by timer or on/off switch. The on-board OBD Black Box port logs the most recent 1,000 timestamped events to any USB flash drive for field diagnostics without special software. Solar operation is supported through the POWER/SOLAR IN terminal on the MAX BC-7 battery module with an optional MAX Solar Power Kit. Dual gate configurations use RS-485 wired communication between the primary and secondary operators, with the secondary operator requiring no Matrix 1 board of its own.

Key Features

• Genuine OEM Matrix 1 replacement control board for all Maximum Controls gate operators manufactured prior to the 2018 UL 325 standard; supports single and dual operator bi-parting configurations
• Listed by Intertek (ETL file 4009963) to UL STD 325; certified to CAN/CSA STD C22.2 No. 247; made in USA
• Entrapment protection inputs managed by the MAX MC-200 motor controller; accepts Normally Closed photocells and sensing edges; monitored entrapment devices required per UL 325
• In-ground loop detector rack with Exit, Center, and Safety inputs; plug-in and external loop detectors supported; safety loop wires must be wired in series
• OBD Black Box port logs the most recent 1,000 timestamped events to any USB flash drive for field diagnostics without special software
• Anti-tailgate and single-pass anti-tailgate modes work in conjunction with in-ground safety loops to prevent unauthorized entry during gate closing
• RS-485 communication for wired primary/secondary dual gate configurations; secondary operator requires no Matrix 1 board
• Built-in maglock relay with 1.5-second or 2-second disengagement delay options; Gate Disable input blocks all standard opening devices except Fire Department and MAX Open inputs
• Gate Tamper relay activates on unauthorized forced gate movement; Partial Open feature records a custom stop position for normal access while preserving full open for emergency inputs
• POWER/SOLAR IN terminal on the MAX BC-7 battery module supports solar-powered installations with optional MAX Solar Power Kit
• Made in USA

Technical Specifications

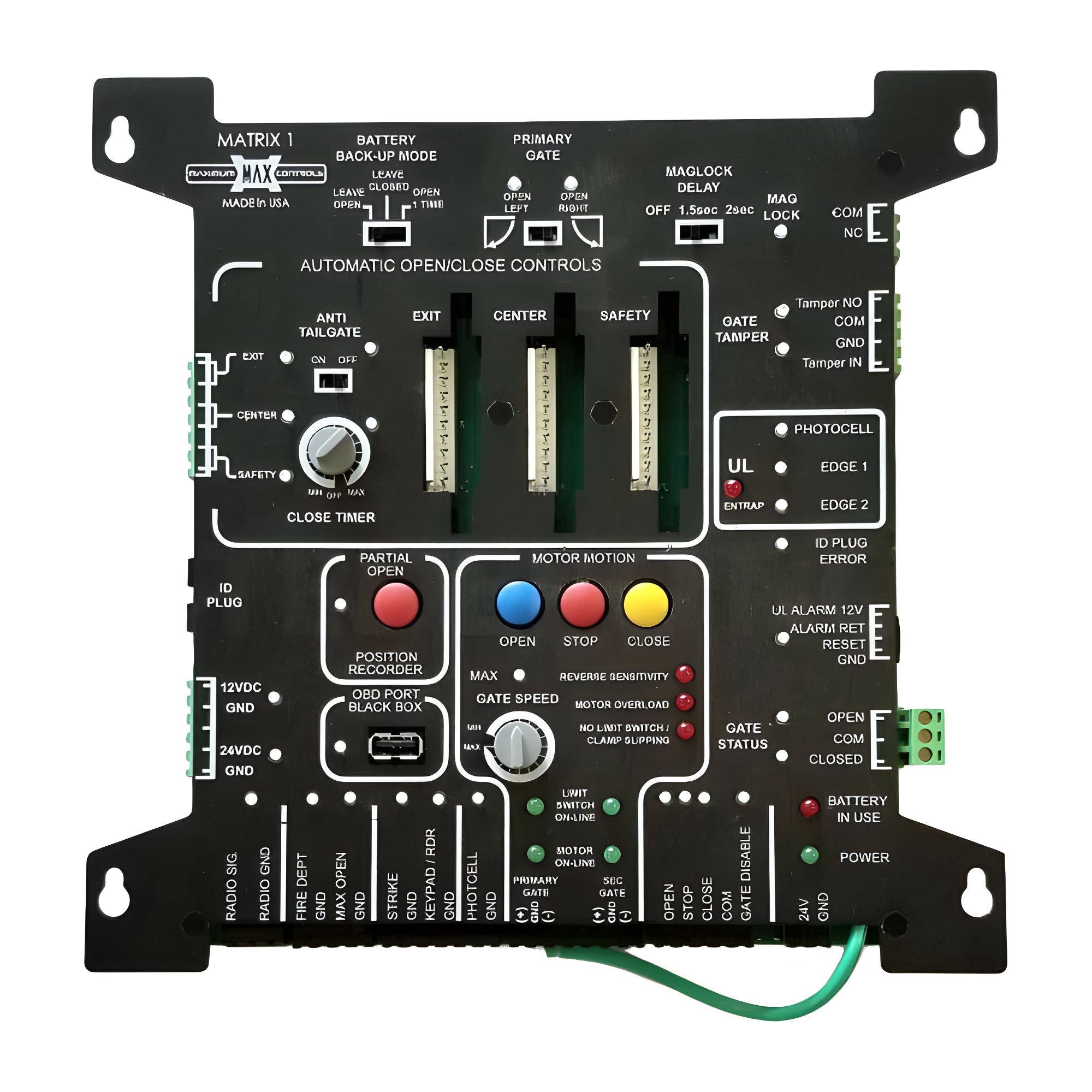

• Part Number: MX028
• Compatible Operators: All Maximum Controls gate operators manufactured prior to the 2018 UL 325 standard
• Gate Type: Slide and Swing
• Listing: ETL listed by Intertek, file 4009963, to UL STD 325; certified to CAN/CSA STD C22.2 No. 247
• Input Power: 115VAC or 230VAC selectable via MAX Toroid 15 Amp box
• DC Power Outputs: 12VDC, 24VDC
• Entrapment Sensor Inputs: Managed by MAX MC-200 motor controller; accepts Normally Closed photocells and sensing edges
• Loop Inputs: Exit, Center, Safety; plug-in and external loop detectors supported
• Dual Gate Communication: RS-485 wired; secondary operator requires no Matrix 1 board
• Solar Input: POWER/SOLAR IN terminal on MAX BC-7 battery module; optional MAX Solar Power Kit required
• Event Log: Up to 1,000 events via OBD Black Box port, USB flash drive download
• Close Timer Range: 0.5 sec to 60 sec, 16 selectable positions; OFF position available
• Maglock Delay Options: 1.5 sec or 2 sec
• Battery Backup Modes: Leave Open, Leave Closed, Open 1 Time
• ID Plug: Model-specific; must be installed or board will not function
• Origin: Made in USA
• Manufacturer: Maximum Controls LLC, Foothill Ranch, CA
• Condition: New Genuine OEM Part

Conclusion

The Matrix 1 is the correct replacement board for Maximum Controls gate operators manufactured prior to the 2018 UL 325 standard. If your operator was manufactured under the 2018 standard or later, the Matrix III is the applicable board and the two are not interchangeable.
