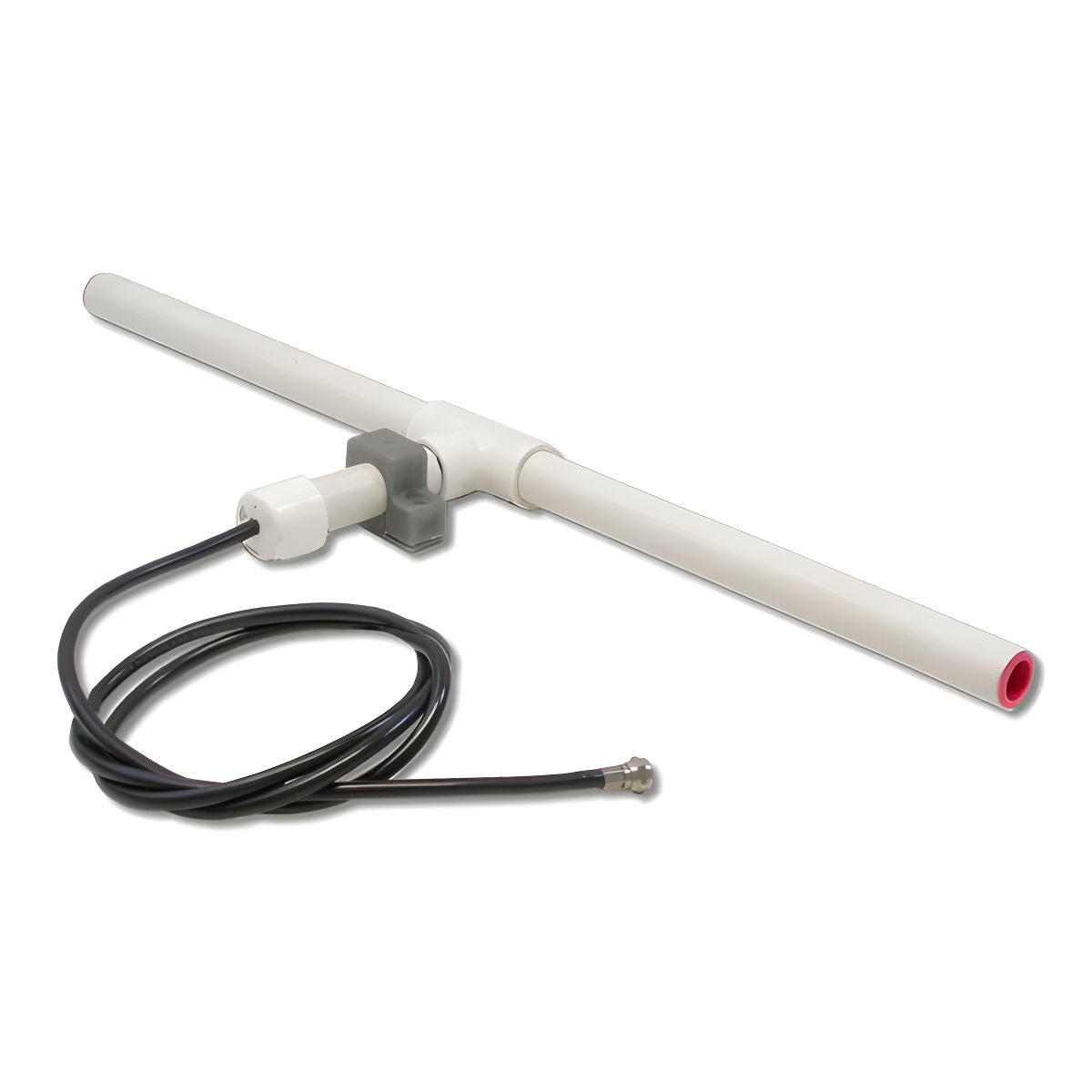

Directional Remote Antenna
This antenna can be connected to the F connector on many Linear receivers to improve their range when they must be located in poor signal reception locations. Usually an increase of 20-30% range can be expected. The versatile EXA-2000 can be mounted either vertically or horizontally.
The Model EXA-2000 Directional Remote Antenna is designed to enhance the radio range of Linear’s receivers. This antenna can be connected to the F connector on many Linear receivers to improve their range when they must be located in poor signal reception locations. Usually an increase of 20-30% range can be expected. The versatile EXA-2000 can be mounted either vertically or horizontally.
NOTE: Generally, the higher the antenna is mounted above ground level, the better the radio range will be.
The EXA-2000 is a 1/2 wave, center fed, antenna composed of two parts: an antenna assembly with a ten-foot, 75-ohm coaxial cable with an F connector and two mounting brackets. The cable connects to the F connector on the receivers. If the antenna must be mounted further than ten feet from the receiver, an additional extension cable of 15 feet may be used for a maximum cable run of 25 feet. Because of the cable resistance, the performance of the EXA-2000 may be degraded by using more than 25 feet of cable.
Features
- Compatible with all Linear receivers with Type F antenna connector
- Receives signals in 288 to 320 MHz range
- Directional remote antenna
- Includes 10 feet of coax
- Clamp for mounting
- Dimensions: 21” W x 5” H x 1.5” D
LINEAR EXA-2000 DIRECTIONAL ANTENNA

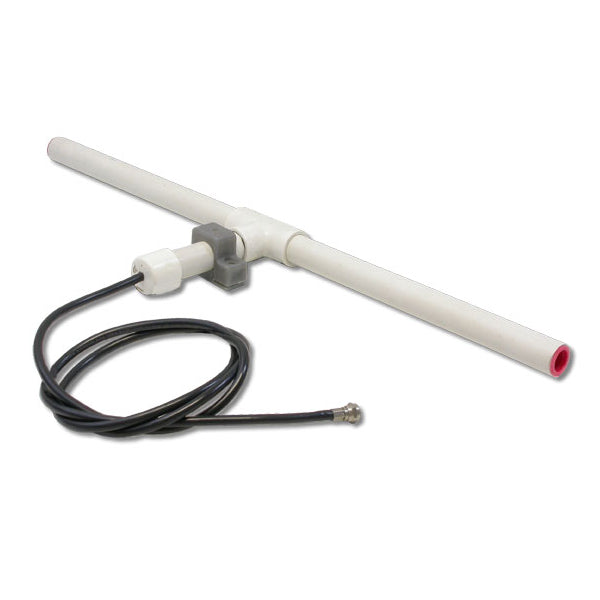

Directional Remote Antenna
