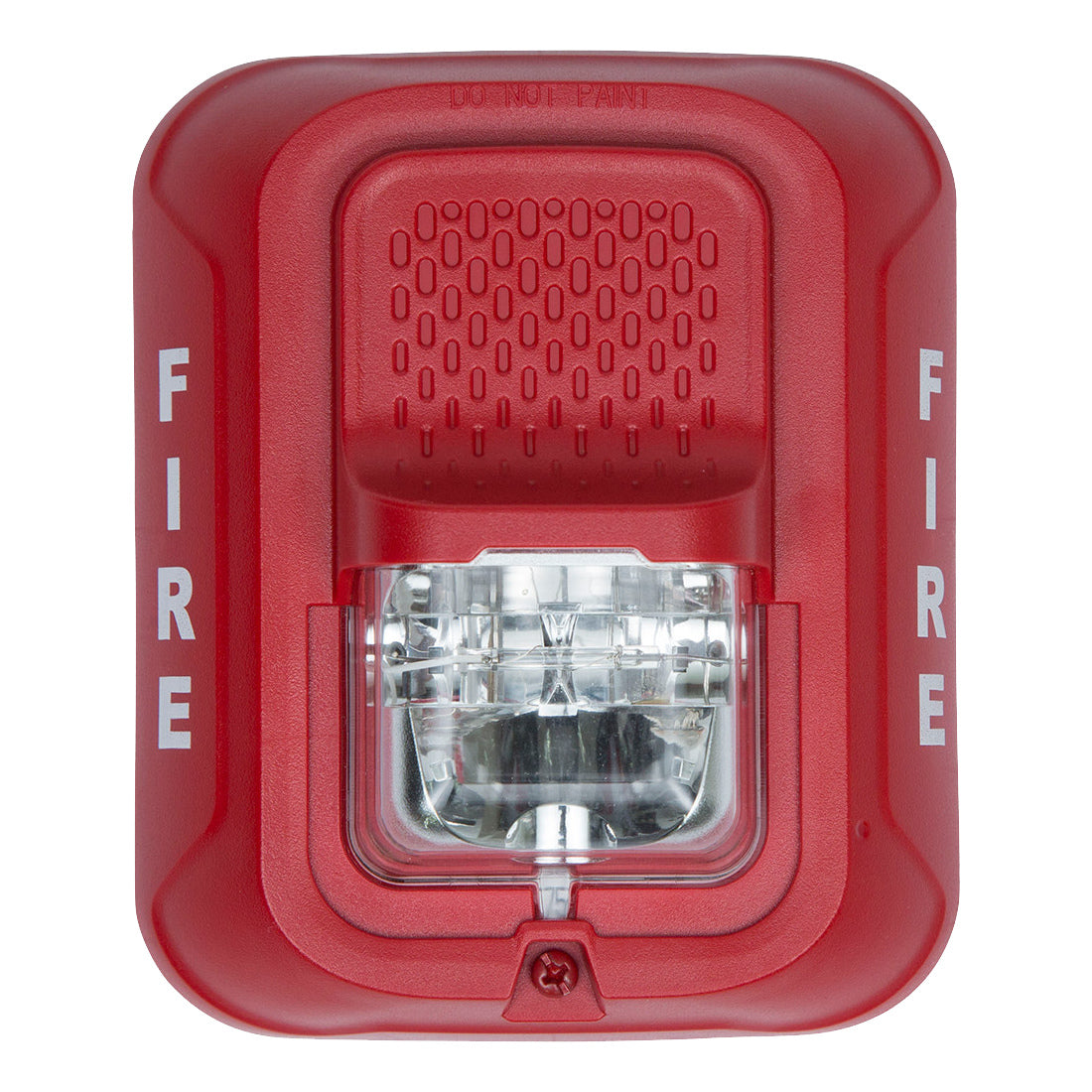

Liftmaster LMS24R Fire Rated Red Strobe, 2 Wire 12/24VDC
Liftmaster LMS24R Fire Rated Red Strobe, 2 Wire 12/24VDC is backordered and will ship as soon as it is back in stock.
Core Details
| Product Type | Emergency Access Device |
| Application Type | Warehouse | Fire Safety |
| Installation Type | Commercial | Industrial | HOA |
| Voltage | 12-24V |
| Power Type | DC |
| Mounting Type | Surface Mounted |
| Operating Temperature | 32°F to 120°F |
Liftmaster LMS24R Fire Rated Red Strobe, 2 Wire 12/24VDC
Description
Description
LiftMaster LMS24R Fire Rated Red Strobe
The LiftMaster LMS24R Fire Rated Red Strobe is a high-visibility, two-wire 12/24VDC emergency warning strobe designed for fire-rated and safety access applications. Built for reliability and compliance, this unit provides clear visual alerts in emergency situations, making it ideal for gate systems, access control areas, and building alarm integrations.
Key Features
- Auto Voltage Selection: Automatically adjusts to 12V (15 cd) or 24V (30 cd) operation
- Field-Selectable Candela Settings: Choose from 15, 30, 75, 95, 110, 135, or 185 candela
- Adjustable Horn Output: Rotary switch for tone selection and two volume settings
- Indoor Wall Mount Design: Optimized for wall installation in controlled environments
- Reliable Operation: 1 flash per second at regulated voltage for consistent performance
- Wide Operating Range: 12VDC or 24VDC input with 8–33V tolerance
- Durable Build: Fire-rated construction suitable for security and emergency systems
Technical Specifications
- Part Number: LMS24R
- Voltage: 12/24VDC, auto-sensing
- Candela Options: 15, 30, 75, 95, 110, 135, 185
- Flash Rate: 1 flash per second
- Sound Output: Selectable tone and 2 volume levels
- Mounting Type: Indoor wall mount only
- Operating Temperature: 32°F to 120°F (0°C to 49°C)
- Humidity Range: 10%–93% non-condensing
- Dimensions: 5.6" L × 3.46" W × 1.91" D (143 mm × 119 mm × 49 mm)
Conclusion
The LiftMaster LMS24R Fire Rated Red Strobe delivers dependable, high-intensity visual alerts for fire and emergency applications. Its flexible voltage operation, adjustable brightness, and compact wall-mount design make it an ideal choice for secure gate and building alarm systems.
