LiftMaster LA500SLRHARN Solar Harness for LA500

33Ah Battery Wiring Kit for LA500 Solar Applications

The LiftMaster LA500SLRHARN Solar Harness Kit is a replacement and installation harness for LiftMaster LA500 gate operator solar applications using 33Ah batteries. This harness is required for 33Ah solar configurations only and is used to connect the larger battery setup and solar panel wiring to the LA500 control system.

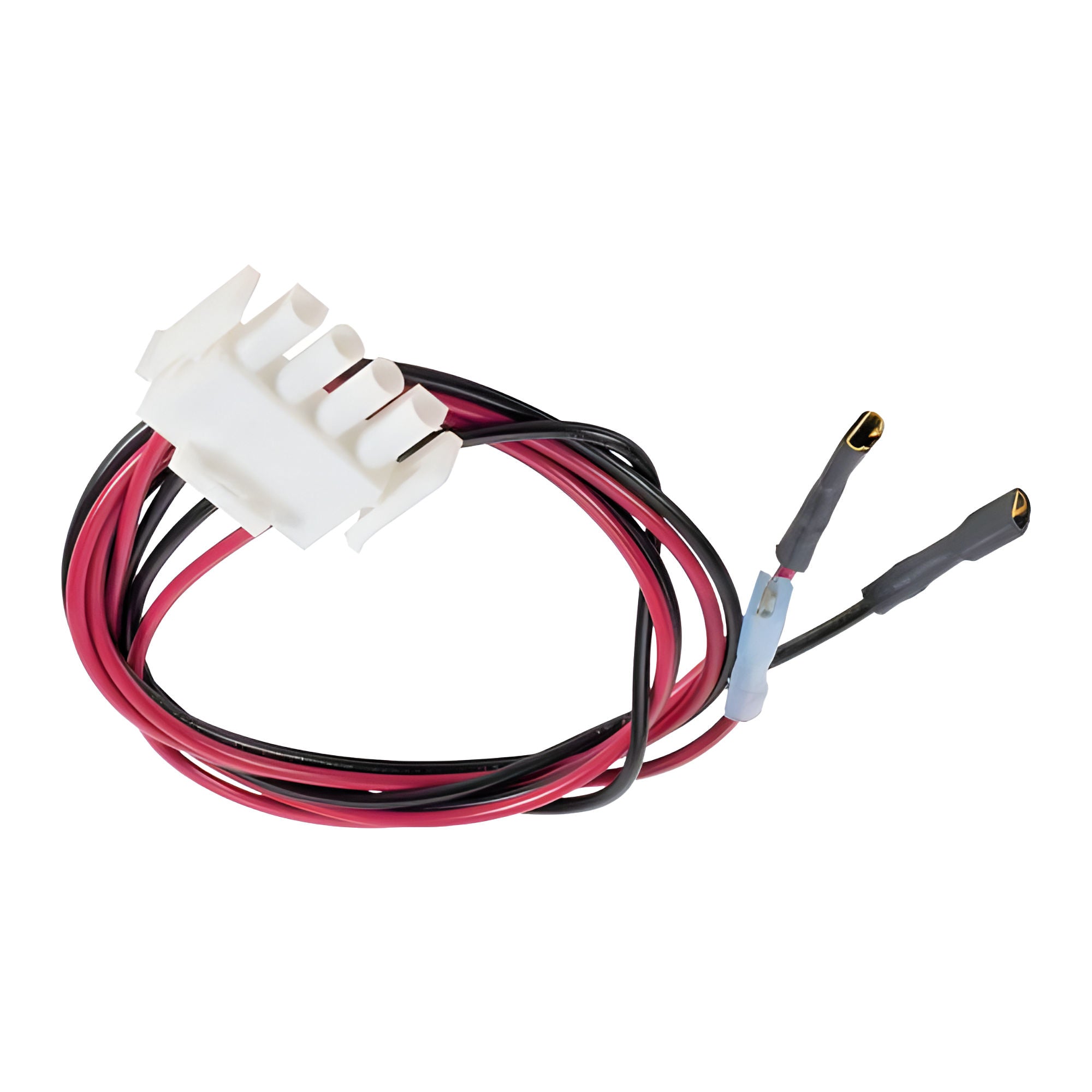

The kit includes the solar harness and battery jumper wire needed for the 33Ah battery layout. The harness has long red and black wires for the 33Ah battery connections and shorter red and black wires for the solar panel connections. This allows the LA500 solar system to be wired according to LiftMaster’s specified battery and solar panel configuration.

The LA500SLRHARN is intended for solar-powered LA500 installations where higher-capacity 33Ah batteries are being used instead of the standard battery configuration. It is commonly used during solar conversions, battery box updates, replacement harness repairs, or service work on LA500 gate systems configured for 33Ah battery backup.

Solar panels, batteries, gate operator, and control box are not included. Installation should follow the LA500 manual and LiftMaster solar harness wiring diagram, and all AC, solar, and battery power must be disconnected before service.

Key Features

• LiftMaster solar harness kit for LA500 gate operators
• Model LA500SLRHARN
• Required for 33Ah LA500 solar applications only
• Supports LA500 solar configurations using 33Ah batteries
• Includes battery jumper wire
• Includes solar harness with battery and solar panel leads
• Long red and black wires connect to the 33Ah battery setup
• Short red and black wires connect to the solar panel wiring
• Used for solar conversions, service repairs, and 33Ah battery configuration updates
• Supports LiftMaster’s 20W, 40W, and 60W solar panel wiring layouts when configured according to the manual
• Designed for use with the LA500 large metal control box solar wiring layout
• Batteries and solar panels sold separately

Technical Specifications

• Manufacturer: LiftMaster
• Model / Part Number: LA500SLRHARN
• Product Type: Solar harness kit
• Compatible Operator: LiftMaster LA500 gate operator
• Application: 33Ah solar battery applications only
• Battery Configuration: For LA500 solar systems using 33Ah batteries
• Harness Connections: Long red and black wires for 33Ah battery connections
• Solar Panel Connections: Short red and black wires for solar panel connections
• Included Components: Solar harness and battery jumper wire
• Solar Panel Reference: LiftMaster diagram illustrates 10W 12V panels arranged for 20W, 40W, or 60W solar installations
• Control Box Reference: LA500 large metal control box solar application wiring
• Not Included: LA500 gate operator, control box, batteries, solar panels, mounting hardware, or additional wiring not listed by LiftMaster
• Power Safety Requirement: Disconnect AC, solar, and battery power before servicing
• Installation Requirement: Electrical connections must be made by a qualified individual
• Installation Note: Refer to the LA500 manual and LiftMaster solar harness diagram for complete wiring instructions

Conclusion

The LiftMaster LA500SLRHARN Solar Harness Kit provides the required wiring harness and jumper wire for LA500 gate operator systems configured with 33Ah batteries in solar applications. It is a specific harness for 33Ah LA500 solar setups and should be installed according to LiftMaster’s wiring diagram with all power sources disconnected before service.
