Liftmaster IHSL24UL Industrial Gate Operator (Limited Time Sale)

Liftmaster IHSL24UL Continuous Duty, 24VBLDC Industrial Slide Gate Operator

Download Spec Sheet Download Manual

Previous model SL595UL

Features

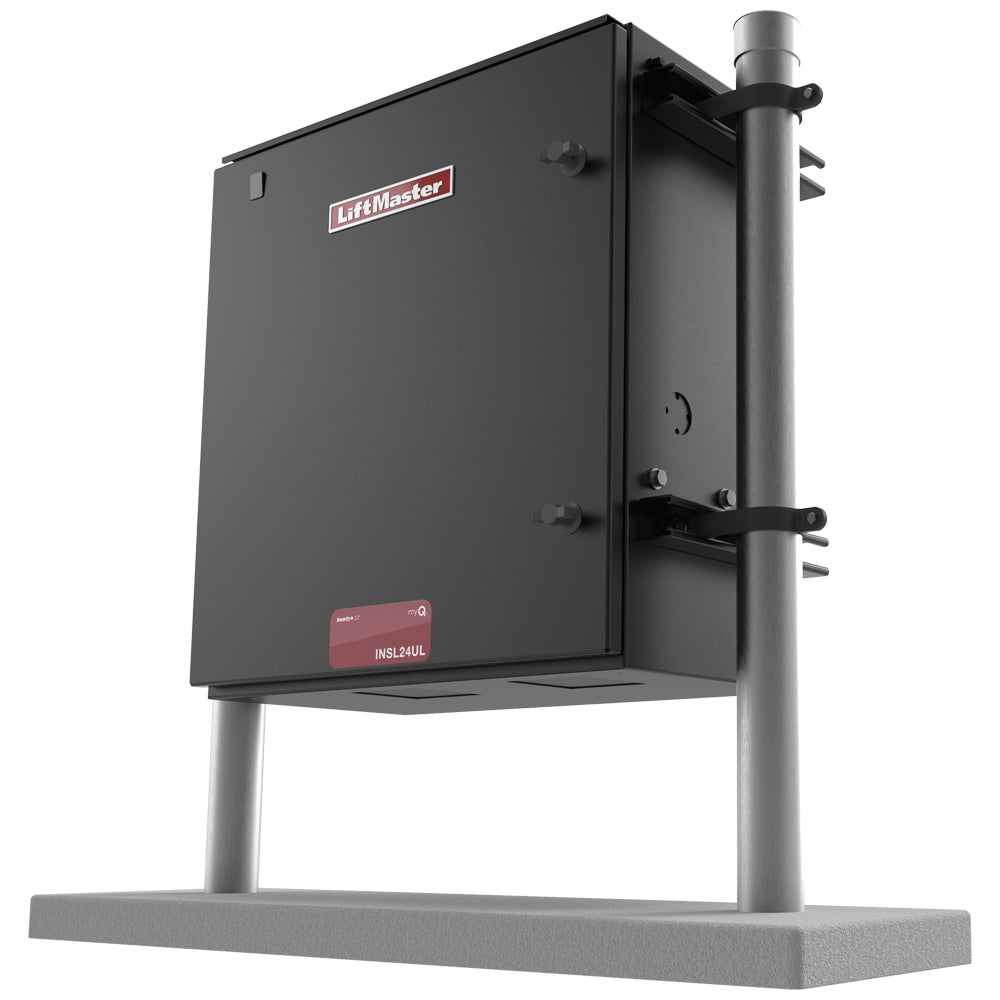

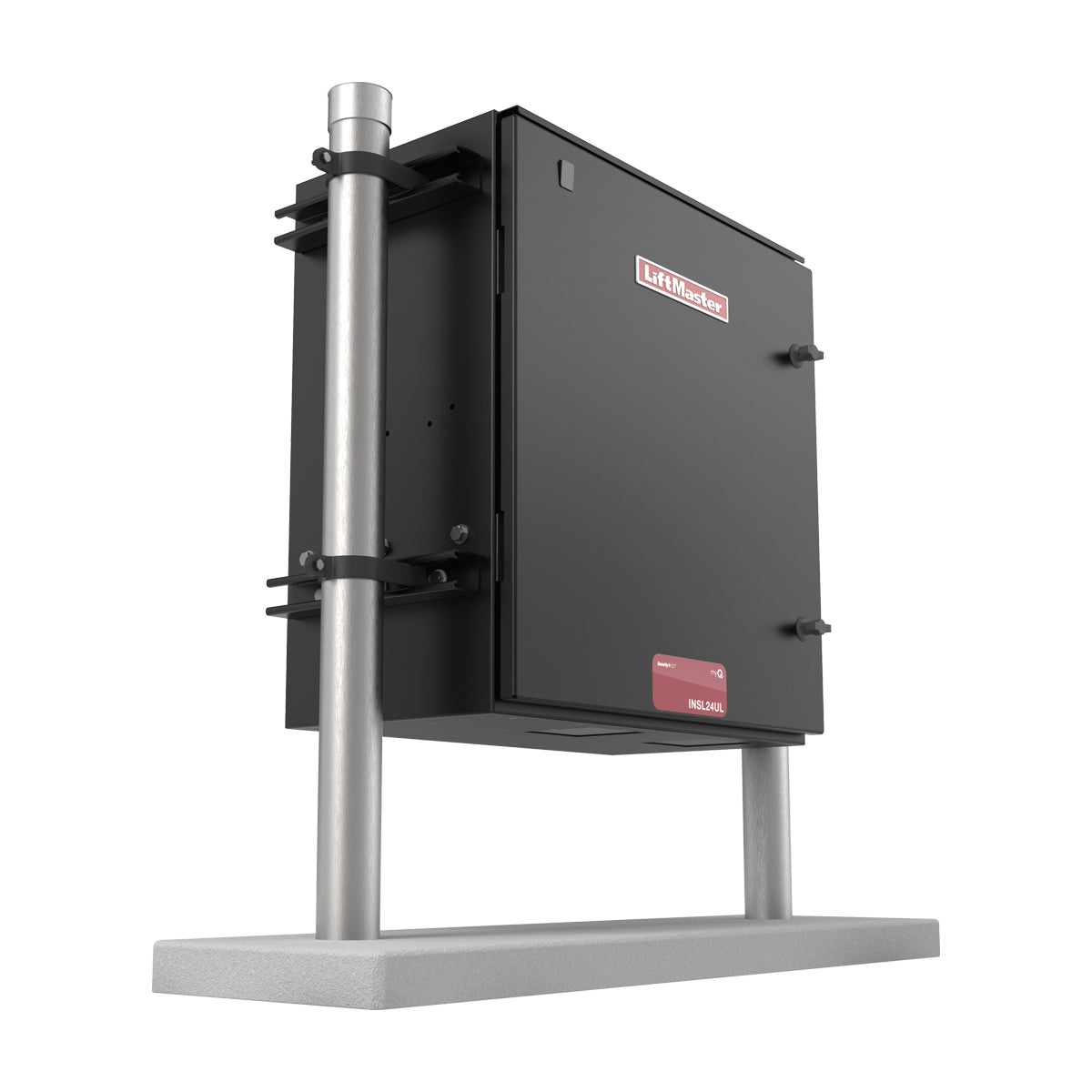

• Metal base shown in pictures is not included
• Move Industrial gates up to 5,500 lbs. at 1 ft./sec.
• Continuous-duty gate operation built with a custom industrial oil-bath gear box, size 70.
• Custom Industrial brushless DC motor.
• Enclosure Lockable, Weatherproof 14g NEMA 3R Steel Cabinet.
• Variable cycle speed adjusts to meet application needs from .5 ft./sec. to 1 ft./sec.
• Smooth start/stop operation and mid-travel reversal extend operator hardware life.
• #50 industrial chain provides a pull strength of 2x the gate weight.
• Manual Disconnect with direct mechanical linkage with latch.

Smart

• Powered by myQ® for full insight and control over community and facility access points. Improve warehouse efficiency and productivity with Smart Facility Access. Monitor and control multiple communities with Smart Community Access.
• Four programmable auxiliary relays accommodate more accessories.
• Wireless dual-gate communication synchronizes gate operation and eliminates costly trenching; set speed independently if needed.

Security

• Quick close and anti-tailgate quickly secures property, preventing unauthorized access.
• Posilock® automatically closes the gate when it is pushed from the closed limit.
• UL® listed gate operator with monitored safety entrapment protection devices.

Included Accessories

• LMRRUL Monitored Retro Reflective Photo Eye reliable retro-reflective photo eye now with heater and wide beam, engineered to stay aligned; max. Range: 50 ft.
• S505AL Monitored Small Profile resistive edge pressure-sensitive edge senses obstructions.

Mechanics

• 24VDC brushless continuous-duty motor.
• Operator Duty Rating: high-cycle, high-temperature continuous duty.
• Direct Drive
• Chain: #50 Industrial.

Power

• 120/240V single-phase
• Accessory Power: 24VDC 1 A max. output; switched and unswitched power.
• Optional Kit (3PHCONV)
• to convert a 3-phase input voltage of 208/240/480/575VAC to an output voltage of 120VAC.
• Solar-Ready, Ultra-Reliable System delivers power when and where you need it (LMRRUL/LMTBUL - heater option not recommended for solar applications).

Industrial Grade Design

• Chassis: Constructed with 1/4 in. Steel, Powder Coated.
• Housing: powder-coated, 14-gauge steel oil -tight, weatherproof NEMA 3R lockable cabinet
• UL Usage Classification: II, III, and IV

Dimensions

• Height: 30.1”.
• Width: 27.5”
• Depth: 17.1”

Standard Features

• Inherent Reversing Sensor detects obstructions and reverses gate.
• Posilock automatically closes the gate when it is pushed from the closed limit.
• Manual Disconnect allows gate to be opened manually when released.
• Monitored Safety Inputs 3 main board, 3 expansion board.
• Security+ 2.0® On-Board Radio Receiver: up to 50 remote controls (unlimited with 811LMX/813LMX).
• LED Diagnostic Display simplifies installation and troubleshooting
• Programmable Auxiliary Relays: 4 relays make adding additional features easy.
• HomeLink® Compatible version 4.0 or higher (may require an external adapter depending on the model and year of your vehicle. Visit HomeLink.com for additional information).

Basic Specifications

• Max gate size: 90ft
• Max gate weight: 5,500 lbs. at 1 ft./sec.
• Solar ready
• Smartphone capable
• Limited parts warranty provided by Liftmaster
