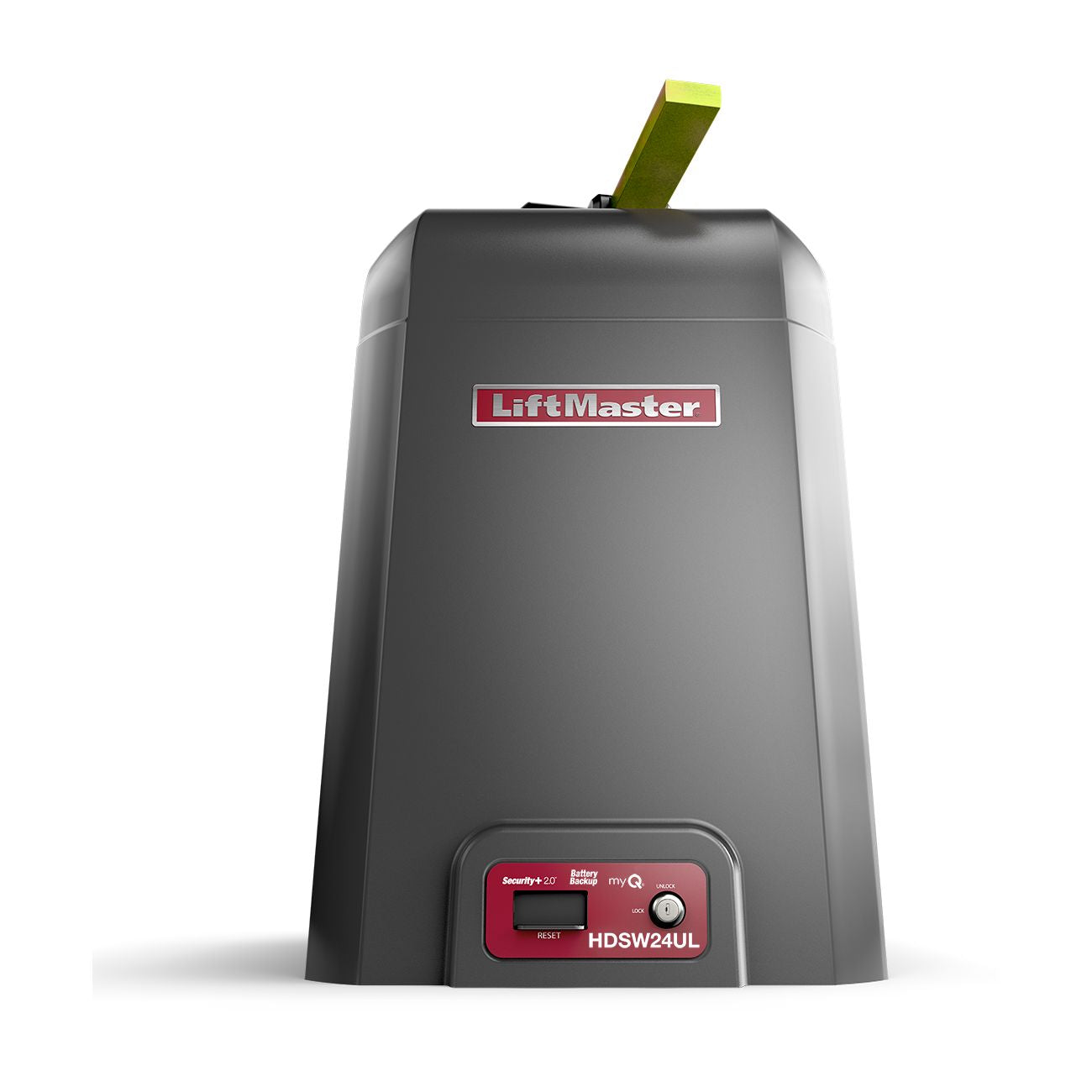

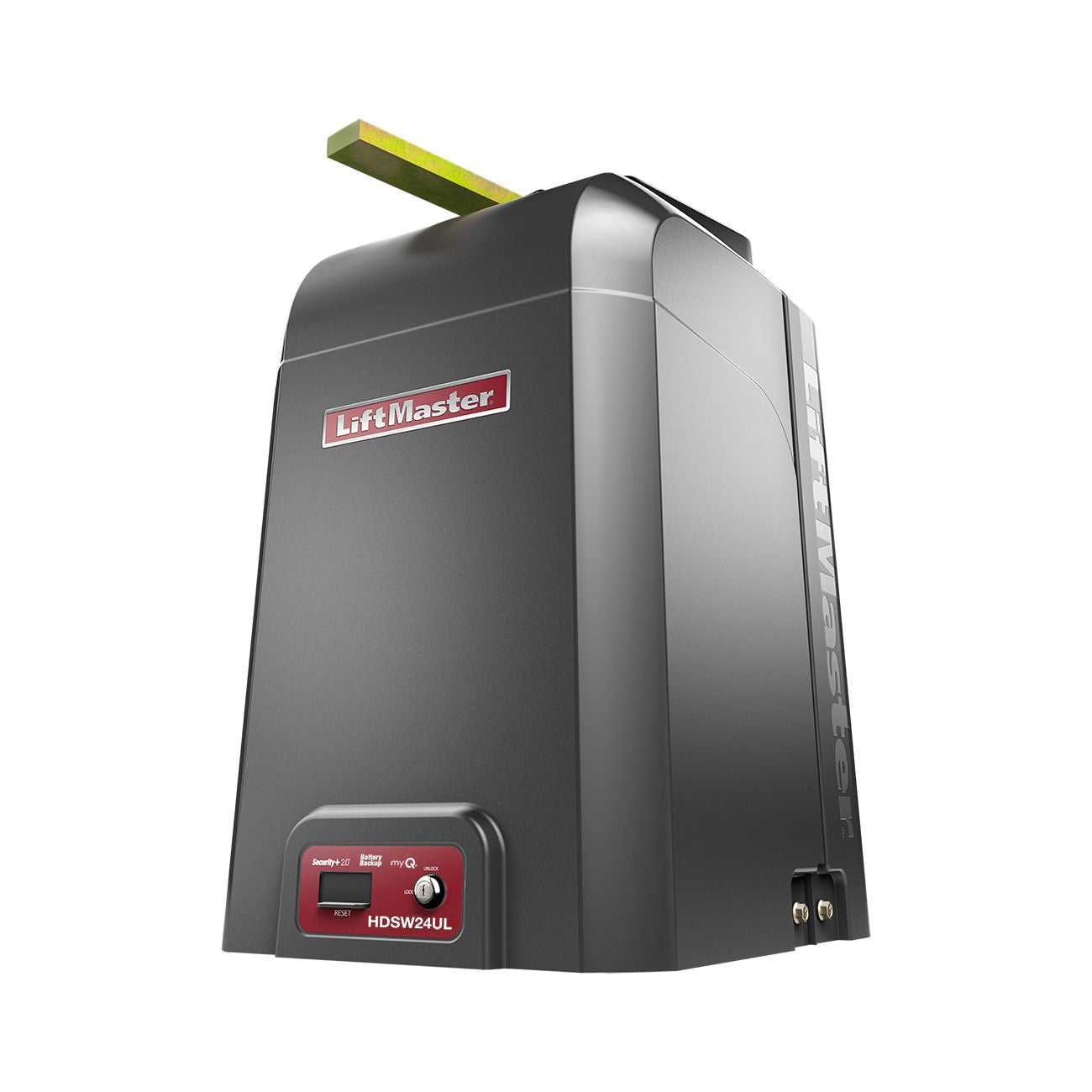

Liftmaster HDSW24UL Heavy-Duty Variable Speed Swing Gate Operator

Liftmaster HDSW24UL Heavy-Duty Variable Speed Swing Gate Operator
Liftmaster HDSW24UL Heavy-Duty Variable Speed Swing Gate Operator

Liftmaster HDSW24UL Heavy-Duty Variable Speed Swing Gate Operator

Vendor
MFG:LiftMaster
SKU: HDSW24UL
Regular price
MSRP: $2,549.00
Sale price
Your Price: $2,549.00
Quantity must be 1 or more


Liftmaster HDSW24UL HD Variable Speed Swing Gate Operator



Download Spec Sheet Download Manual

The newest addition to Liftmaster DC gate operator. This HD version can move gates up to 4,500 lbs in weight and 22ft in length (See chart for breakdown)

Features

  • Move heavy gates up to 4,500 lbs. (with optional arm-HDLGARM) or 22 ft. length.
  • Continuous-duty gate operation built with a custom heavy-duty gear box, size 80, direct drive 1,600:1 gear ratio.
  • Custom 1.5 HP peak brushless DC motor delivers up to 6 million cycles.
  • Variable cycle speed adjusts to meet application needs from 13 – 36 sec. for a 90-degree opening.
  • Smooth start/stop operation and mid-travel reversal extend operator hardware life.
  • Standard Arm(included) moves gates up to 2,800 lbs.
  • Custom Reinforced Long Arm (optional) moves gates up to 4,500 lbs.
  • Battery Backup that provides up to 45 cycles and 120 days of standby power.

    Smart Technology

    • Powered by myQ® for full insight and control over community and facility access points. Monitor and control multiple communities with Smart Community Access. Improve warehouse efficiency and productivity with Smart Facility Access.*
    • Four programmable auxiliary relays accommodate more accessories.
    • Wireless dual-gate communication synchronizes gate operation and eliminates costly trenching; set speed independently if needed.

    Security

    • Quick close and anti-tailgate quickly secures property, preventing unauthorized access.
    • Posilock® automatically closes the gate when it is pushed from the closed limit.
    • UL® listed gate operator with monitored safety entrapment protection devices.

    Included Accessories

    • LMRRUL Monitored Retro Reflective Photo Eye reliable retro-reflective photo eye now with heater and wide beam, engineered to stay aligned; max. Range: 50 ft.

    Specs

    • 13 – 36 sec for a 90 degree opening
    • 24VDC brushless continuous-duty motor
    • Operator Duty Rating: high-cycle, high-temperature continuous duty
    • Direct Drive
    • Standard Arm (Optional HDLGARM Reinforced Long Arm for heavy gate applications of 2,500 – 4,500 lbs., 14-22 ft.)
    • 120/240V single-phase
    • Accessory Power: 24VDC 1 A max. output; switched and unswitched power
    • Optional Kit (3PHCONV) to convert a 3-phase input voltage of 208/240/480/575VAC to an output voltage of 120VAC.
    • Solar-Ready, Ultra-Reliable System delivers power when and where you need it (LMRRUL/LMTBUL - heater option not recommended for solar applications).
    • Chassis: Constructed with 1/4 in. Steel, Powder Coated
    • Cover: High-Density, UV-Resistant Polyethylene Cover for Excellent Heat and Corrosion Resistance
    • UL® Usage Classification: I, II, III, and IV

    Dimensions

    • Height: 28.04”
    • Width: 16.37”
    • Depth: 19.59”

      Other Features

      • Inherent Reversing Sensor detects obstructions and reverses gate.
      • Posilock® automatically closes the gate when it is pushed from the closed limit.
      • Manual Disconnect allows gate to be opened manually when released.
      • Monitored Safety Inputs 3 main board, 3 expansion board.
      • Security+ 2.0® On-Board Radio Receiver:
      • Tri-Band 310/315/390 MHz frequency
      • Up to 50 remote controls (Unlimited with 811LM/813LM)
      • LED Diagnostic Display simplifies installation and troubleshooting
      • Programmable Auxiliary Relays: 4 relays make adding additional features easy.
