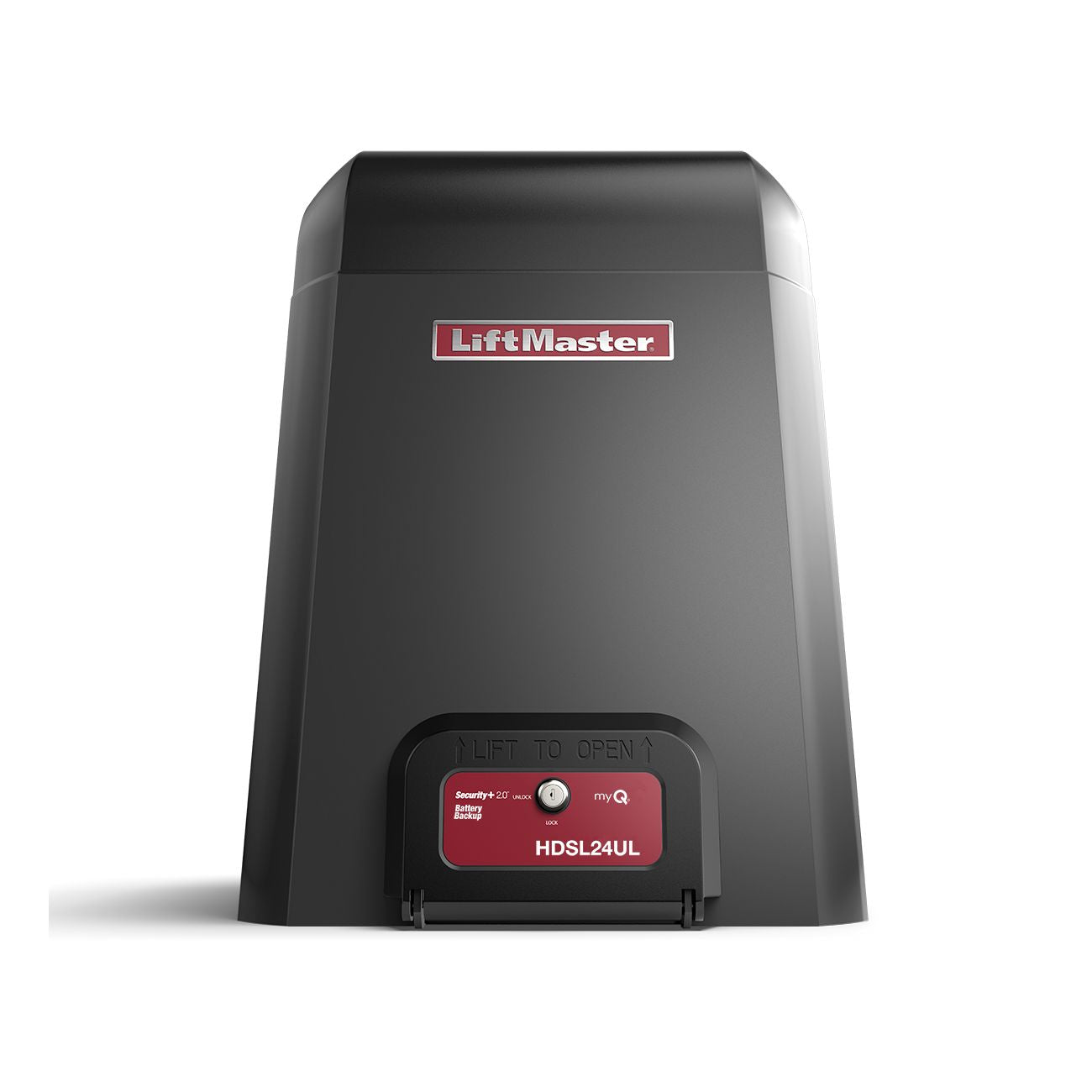

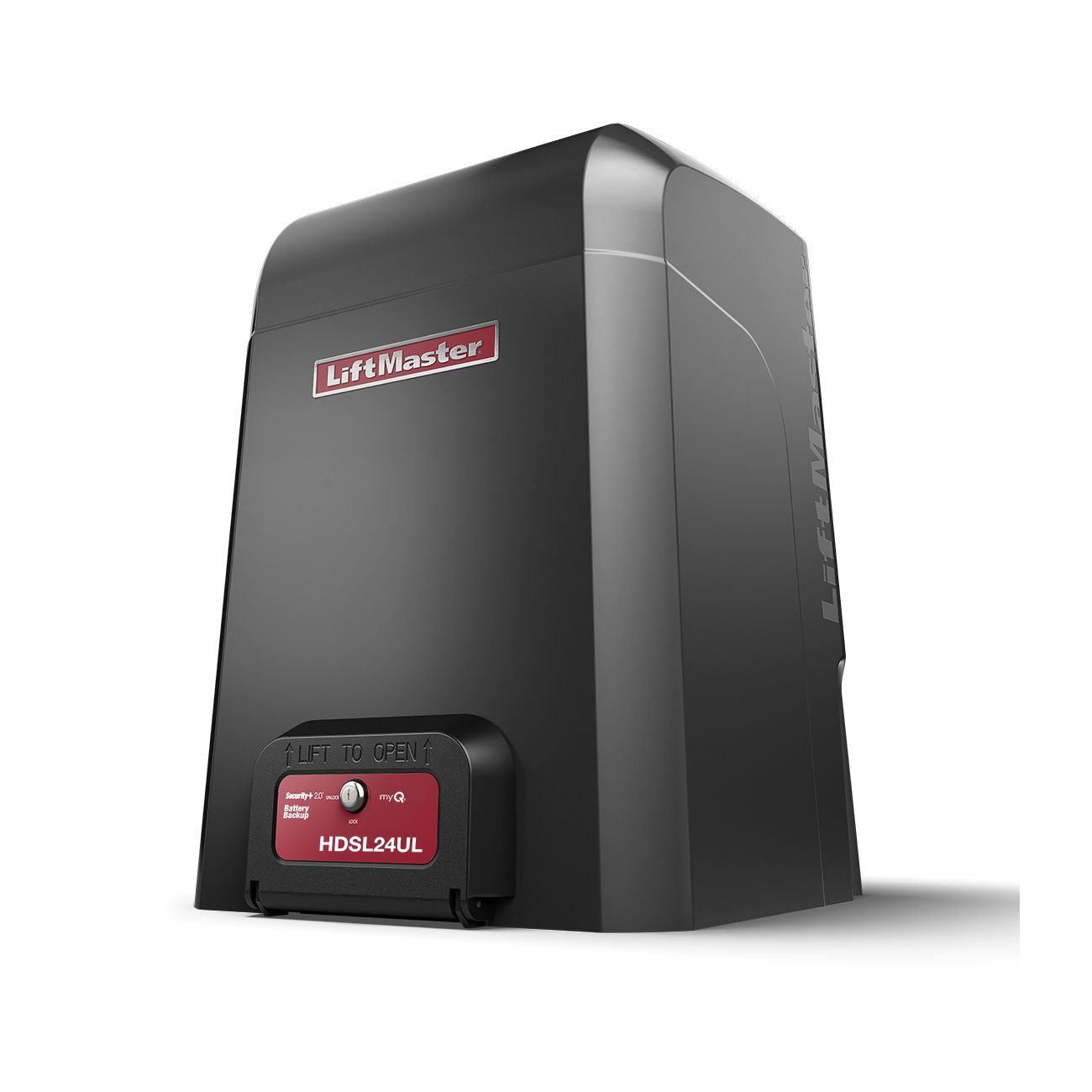

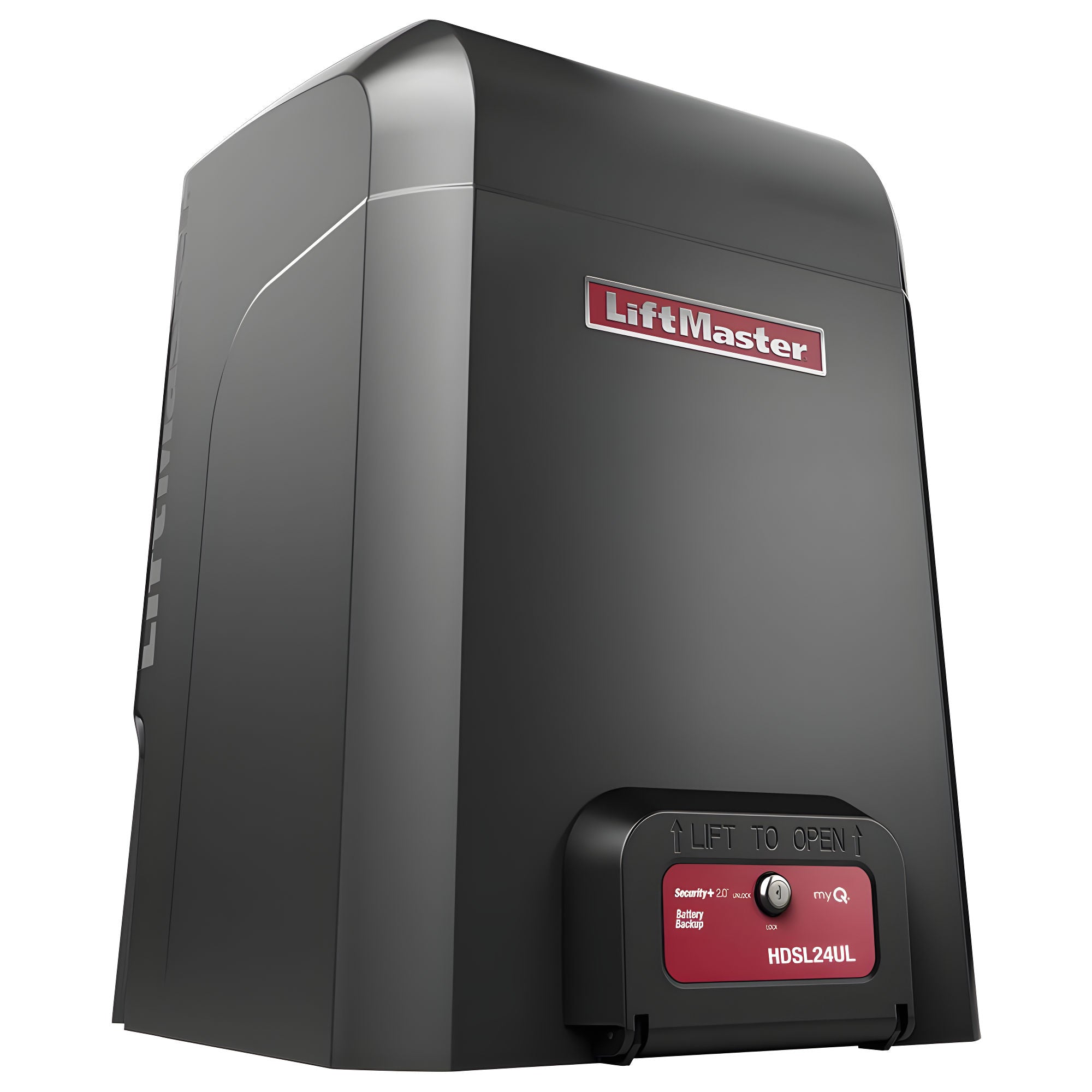

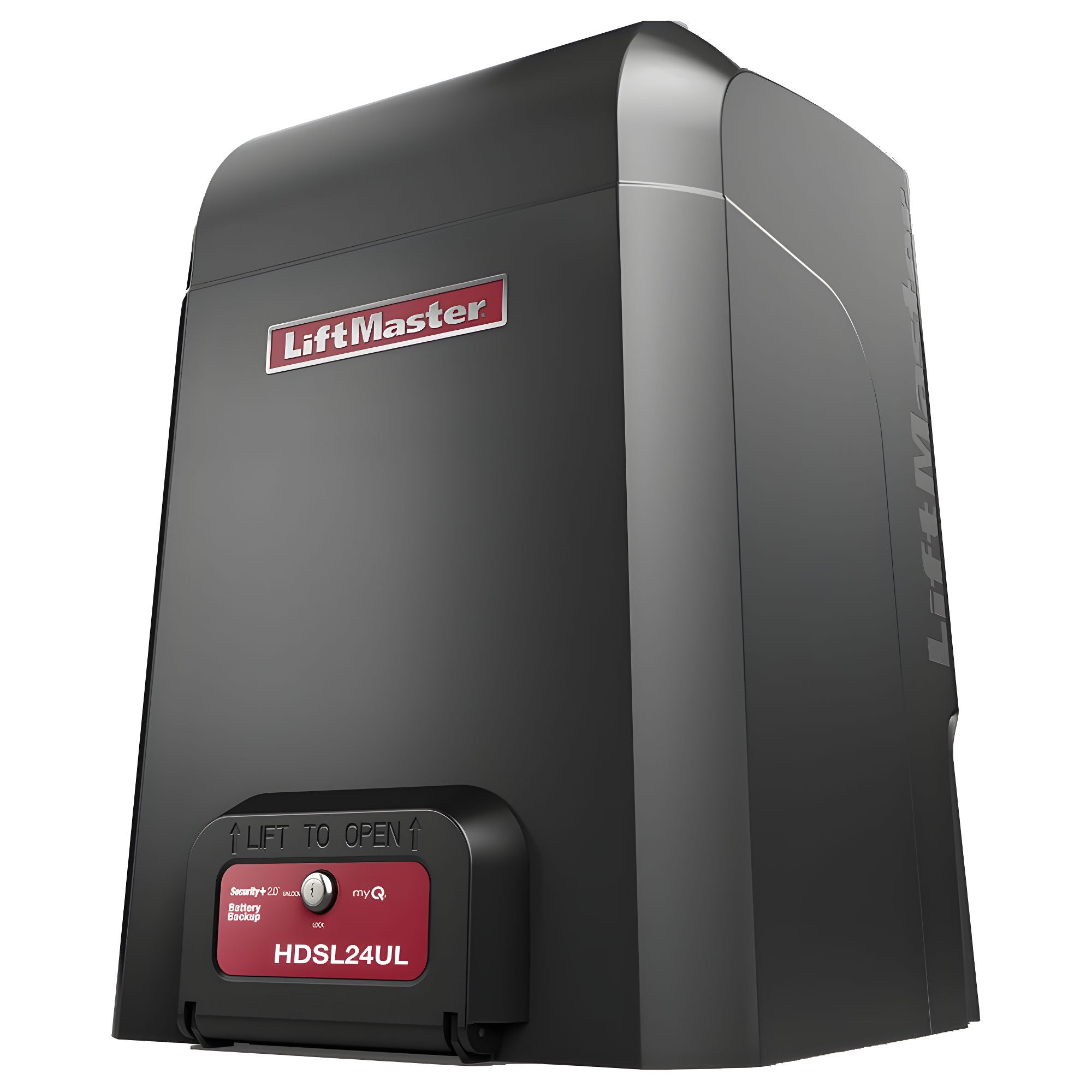

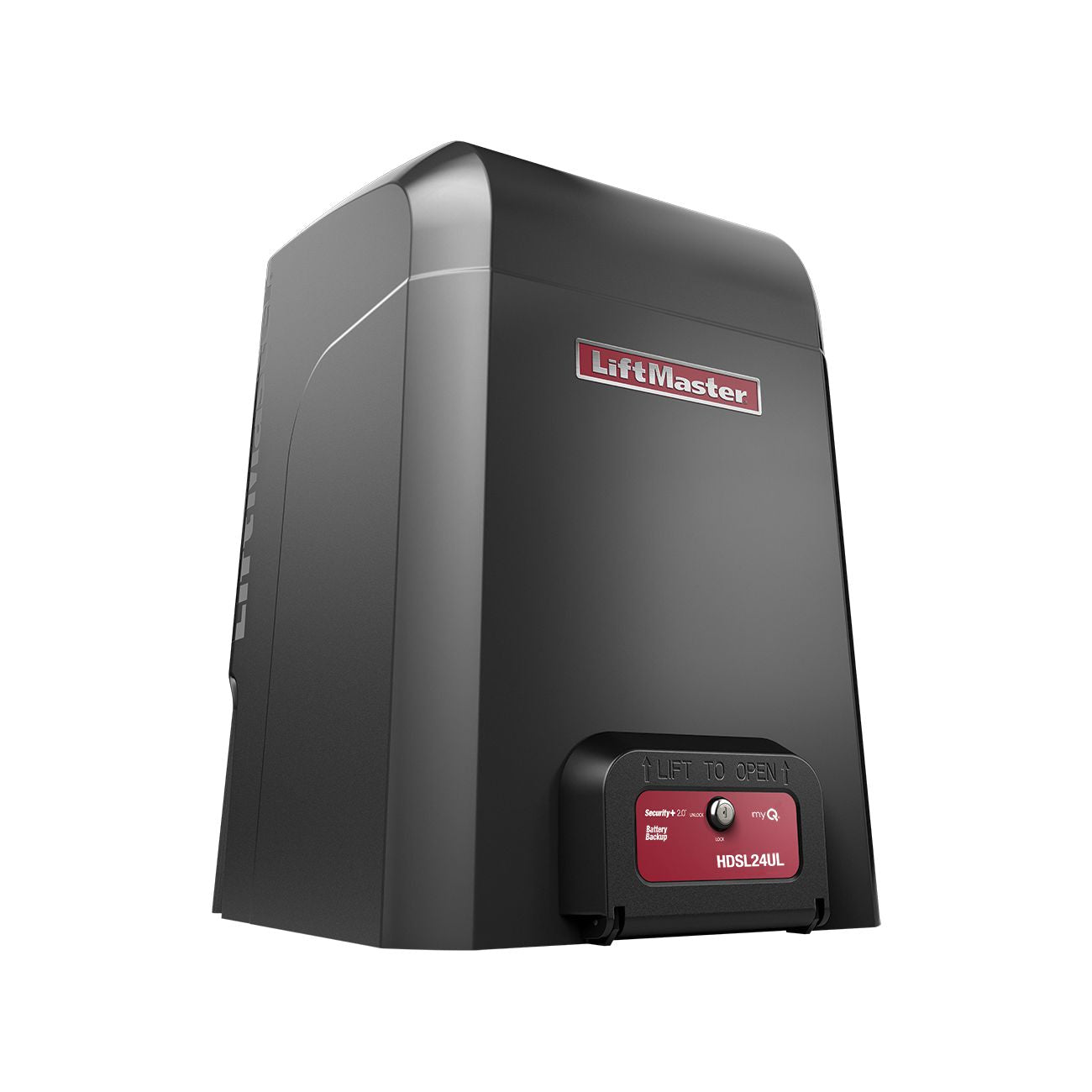

Liftmaster HDSL24UL Heavy-Duty Variable Speed Slide Gate Operator (On Sale)

Liftmaster HDSL24UL HD Variable Speed Slide Gate Operator

Download Spec Sheet Download Manual

The newest addition to Liftmaster DC gate operator. This HD version can move gates up to 3,000 lbs in weight and 75ft in length.

Features

• Move heavy gates up to 3,000 lbs. at 1 ft./sec.
• Continuous-duty gate operation built with a custom heavy-duty gear box, size 70, direct drive 40:1 gear ratio.
• Custom 1.5 HP peak brushless DC motor delivers up to 6 million cycles.
• Variable cycle speed adjusts to meet application needs from .5 ft./sec. to 1 ft./sec.
• Smooth start/stop operation and mid-travel reversal extend operator hardware life.
• #40 industrial chain provides a pull strength of 2x the gate weight.
• Battery Backup that provides up to 45 cycles and 120 days of standby power.

Smart Technology

• Powered by myQ® for full insight and control over community and facility access points. Monitor and control multiple communities with Smart Community Access. Improve warehouse efficiency and productivity with Smart Facility Access.*
• Four programmable auxiliary relays accommodate more accessories.
• Wireless dual-gate communication synchronizes gate operation and eliminates costly trenching; set speed independently if needed.

Security

• Quick close and anti-tailgate quickly secures property, preventing unauthorized access.
• Posilock® automatically closes the gate when it is pushed from the closed limit.
• UL® listed gate operator with monitored safety entrapment protection devices.

Included Accessories

• LMRRUL Monitored Retro Reflective Photo Eye reliable retro-reflective photo eye now with heater and wide beam, engineered to stay aligned; max. Range: 50 ft.
• S505AL Monitored Small Profile resistive edge pressure-sensitive edge senses obstructions.

Specs

• Variable Gate Speed 0.5 ft to 1 ft. per second
• 24VDC brushless continuous-duty motor
• Operator Duty Rating: high-cycle, high-temperature continuous duty
• Direct Drive
• Chain: #40 Industrial
• 120/240V single-phase
• Accessory Power: 24VDC 1 A max. output; switched and unswitched power
• Optional Kit (3PHCONV) to convert a 3-phase input voltage of 208/240/480/575VAC to an output voltage of 120VAC.
• Solar-Ready, Ultra-Reliable System delivers power when and where you need it (LMRRUL/LMTBUL - heater option not recommended for solar applications).
• Chassis: Constructed with 1/4 in. Steel, Powder Coated
• Cover: High-Density, UV-Resistant Polyethylene Cover for Excellent Heat and Corrosion Resistance
• UL® Usage Classification: I, II, III, and IV

Dimensions

• Height: 26.51”
• Width: 18.14”
• Depth: 20.39”

Other Features

• Inherent Reversing Sensor detects obstructions and reverses gate.
• Posilock® automatically closes the gate when it is pushed from the closed limit.
• Manual Disconnect allows gate to be opened manually when released.
• Monitored Safety Inputs 3 main board, 3 expansion board.
• Security+ 2.0® On-Board Radio Receiver:
• Tri-Band 310/315/390 MHz frequency
• Up to 50 remote controls (Unlimited with 811LM/813LM)
• LED Diagnostic Display simplifies installation and troubleshooting
• Programmable Auxiliary Relays: 4 relays make adding additional features easy.
