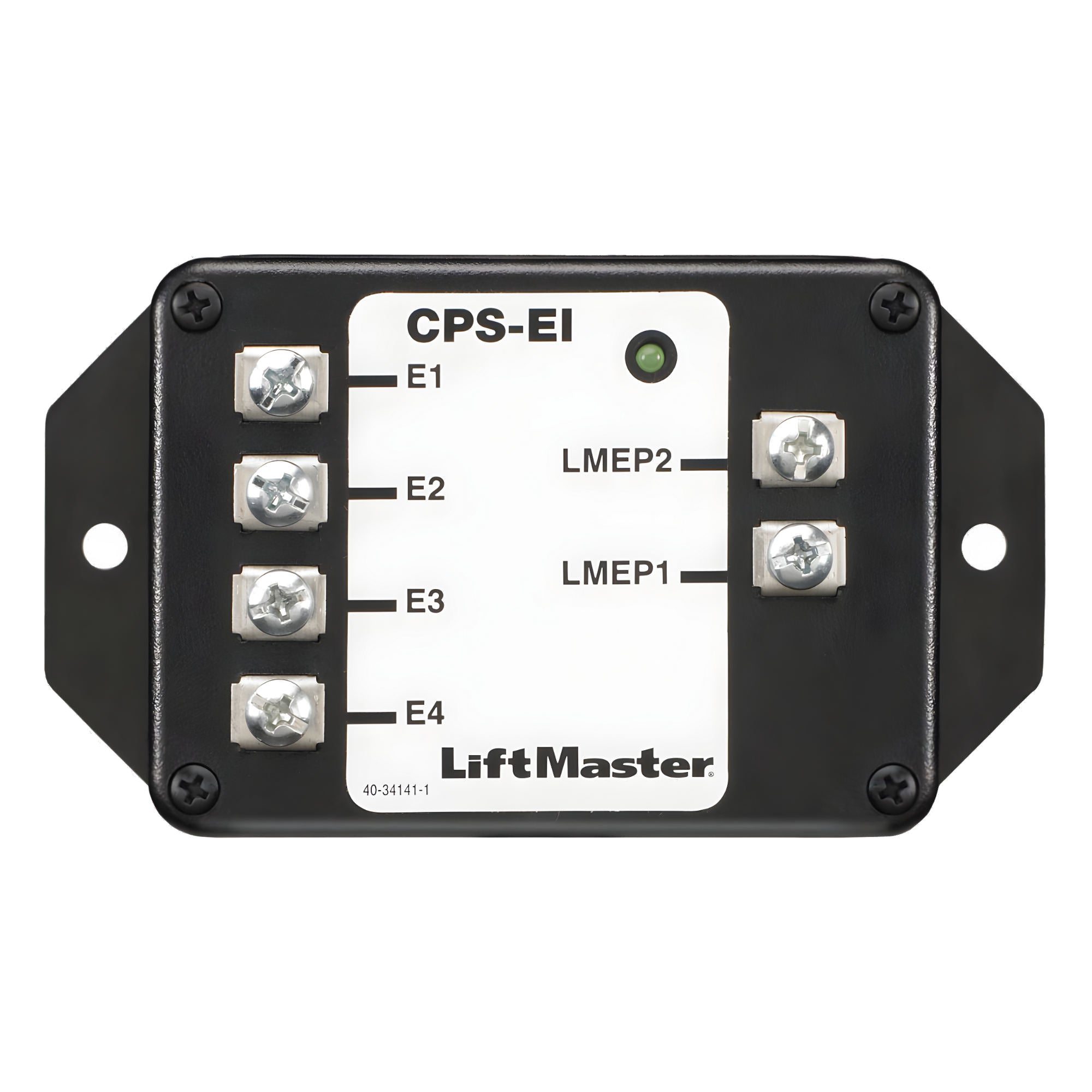

LiftMaster CPS-EI Sensing Edge Interface

Commercial Door Edge Interface for LiftMaster Logic Operators

The LiftMaster CPS-EI Sensing Edge Interface is a Commercial Protector System edge interface for compatible LiftMaster commercial door operators using 4-wire monitored sensing edges. It connects the monitored sensing edge to the operator’s LMEP safety input so the door can detect an obstruction at the edge and reverse during the closing cycle.

This interface is intended for LiftMaster Logic commercial door operator applications, including compatible standard-duty, medium-duty, industrial-duty, and fire door operator systems when specified by LiftMaster. It is not a gate operator safety device and should not be used as a substitute for gate photo eyes, gate edges, or other UL 325 gate entrapment protection devices.

When properly installed, the CPS-EI monitors the connected 4-wire sensing edge. If an obstruction activates the sensing edge while the door is closing, the operator stops and reverses the door to the fully open position. The built-in green LED helps confirm whether the interface and sensing edge are connected and not activated.

LiftMaster notes that the CPS-EI is a stand-alone reversing system and is not intended to be used in conjunction with additional entrapment protection devices. A junction box, not included, is recommended to protect exposed wiring between the door sensing edge and the interface.

Key Features

• LiftMaster Commercial Protector System edge interface
• Model CPS-EI
• Designed for compatible LiftMaster commercial door operators
• Intended for LiftMaster Logic commercial door operator applications
• Interfaces compatible 4-wire monitored sensing edges with the operator
• Connects to LMEP terminals on compatible LiftMaster logic boards
• Helps reverse the door if the sensing edge is activated during closing
• Green LED status indicator for system connection and edge status
• Compatible with select LiftMaster Logic 4.0 and Logic 5.0 commercial door operator applications when specified
• Wiring diagrams provided for Medium Duty Logic, Logic 4, and compatible fire door operators
• Compatible fire door operator references include FDC, FDCL, FDOA, and FDOB
• Stand-alone reversing interface for commercial door sensing edge systems
• Junction box recommended to protect exposed wiring
• Not for gate operators or pedestrian gate safety applications

Technical Specifications

• Manufacturer: LiftMaster / The Chamberlain Group
• Model / Part Number: CPS-EI
• Product Name: Commercial Protector System Edge Interface
• Product Type: Sensing edge interface
• Application: Commercial door operator monitored edge interface
• Compatible Operator Type: LiftMaster commercial door operators
• Operator Family Reference: LiftMaster Logic commercial door operators
• Common Compatibility Reference: Logic 5.0 and Logic 4.0 standard-duty, medium-duty, industrial-duty, and fire door operators when specified by LiftMaster
• Fire Door Operator References: FDC, FDCL, FDOA, and FDOB
• Compatible Edge Type: 4-wire monitored sensing edge
• Compatible Edge References: 65-ME123, 65-ME113, 65-8203, and 65-8204 4-wire sensing edges as listed by LiftMaster
• Operator Connection: LMEP1 and LMEP2 terminals
• Edge Connections: E1, E2, E3, and E4 terminals
• Status Indicator: Green LED
• Function: Detects sensing edge activation and signals the operator to stop and reverse during closing
• Closing Obstruction Response: Door stops and reverses to the fully open position
• Installation Method: Mount with wiring routed through conduit according to local and National Electrical Code requirements
• Recommended Protection: Junction box recommended to protect exposed wiring
• Junction Box Included: No
• Power Safety: Disconnect operator power before installation or service
• Wiring Note: Do not run CPS-EI wiring and power wiring in the same conduit
• System Type: Stand-alone reversing system
• Not Intended For: Use with additional entrapment protection devices unless specified by LiftMaster
• Application Warning: For use only on LiftMaster commercial door operators
• Included Component: CPS-EI sensing edge interface
• Not Included: 4-wire sensing edge, junction box, coil cord, conduit, door operator, mounting hardware, or additional safety devices unless specifically stated
• Installation Requirement: Install and test according to LiftMaster instructions before returning the door system to service

Conclusion

The LiftMaster CPS-EI is a sensing edge interface for compatible LiftMaster Logic commercial door operators using 4-wire monitored sensing edges. It provides the connection between the door edge and the operator’s LMEP input so the door can stop and reverse if the monitored edge is activated during closing. It should be used only on compatible LiftMaster commercial door operator systems and installed according to the LiftMaster wiring diagrams.
