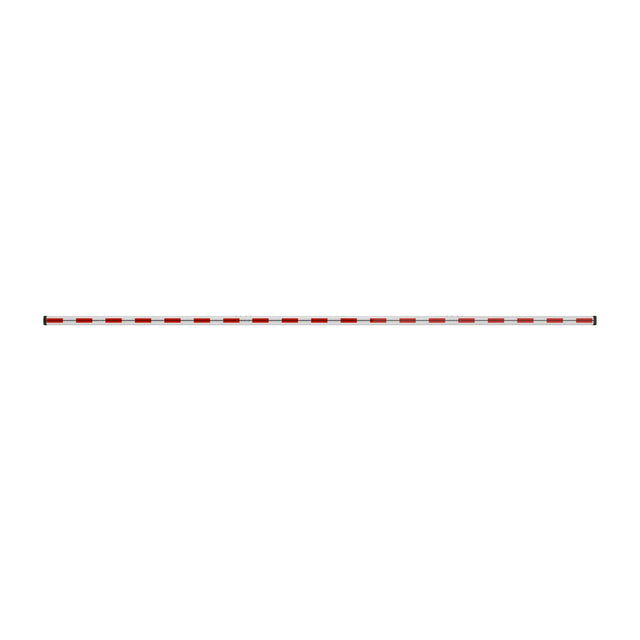

LiftMaster BGARM Barrier Arms – 10, 12, 14 Ft

Modular Barrier Arms for LiftMaster TECHNA Barrier Operators

The LiftMaster BGARM Series barrier arms are modular aluminum gate arms designed for use with TECHNA barrier gate operators, including models CBG24DCWMC, CBG24DCGMC, PBG24DCW, and PBG24DCG. Each BGARM kit includes the required mounting section and segmented arm lengths to create the full span. These arms support breakaway, swingaway, or fixed installation, offering flexibility for various commercial and industrial applications. LED-lit variants feature integrated red/green light strips for enhanced traffic control visibility.

All BGARM arms are constructed from lightweight, corrosion-resistant aluminum and are UL-listed when paired with certified LiftMaster barrier operators.

Key Features

• Modular construction – Ships in multiple segments for easy assembly
• LED-ready and standard models – Choose with or without integrated lighting
• Field-configurable – Supports fixed, breakaway, or swingaway installation
• Complete kits – Includes arm mount section, segmented arms, and hardware
• Operator-specific compatibility – Built for TECHNA CBG and PBG series barrier operators
• Traffic control enhancement – LED arms improve safety at vehicle entry points

Technical Specifications

• Material: Aluminum
• Mounting: Arm bracket (included with operator)
• Lengths Available: 10, 12, or 14 ft

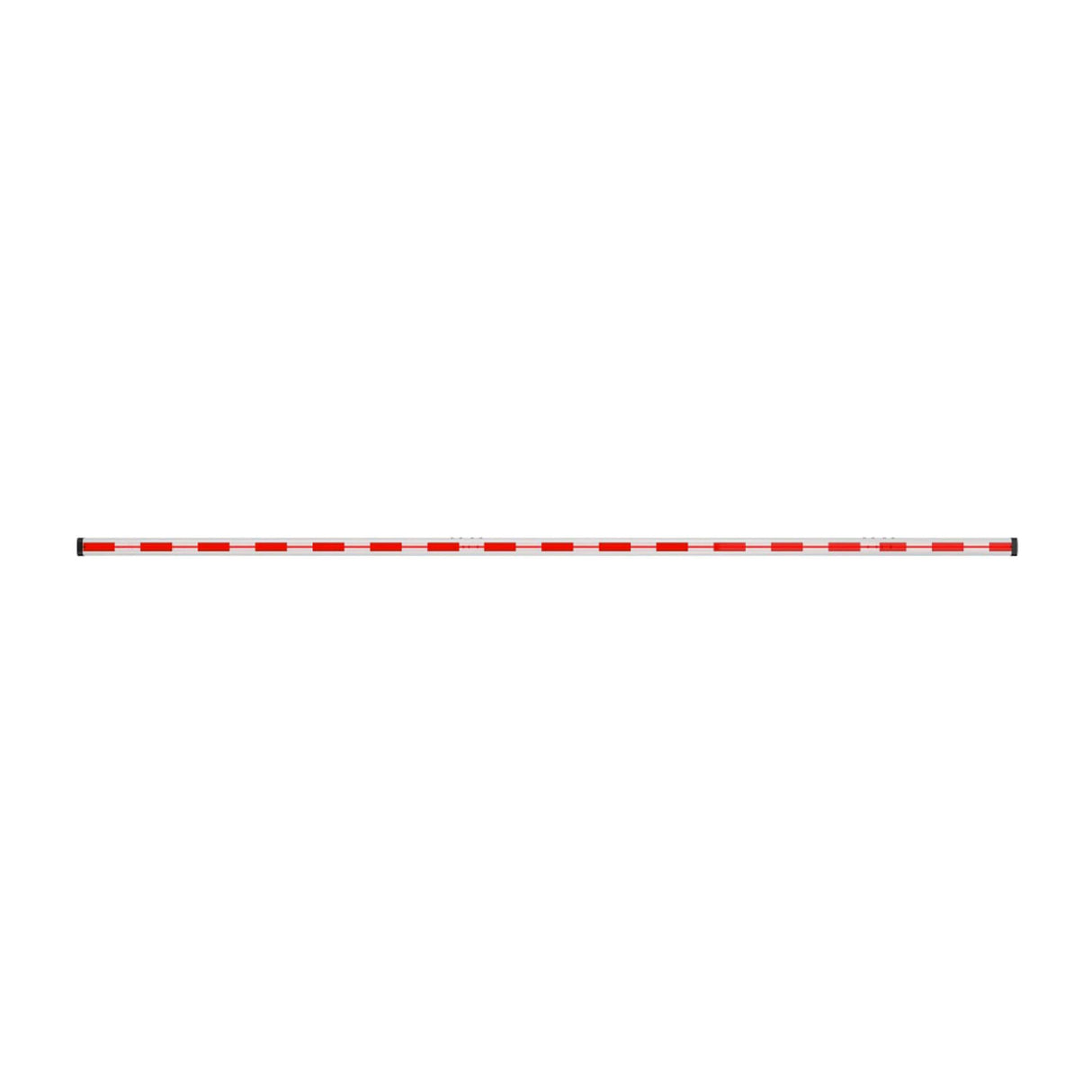

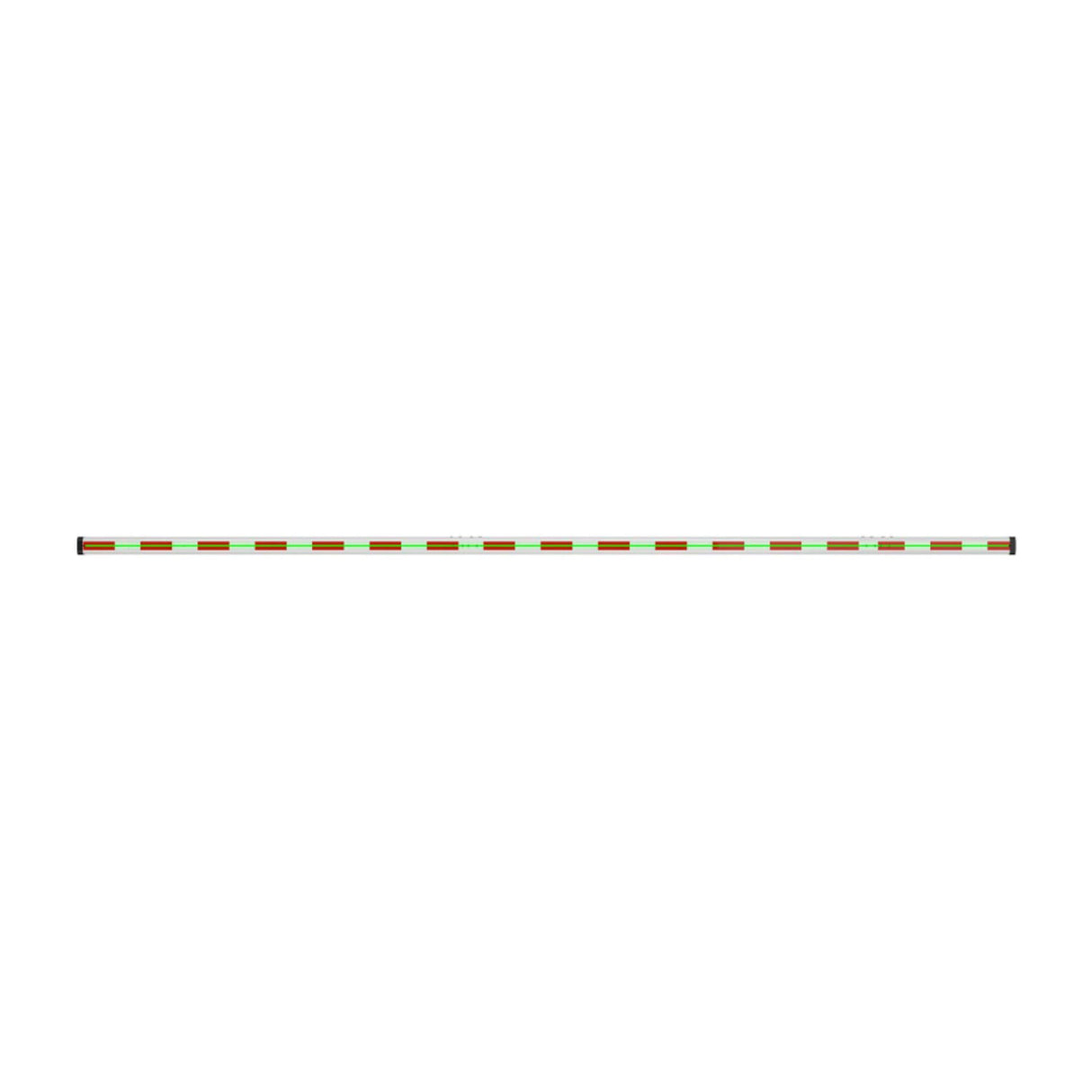

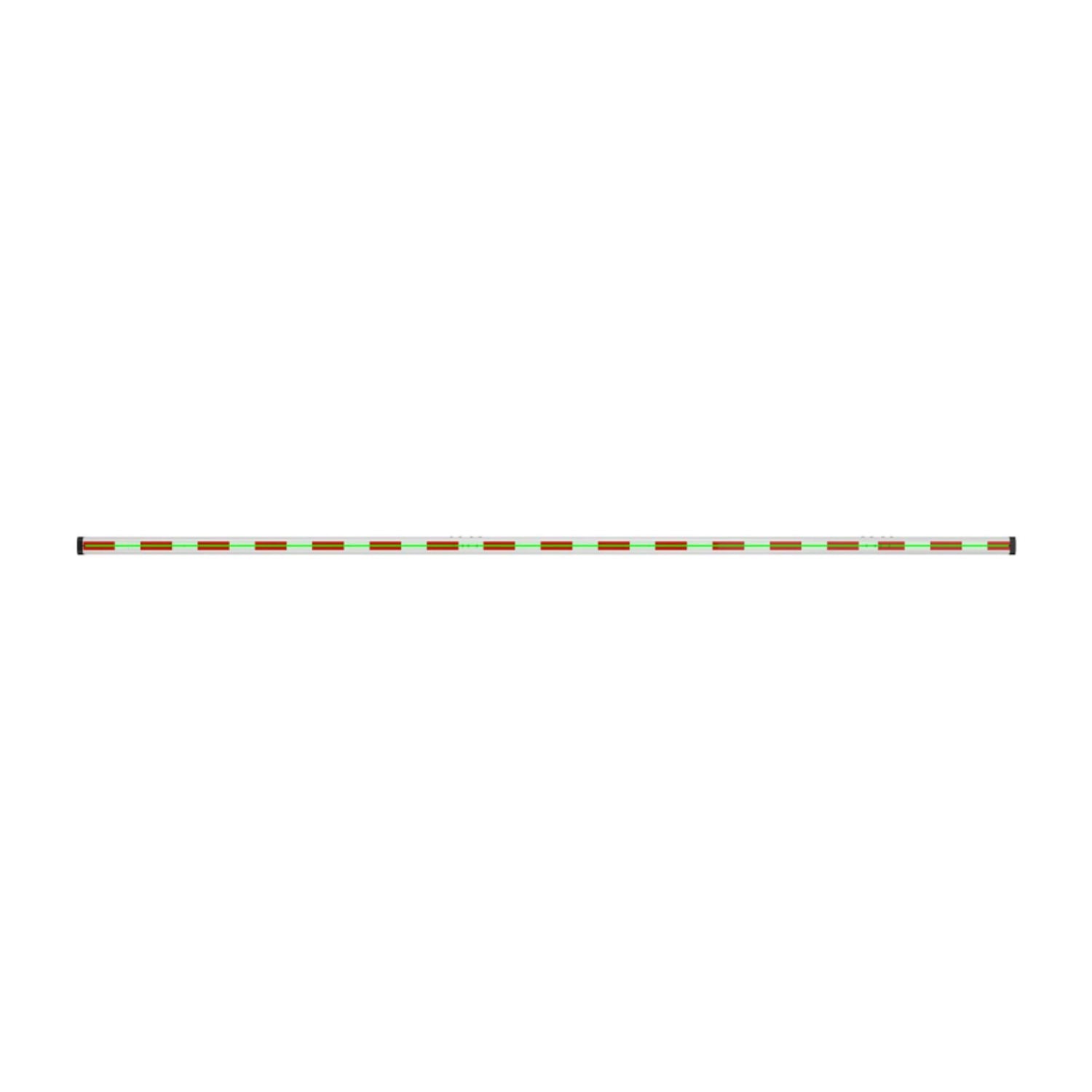

• Lighting Options: Standard or integrated red/green LEDs
• Configurations: Fixed, breakaway, swingaway (7 ft clearance required for swingaway)
• Included: Mounting section, segmented arm sections, bolts and fasteners
• UL Listed: When used with LiftMaster-certified TECHNA operators

Available Lengths and Variants

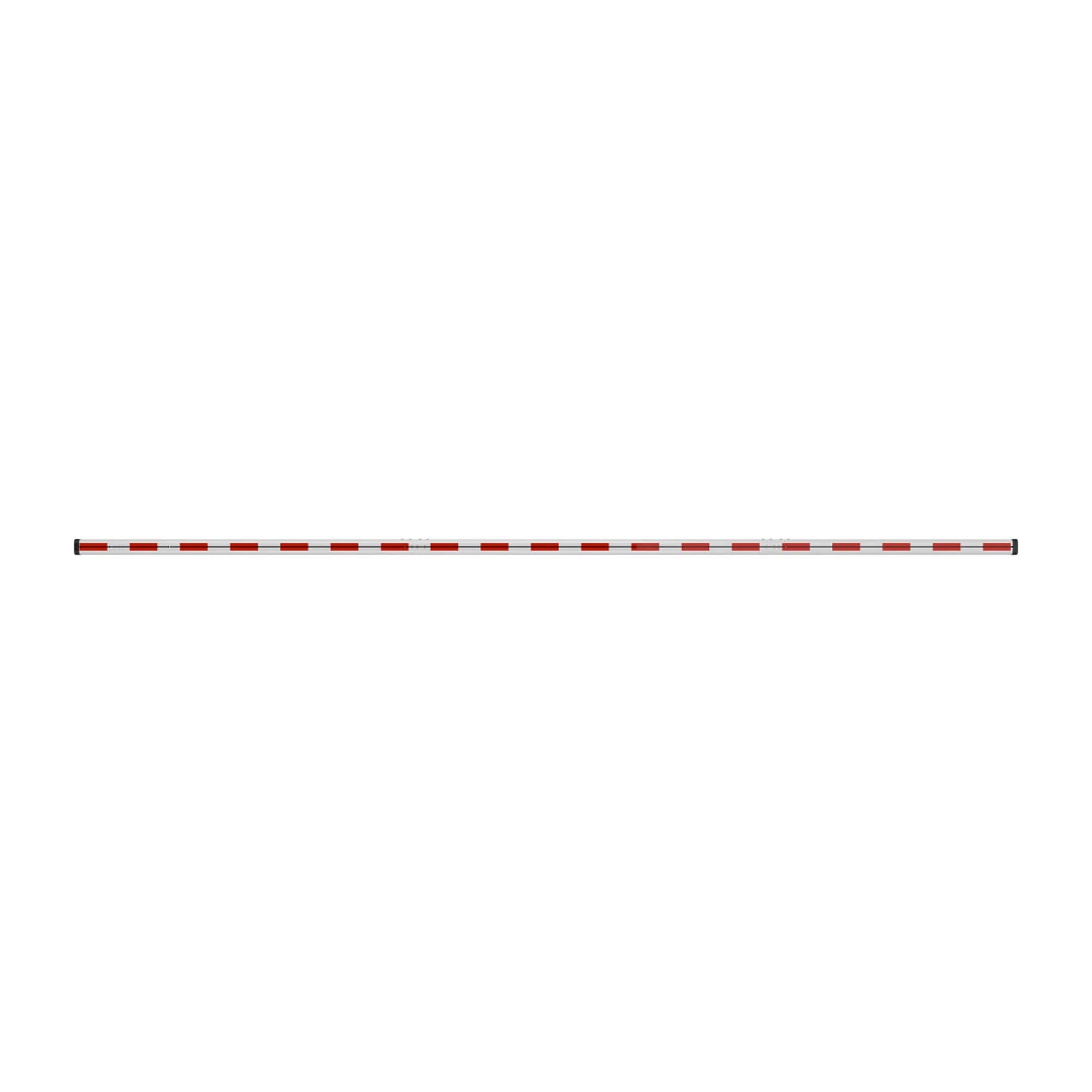

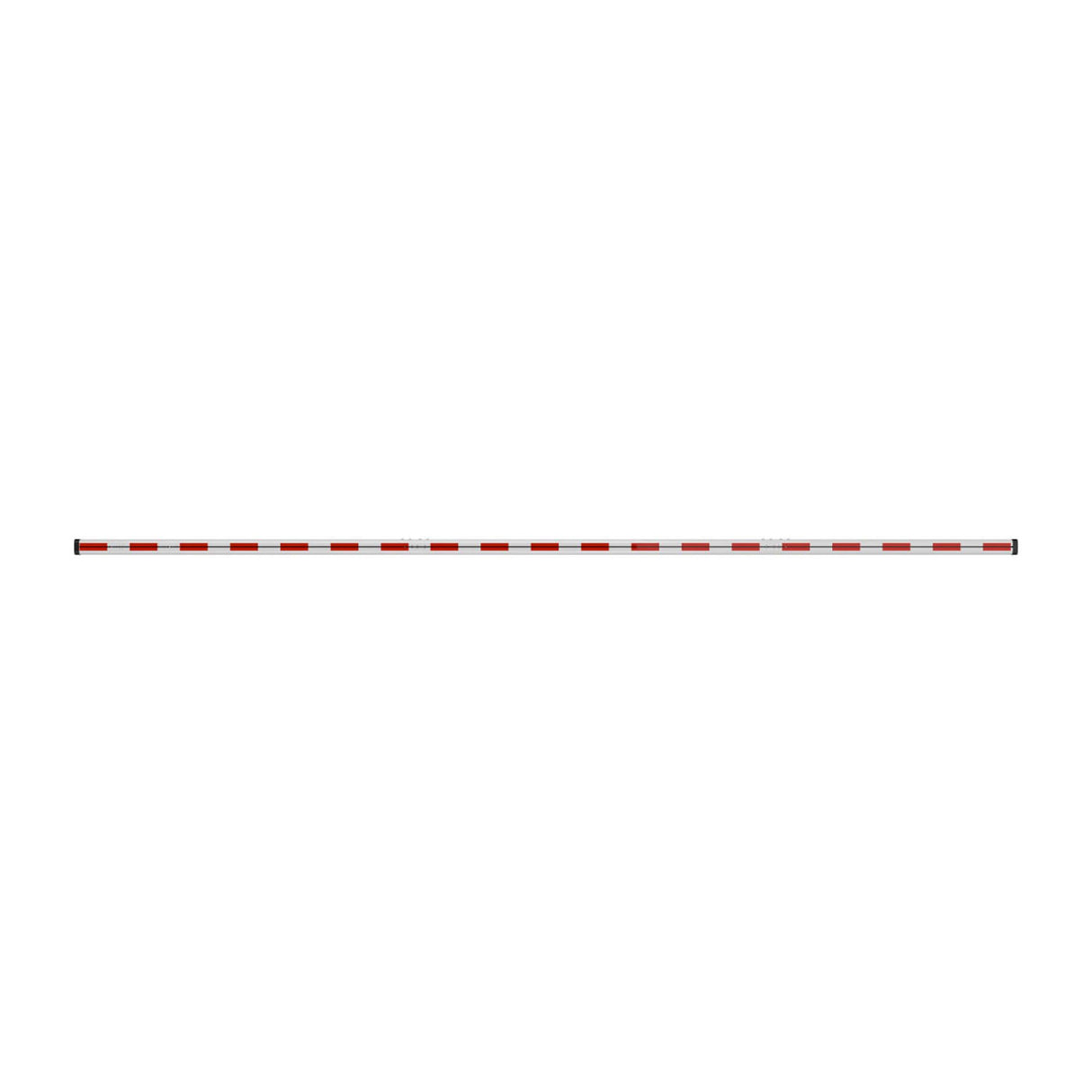

• BGARM10 – 10 ft Standard Aluminum Arm (Includes 6 ft segment + mounting section)
• BGARM10LED – 10 ft LED-Lit Arm (Includes 6 ft LED segment + mounting section)
• BGARM12 – 12 ft Standard Aluminum Arm (Includes 6 ft segment + 2ft sergeants + mounting section)
• BGARM12LED – 12 ft LED-Lit Arm (Includes 6 ft + 2 ft LED segments + mounting section)
• BGARM14 – 14 ft Standard Arm (Includes 6 ft + 4 ft segments + mounting section)
• BGARM14LED – 14 ft LED-Lit Arm (Includes 6 ft + 4 ft LED segments + mounting section)

Compatible Operators

• CBG24DCWMC / CBG24DCGMC – TECHNA Commercial Gate Operators
• PBG24DCW / PBG24DCG – TECHNA Parking Gate Operators

Conclusion

The LiftMaster BGARM Series barrier arms offer a modular, field-serviceable solution for TECHNA barrier operators. Whether you need standard aluminum or integrated LED illumination, these arms provide fast assembly, reliable durability, and certified compatibility with LiftMaster’s next-generation commercial gate systems.
