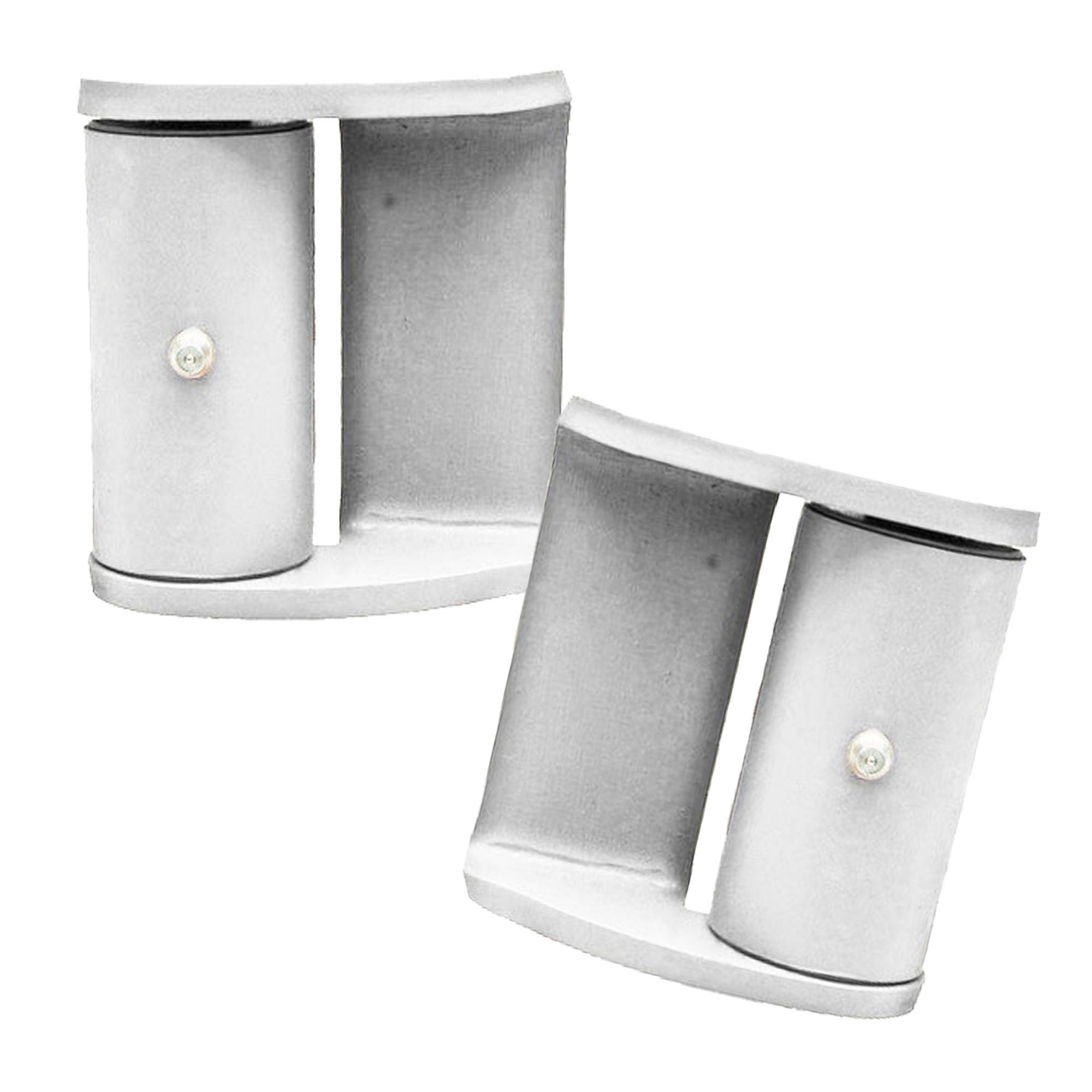

LiftMaster 2060Z Roller Bearing Gate Hinges – Pair

Zinc-Coated Tamperproof Hinges for Secure Swing Gate Installations

The LiftMaster 2060Z is a pair of standard-duty roller cage bearing hinges engineered for high-traffic swing gates requiring dependable motion, secure mounting, and tamper resistance. Designed with a flat-mount configuration on both sides, these hinges feature a welded pin design to eliminate pin removal and deter unauthorized tampering—making them ideal for perimeter security installations.

The 2060Z hinges are zinc-coated for corrosion resistance and built to minimize the gap between the gate and post. Capable of supporting up to 1,000 lbs per pair, these hinges offer smooth 180° swing operation and easy grease access for long-term performance in residential, light commercial, and gated community environments.

Key Features

• Flat-mount design on both hinge and gate post
• Tamperproof welded pin prevents disassembly
• Roller cage bearing system ensures smooth, low-resistance movement
• Corrosion-protected zinc finish for long-lasting durability
• 180° swing capability
• Reduces gate-to-post spacing for tighter installations
• Grease-accessible for easy long-term maintenance
• Ideal for light commercial and residential perimeter security gates

Technical Specifications

• Model: 2060Z
• Mount Type: Flat mount (both sides)
• Material: Zinc-coated steel
• Hinge Type: Roller cage bearing
• Maximum Capacity: 1,000 lbs per pair
• Swing Range: 180 degrees
• Security Feature: Welded pin (tamperproof)
• Included: Two hinges (1 pair)
• Application: Swing gates in secure residential or light commercial environments

Conclusion

The LiftMaster 2060Z Roller Cage Bearing Hinges deliver reliable gate support with added tamper resistance, corrosion protection, and smooth operation. Whether you're upgrading a perimeter access point or installing new security gate hardware, this hinge pair provides the strength and control necessary for secure, long-lasting gate performance.
