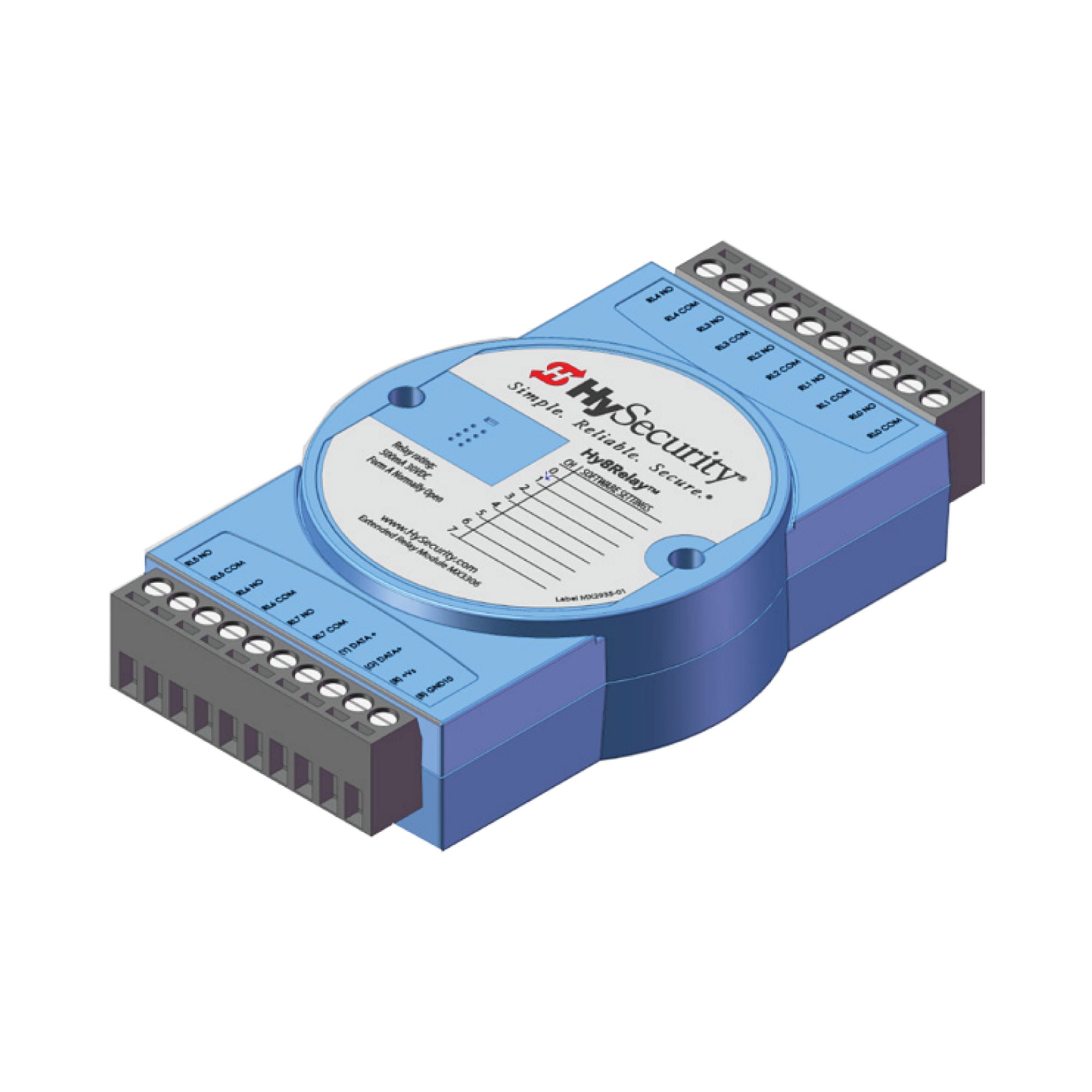

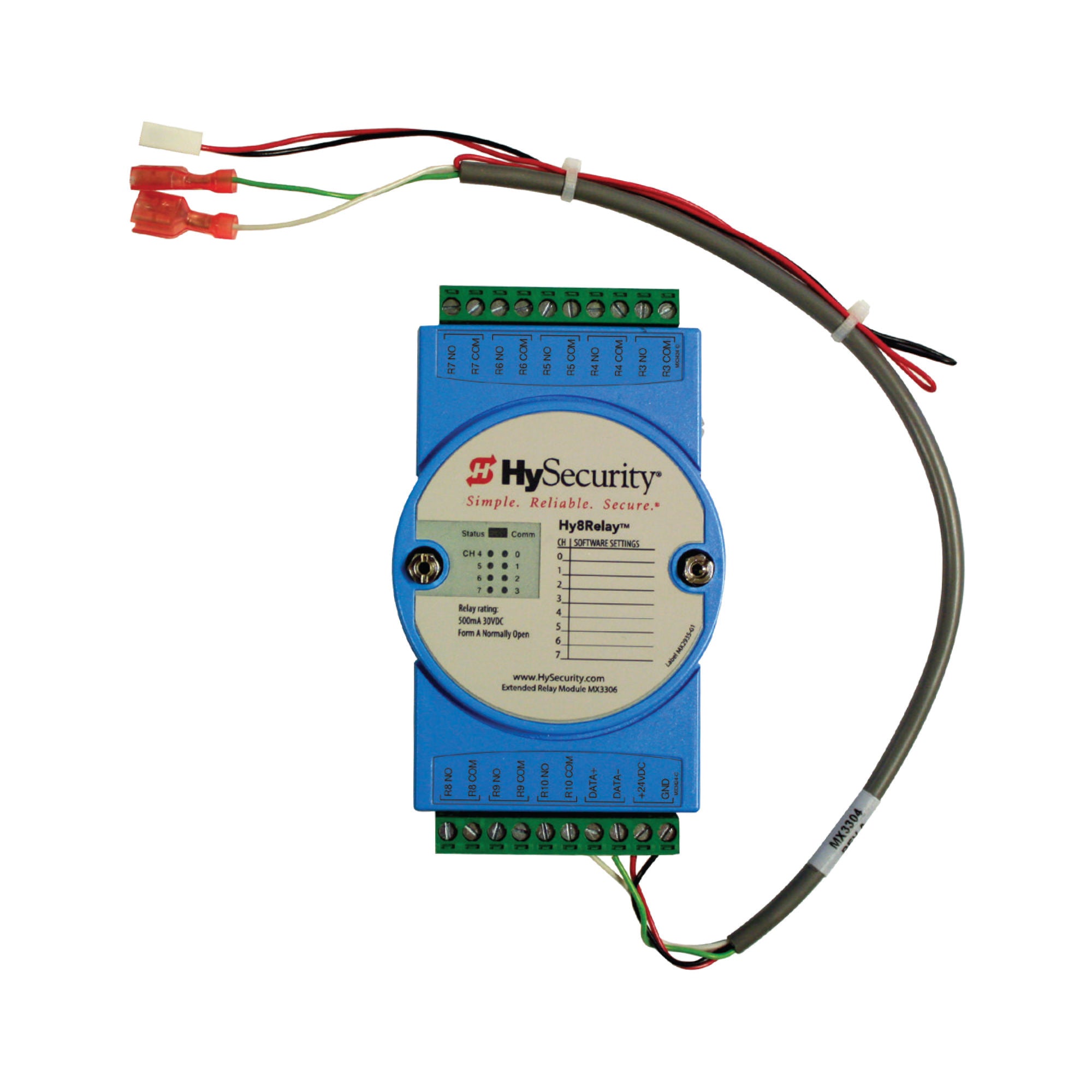

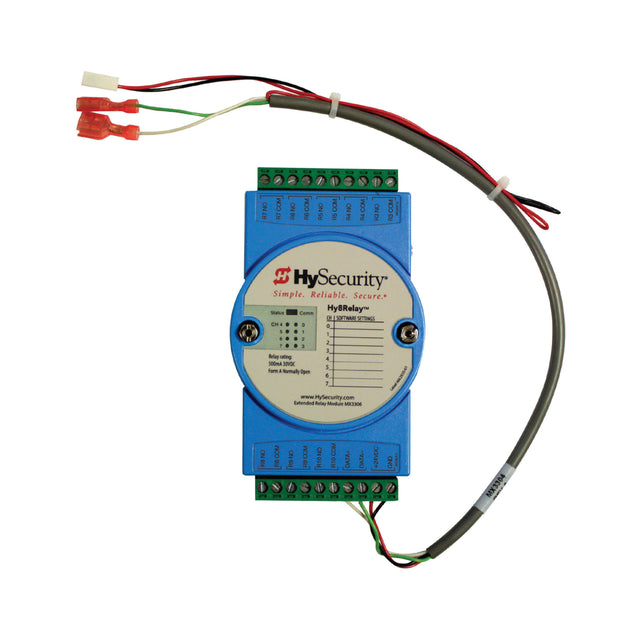

HySecurity MX3307-02 Relay Expansion Module

Expanded Relay Control for Smart Touch Gate Operators

The HySecurity MX3307-02 Hy8Relay™ Module is a powerful relay expansion board designed specifically for Smart Touch Controllers. It adds eight additional user relays to any compatible HySecurity operator, providing expanded automation and control capabilities for access control systems, warning devices, lighting, and more.

Engineered for seamless integration, the Hy8Relay works with up-to-date software (S.T.A.R.T. v2.95 or newer) and includes a wiring harness to connect to Dual Gate A/B and RS-485 terminals. This module is ideal for enhancing site-specific configurations in high-security and industrial applications.

Key Features

• Eight Additional User Relays – Expands control capabilities of HySecurity gate operators.
• Smart Touch Controller Compatibility – Designed specifically for use with Smart Touch boards.
• Multiple Mounting Options – Includes DIN-rail and panel brackets for flexible installation.
• Direct Wiring Harness – Connects easily to Dual Gate and RS-485 terminals.
• Integrated with S.T.A.R.T. Software – Ensures advanced configuration and programming.
• Supports 32 Logic Functions – Relay assignments include alerts, outputs, and operational controls.

Technical Specifications

• Part Number: MX3307-02
• Relay Channels: 8 Form A (normally open contacts)
• Contact Rating: 0.5A @ 120VAC, 0.25A @ 240VAC, 1A @ 30VDC
• Power Consumption: 1.8W @ 24VDC
• Certifications: CE, FCC Class A, UL
• Compatible Controllers: Smart Touch Controller with updated software (v2.95+)
• Connections: Dual Gate A/B, RS-485

Conclusion

The HySecurity MX3307-02 Hy8Relay Module delivers advanced customization for Smart Touch-equipped HySecurity operators, allowing installers to configure up to eight extra relay outputs for site-specific functions. This makes it an essential upgrade for large-scale or specialized access control environments.
