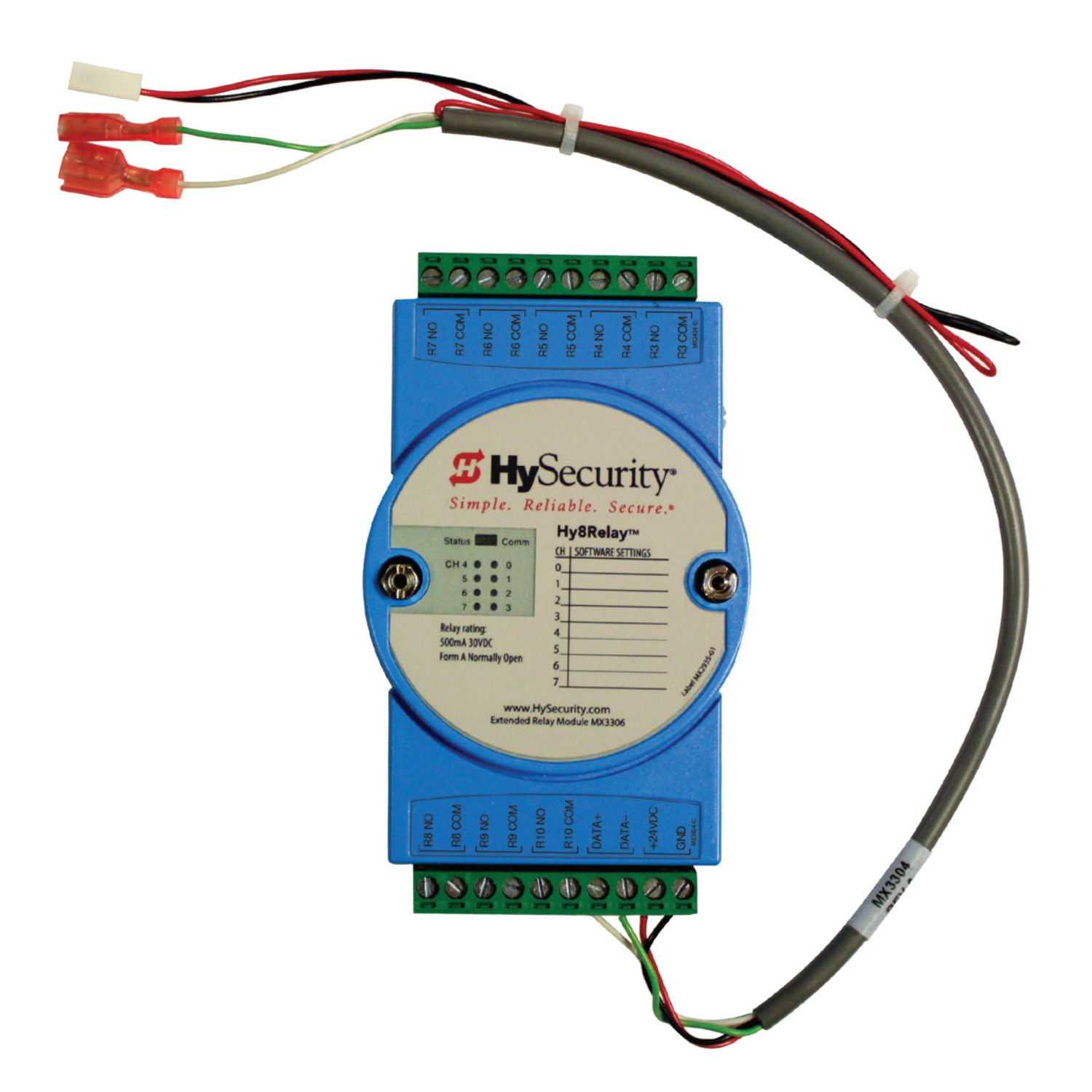

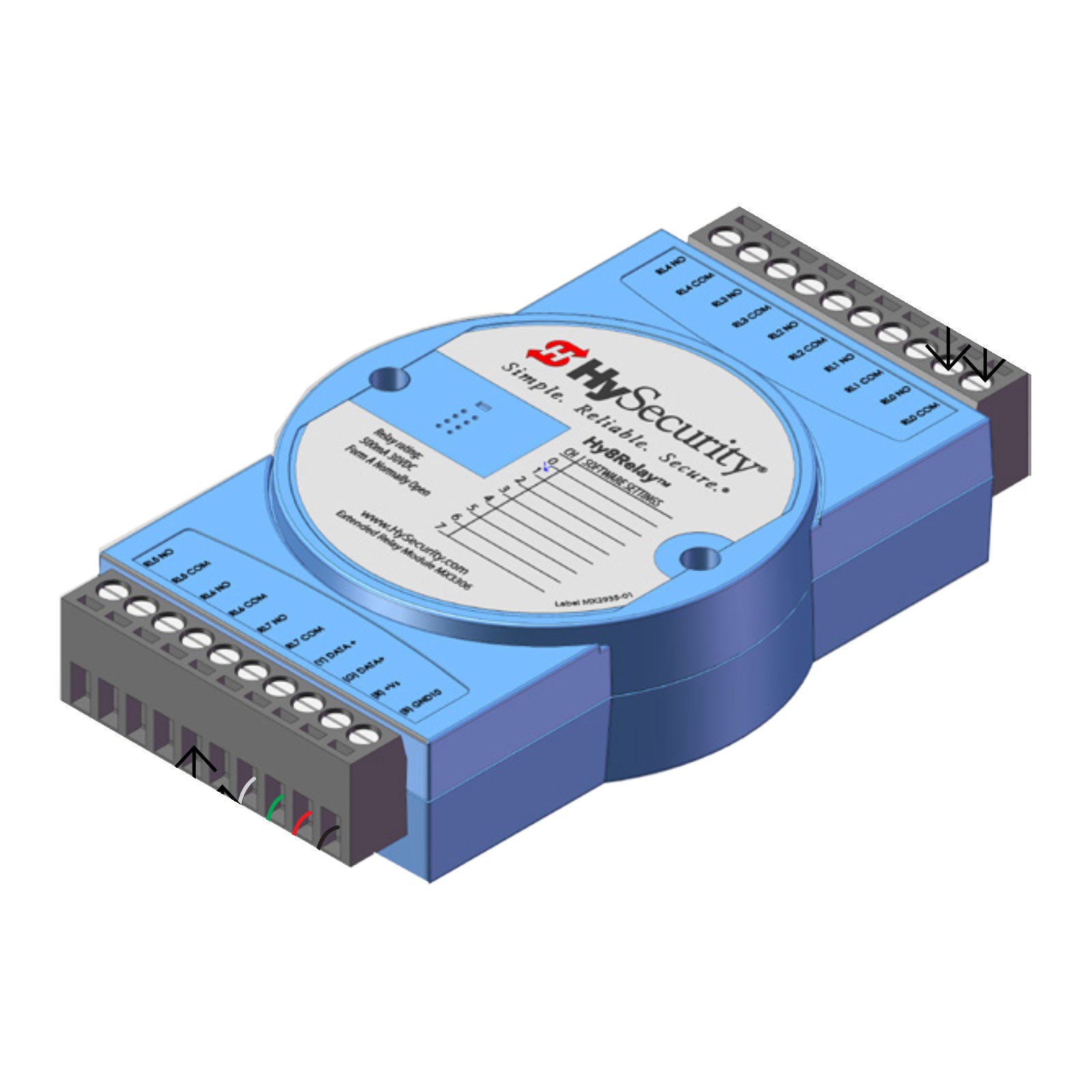

HySecurity MX3307-01 Relay Module (Hy8Relay)

Expand Your Gate System's Capabilities with Advanced Relay Control

The HySecurity MX3307-01 Relay Expansion Board is a professional-grade add-on module designed for use with Smart Touch® gate operators. This relay board provides eight programmable output relays, enabling advanced logic control for a wide range of gate automation tasks, from warning lights and buzzers to status signals and custom integrations.

Ideal for applications requiring custom sequencing or third-party system interfacing, the MX3307-01 allows you to extend your gate operator’s functionality while maintaining complete compatibility with HySecurity’s robust Smart Touch control system.

Key Features

• Eight Independent Relays – Supports complex output logic for enhanced control.
• Designed for Smart Touch Controllers – Seamless integration with HySecurity systems.
• Customizable Logic Sequences – Configure actions based on gate status or input triggers.
• Multiple Relay Functions – Use for alarms, lights, auxiliary systems, and more.
• Terminal Block Connections – Easy wiring with labeled terminals.

Technical Specifications

• Model: MX3307-01
• Number of Relays: 8
• Relay Type: Form C (SPDT), dry contact
• Compatibility: HySecurity Smart Touch controllers
• Mounting: Control box installation (pre-drilled mounting slots)
• Power Requirement: Supplied by Smart Touch board
• Enclosure: Not included (board only)
• Application: SlideDriver, StrongArm, SwingRiser, and other Smart Touch-based operators

Conclusion

The HySecurity MX3307-01 Relay Expansion Board is the ideal solution for installations that require expanded output capabilities. Whether you're adding visual indicators, interlocks, or third-party integrations, this board delivers unmatched flexibility and reliability within HySecurity’s ecosystem. Be sure to consult your system manual for configuration and installation guidelines.
