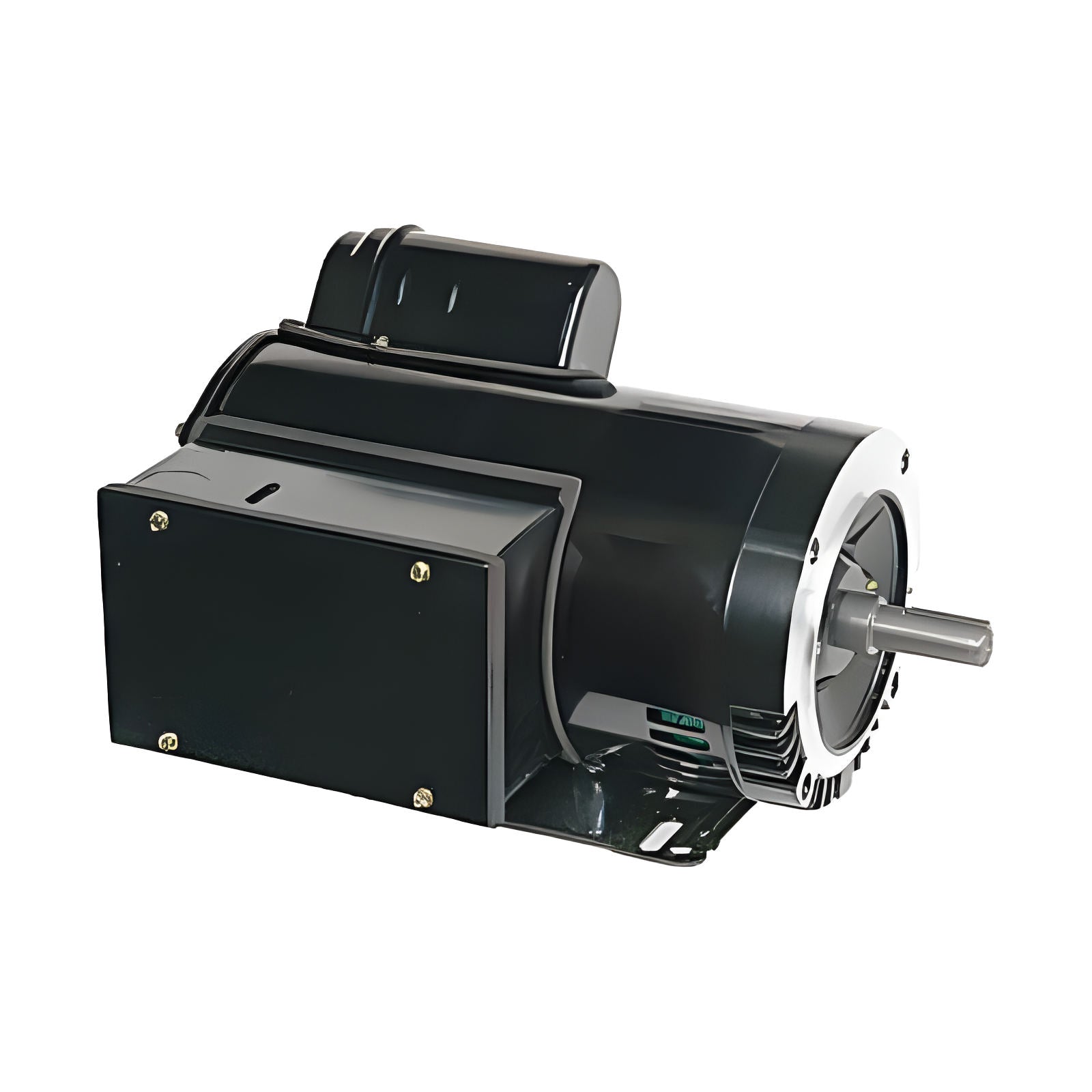

HySecurity MX001725 Replacement Motor 5 Hp (230 VAC)

5 HP Single-Phase Motor for SlideDriver 200 & HydraLift Systems

The HySecurity MX001725 is a 5 HP, single-phase electric motor designed for use with select SlideDriver and HydraLift gate operators, including the SlideDriver 200 (444XS). Operating at 3450 RPM and compatible with 230VAC, 60Hz, this OEM motor ensures long-term reliability in high-cycle, access-controlled environments. The kit includes Loctite® threadlocker and anti-seize packets to properly secure the motor coupling during reassembly.

Engineered to match HySecurity’s exact performance standards, this motor delivers consistent torque and continuous-duty operation in perimeter security applications.

Key Features

• Compatible with SlideDriver and HydraLift gate systems
• 5 HP, 1-phase electric motor for 230VAC, 60Hz operation
• 3450 RPM for high-performance hydraulic drive
• Includes Loctite® and anti-seize for secure coupling reassembly
• Designed for SlideDriver 200 (444XS) and other select models
• Genuine HySecurity® replacement part
• Refer to parts diagram or manual to confirm compatibility

Technical Specifications

• Model: MX001725
• Motor Type: 1-phase electric motor
• Horsepower: 5 HP
• Voltage: 230 VAC, 60Hz
• Speed: 3450 RPM
• Includes: Loctite® threadlocker and anti-seize packets
• Application: SlideDriver 200 (444XS), HydraLift systems
• Brand: HySecurity®

Conclusion

The HySecurity MX001725 replacement motor offers OEM-grade reliability for SlideDriver and HydraLift operators requiring single-phase, high-output power. Built to support heavy-duty gate systems, it delivers the performance and durability demanded in security-critical installations.
