FAAC 412 Single Swing Gate Operator Kit 115 VAC

Single-Leaf Residential Swing Gate Automation with Left or Right Handing

The FAAC 412 Single Swing Gate Operator Kit is a 115 VAC electromechanical gate automation system for light residential, single-family swing gates. Designed for a single gate leaf, the 412 uses an electric motor and internal worm-screw drive to provide controlled gate movement while mechanically locking the gate in both the open and closed positions.

The operator is rated for gate leaves from 6 to 14 feet wide and up to 500 pounds, with up to 719 lbf of thrust and an approximate 16-second opening time to 90 degrees when properly installed. A built-in manual release allows the gate to be operated by hand during a power failure or operator malfunction.

The FAAC 412 is manufactured in two handed versions. The 412DX is used for a right-hinged gate, while the 412SX is used for a left-hinged gate. Selecting the correct orientation is essential because the motor housing and protective cover are side-specific.

Positive mechanical stops are required at both the fully open and fully closed positions. FAAC also recommends an electric or magnetic lock on gate leaves longer than 12 feet. Gate construction, mounting geometry, wind load, temperature, and overall gate condition can affect actual operating performance.

Key Features

• Complete 115 VAC single swing gate operator kit for residential vehicular gates
• Available in right-hinged 412DX and left-hinged 412SX configurations
• Handles gate leaves from 6 ft to 14 ft wide and up to 500 lb
• Electromechanical motor with internal worm-screw drive
• Mechanical locking in both the open and closed positions
• Built-in manual release for operation during a power outage or malfunction
• Approximately 16-second opening time to 90 degrees
• Up to 719 lbf of thrust
• Rated for up to 18 cycles per hour under specified operating conditions
• 455D control panel provides programmable gate control and safety functions
• Positive mechanical open and close gate stops are required
• Electric or magnetic lock recommended for gate leaves longer than 12 ft
• Designed for light residential, single-family applications

Technical Specifications

• Manufacturer: FAAC
• Series: 412
• Operator Type: Electromechanical linear swing gate operator
• Gate Configuration: Single swing gate leaf
• Application: Light residential, single-family vehicular gates
• Input Voltage: 115 VAC (+10% / -6%)
• Power: 280 W
• Current: 3 A
• Motor: Asynchronous single phase
• Thrust Force: 719 lbf (320 daN)
• Rod Stroke: 11.4 in (290 mm)
• 90° Opening Time: Approximately 16 seconds
• Minimum Gate Leaf Width: 6 ft
• Maximum Gate Leaf Width: 14 ft
• Maximum Gate Leaf Weight: 500 lb
• Use Frequency: Up to 18 cycles per hour
• Operating Temperature: 4°F to 131°F (-20°C to +55°C)
• Thermal Protection: 284°F (140°C)
• Mechanical Locking: Open and closed positions
• Manual Release: Built in
• Required Gate Stops: Positive mechanical stops at fully open and fully closed positions

Variants

• 412 DX: For right-hinged gates (Part Number: 412DX1.5)
• 412 SX: For left-hinged gates (Part Number: 412SX1.5)

How to Determine Left-Hinged vs. Right-Hinged

Stand on the operator side of the gate, facing the gate, with the FAAC logo on the motor housing facing you. For a typical inward-opening installation, this means standing inside the property with the gate swinging toward you.

• Hinges on your right: Select the 412 DX Right-Hinged kit.
• Hinges on your left: Select the 412 SX Left-Hinged kit.

The DX or SX designation refers to the location of the gate hinge when viewed from the operator side, not simply whether the gate swings inward or outward.

Choosing the correct version is important. FAAC uses different motor housings for the left- and right-hand operators, and installing the wrong version prevents the protective operator cover from fitting correctly.

What Comes with This Kit

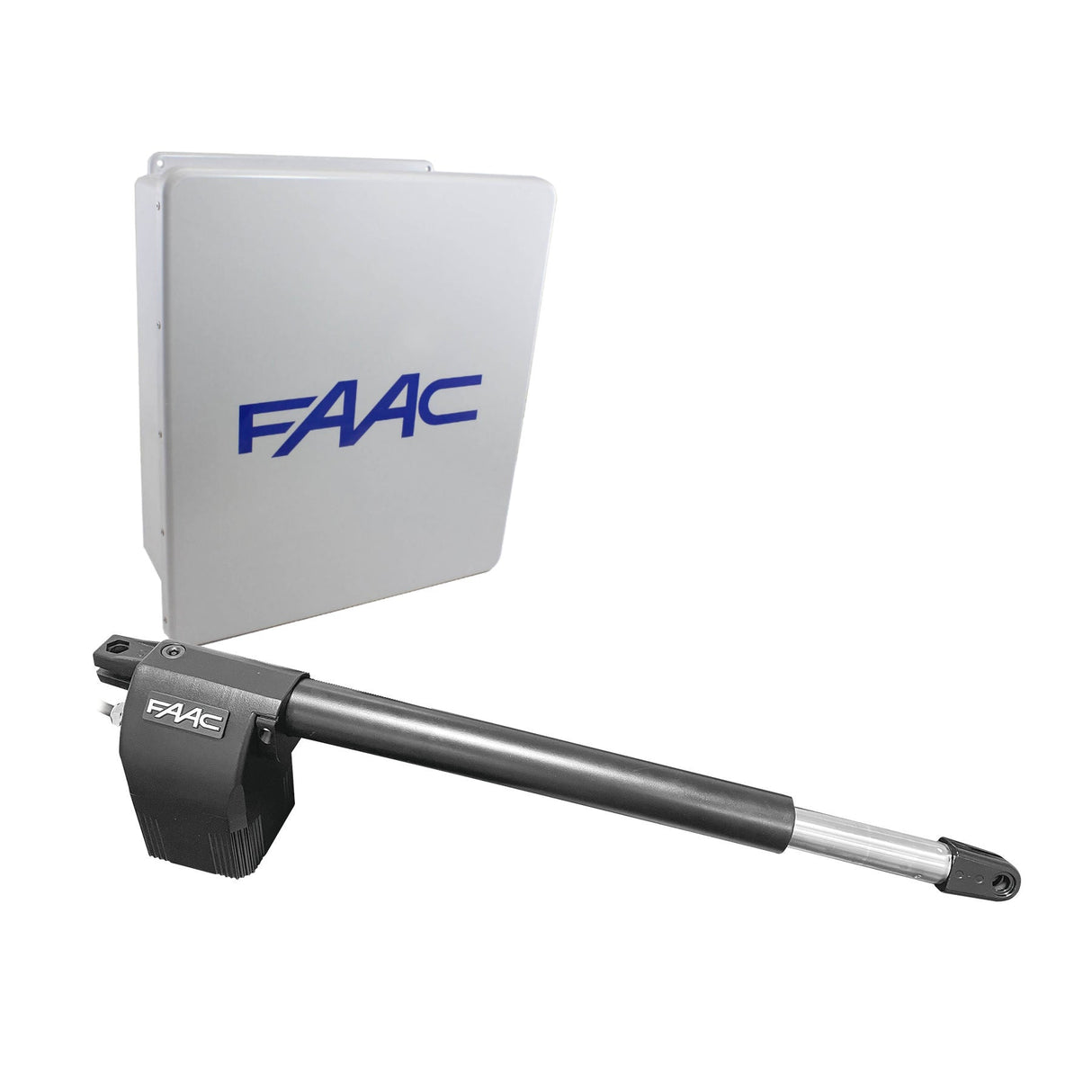

• 1 FAAC 412 Operator without sleeve, selected as right-hinged or left-hinged
• 455D Control Panel, 115V
• Fiberglass Control Enclosure
• Mounting Hardware and Adapter

Conclusion

The FAAC 412 Single Swing Gate Operator Kit provides the major components needed to automate a compatible residential single-leaf swing gate while allowing the operator orientation to be matched to the actual hinge location. Before ordering, confirm whether the gate requires the 412DX or 412SX version and verify that the gate size, weight, construction, and mounting geometry are within FAAC specifications.
