FAAC  |  SKU: 104572.5

FAAC 390 Electromechanical Single Swing Gate Operator

$1,89999
Shipping calculated at checkout.

Description

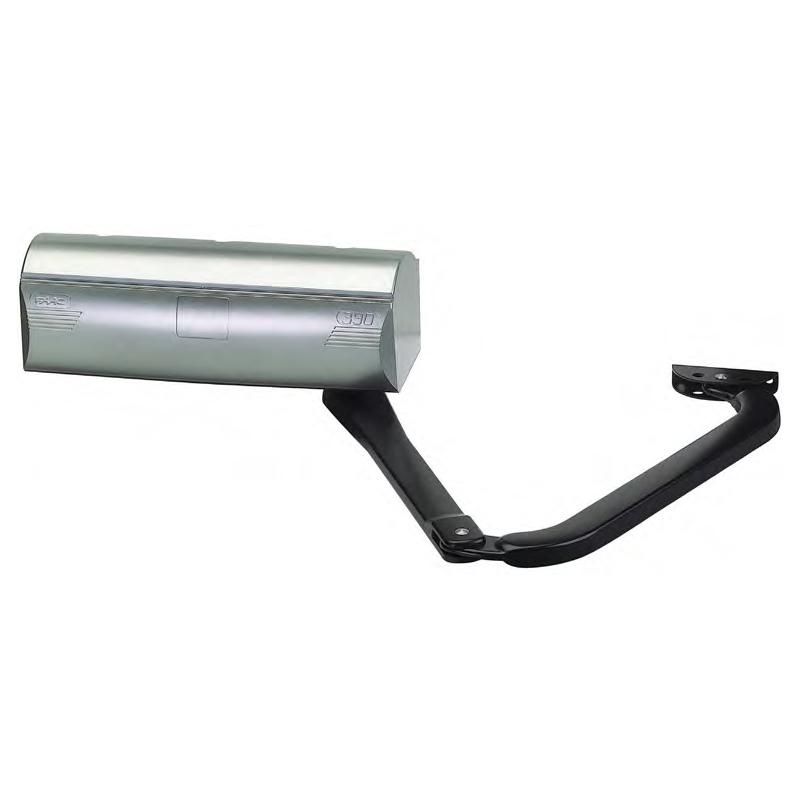

FAAC 390 Single Swing Gate Operators W/ Articulated Arms

The FAAC 390 Electromechanical Single Swing Gate Operator was designed specifically for gates mounted on large columns. This operator handles gates up to 14 feet long and 600 pounds, offering robust performance and easy installation without modifications. Its non-reversing mechanism eliminates the need for external locks, and the E024U control board ensures maximum safety with a reverse-on-contact feature. The built-in battery backup guarantees uninterrupted operation during power outages, and its compliance with UL325 standards ensures superior safety and reliability.

    Features

    • Non reversing operator, does not require external locks
    • Easy to install, no modifications to the gates are necessary
    • Ideal for gates mounted on large columns
    • Adjustable limit switches (optional)
    • Maximum safety thanks to the E024U control board reverse on contact feature
    • Built in battery backup to ensure operation in case of power outage
    • Compliant with UL325 for Class I,II,III and IV applications

      Specifications

      • Max gate 14ft / 600lbs
      • Input Voltage 24 Vdc
      • Power 40 W
      • Motor rotation speed 960 r.p.m.
      • Reduction ratio 1:700
      • Angle speed 8°/s
      • Leaf max. width 14 ft (4.3 m)
      • Leaf max. weight 600 lb (272 Kg)
      • Max. torque 184 lbf.ft (250 Nm)
      • Operating ambient temperature -4°F - 131°F (-20°C - +55°C)
      • Use frequency continuous
      • Operator Weight 25 lb (11.5 kg)
      • Dimensions (L x D x H) 16 x 5 x 5 in (410x130x130 mm)
      • Protection class IP 44

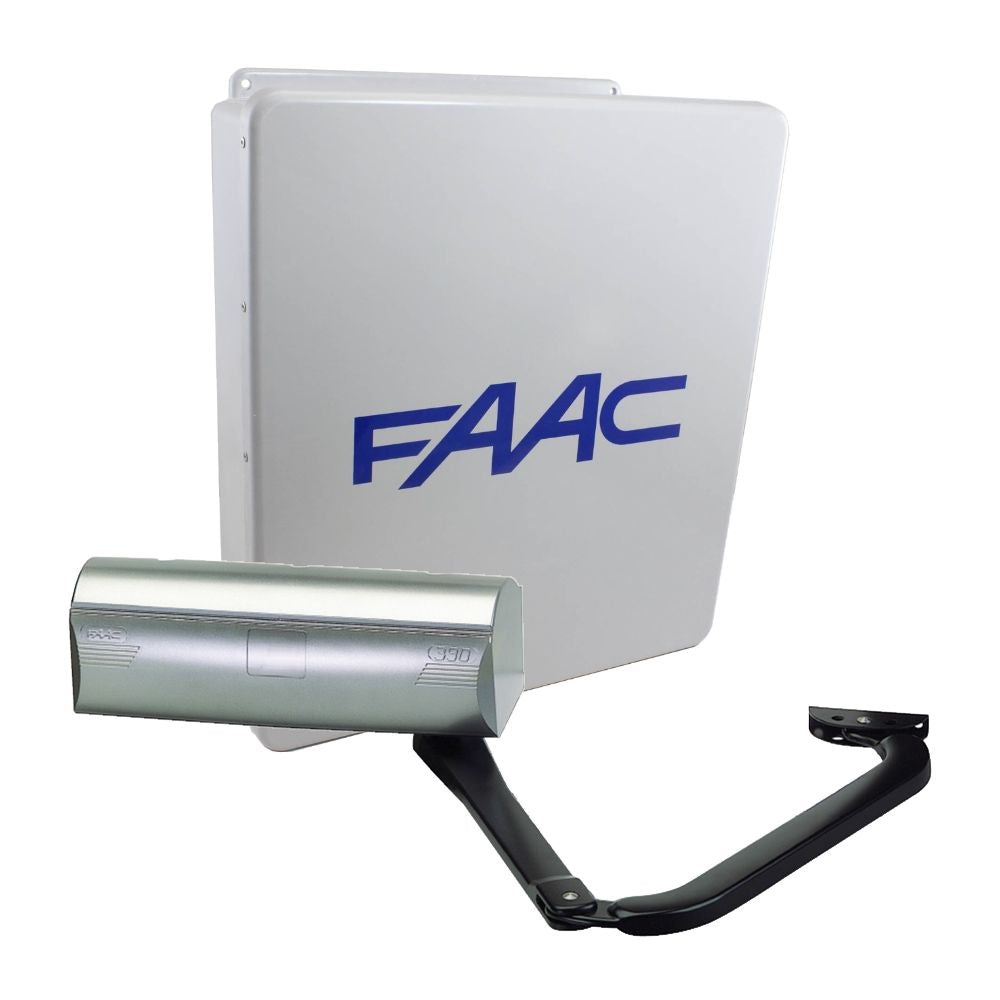

      The 390 single package contains:

      • 1 Operators 390
      • 1 E024U Enclosure Kit
      • 2 Batteries 12V 8 Ah
      • 1 Receiver 433 RC Plug In
      • 2 4-channel transmitter XT4 433 RC
      • 1 Pair of XP 30 photobeam photocells
