FAAC 390 Electromechanical Dual Swing Gate Operator

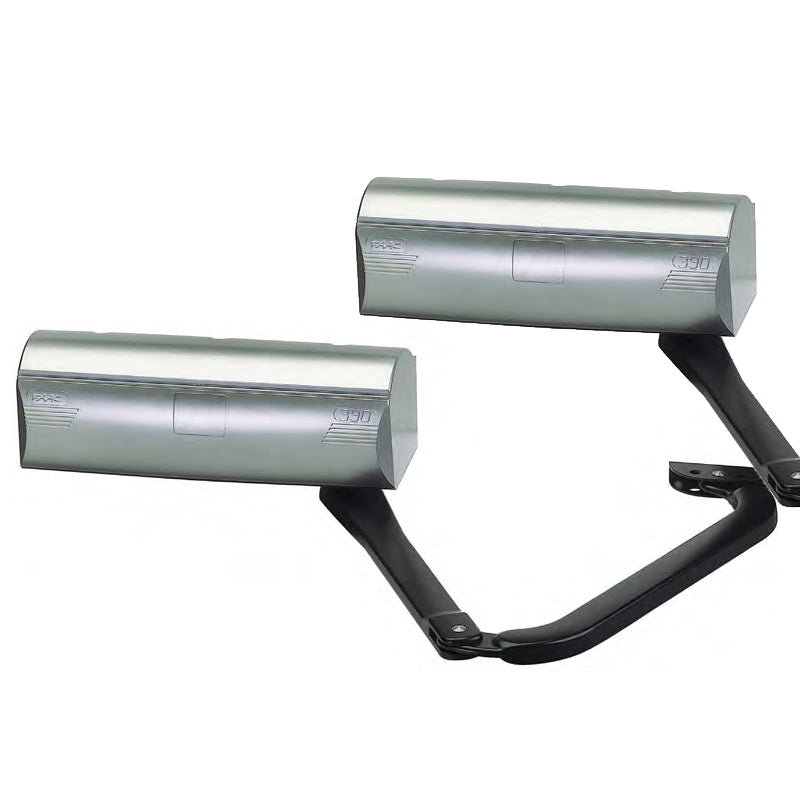

FAAC 390 Electromechanical Dual Swing Gate Operators W/ Articulated Arms

Max gate 14ft / 600lbs

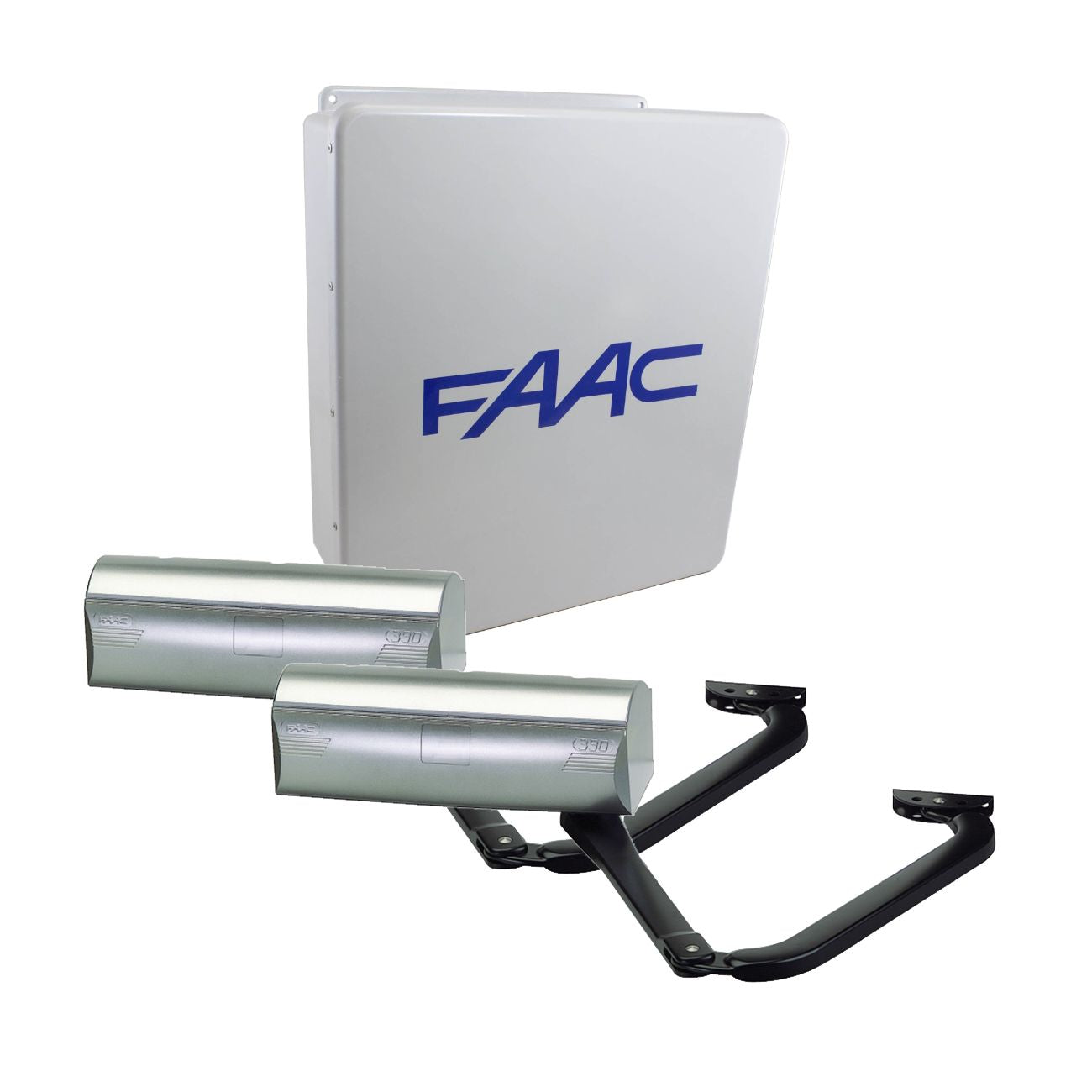

The 390 dual package contains:

• 2 Operators 390
• 4 Limit Switch
• 1 E024U Enclosure Kit
• 2 Batteries 12V 8 Ah
• 1 Receiver 433 RC Plug In
• 2 4-channel transmitter XT4 433 RC
• 1 Pair of XP 30 photobeam photocells
• 2 XP 30 adapters for conduit connection

DESCRIPTION

• Non reversing operator, does not require external locks
• Easy to install, no modifications to the gates are necessary
• Ideal for gates mounted on large columns
• Adjustable limit switches (optional)
• Maximum safety thanks to the E024U control board reverse on contact feature
• Built in battery backup to ensure operation in case of power outage
• Compliant with UL325 for Class I,II,III and IV applications

TECHNICAL SPECIFICATIONS

• Input Voltage 24 Vdc
• Power 40 W
• Motor rotation speed 960 r.p.m.
• Reduction ratio 1:700
• Angle speed 8°/s
• Leaf max. width 14 ft (4.3 m)
• Leaf max. weight 600 lb (272 Kg)
• Max. torque 184 lbf.ft (250 Nm)
• Operating ambient temperature -4°F - 131°F (-20°C - +55°C)
• Use frequency continuous
• Operator Weight 25 lb (11.5 kg)
• Dimensions (L x D x H) 16 x 5 x 5 in (410x130x130 mm)
• Protection class IP 44
