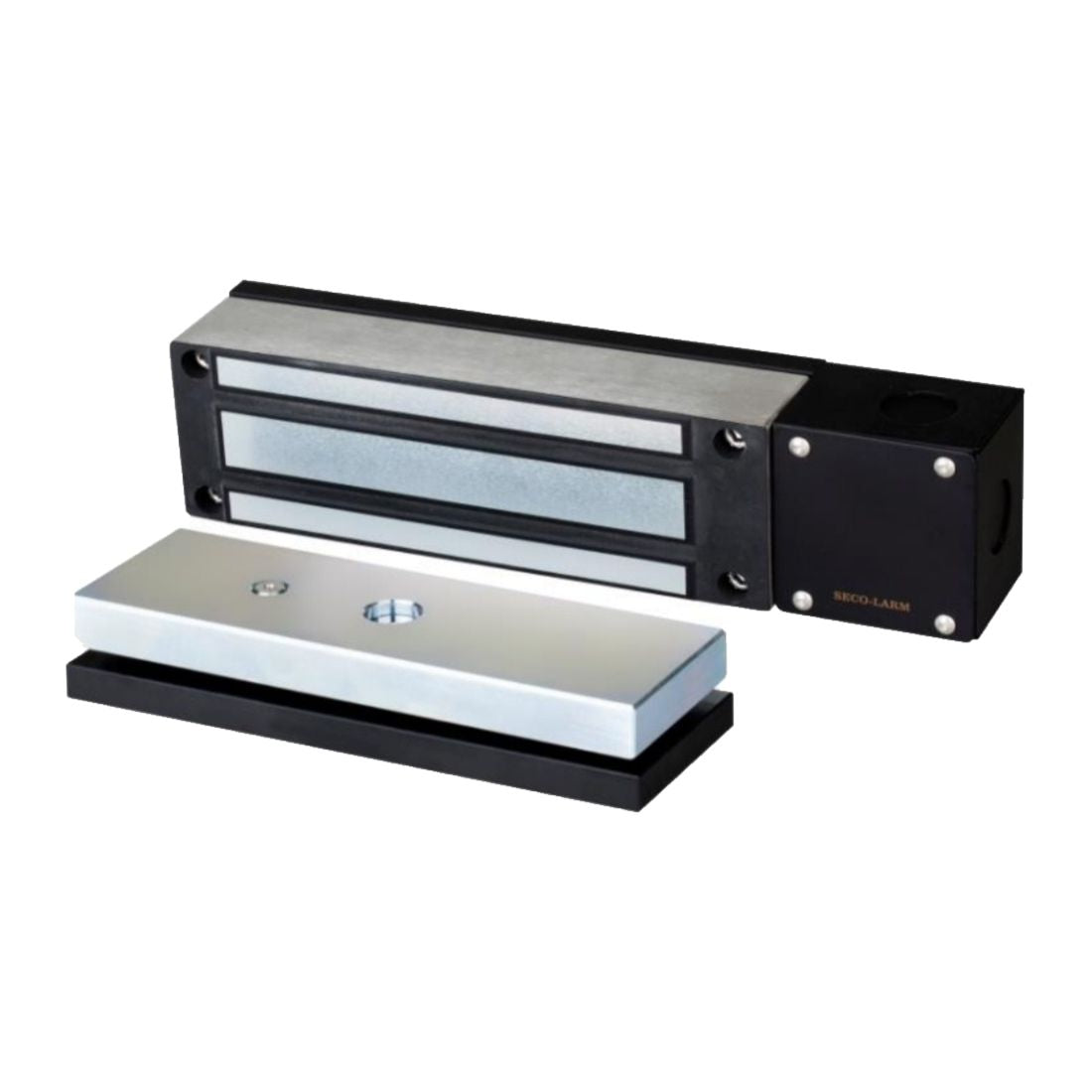

Enforcer E-942FC-1K3SQ Weldable Gate Maglock (1,200 lbs)

Heavy-Duty Weldable Gate Maglock for Reliable Security

The Seco-Larm E-942FC-1K3SQ Weldable Gate Maglock is a heavy-duty electromagnetic lock designed for outdoor sliding and swinging electric gates. With a holding force of 1,200 lbs (544 kg) and a weldable bracket, this maglock ensures superior security and durability. Its maintenance-free, factory-sealed design and weather-resistant features make it ideal for harsh outdoor environments, while fail-safe operation ensures safety by releasing the lock when power is removed.

Key Features

• High Holding Force: Provides 1,200 lbs (544 kg) of holding power for secure gate locking.
• Weldable or Bolt-On Bracket: Offers flexible mounting options for sliding or swinging gates.
• Weather and Vandal Resistant: Stainless-steel finish ensures protection against corrosion and tampering.
• Fail-Safe Operation: Automatically releases the gate when power is disconnected.
• Versatile Mounting: Can be mounted vertically or horizontally to accommodate various gate designs.
• Corrosion-Resistant Design: Zinc-plated brackets enhance durability in outdoor conditions.
• Certified Performance: cUL, UL, CE, and RoHS certifications ensure reliable and safe operation.

Technical Specifications

• Holding Force: 1,200 lbs (544 kg)
• Operating Voltage: 12/24 VDC
• Current Draw: 500mA @ 12V, 250mA @ 24V
• Bracket Material: Zinc-plated for corrosion resistance
• Weight: 16.1 lbs (7.3 kg) total; 11 lbs (5 kg) for maglock and armature, 5 lbs (2.3 kg) for bracket
• Certifications: cUL, UL, CE, RoHS (magnetic lock only)
• Applications: Suitable for outdoor swinging and sliding gates

Applications

The E-942FC-1K3SQ is designed for secure access control on outdoor gates in residential, commercial, and industrial environments. Its rugged construction and high holding force make it an excellent choice for securing sliding or swinging gates in high-traffic areas.

Conclusion

The Seco-Larm E-942FC-1K3SQ Weldable Gate Maglock delivers unparalleled security and reliability for electric gates. Its 1,200 lbs holding force, weather-resistant design, and flexible mounting options make it a durable solution for outdoor environments. Whether for residential, commercial, or industrial use, this maglock provides peace of mind with its robust construction and fail-safe operation.
