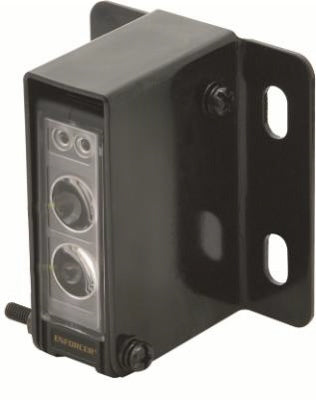

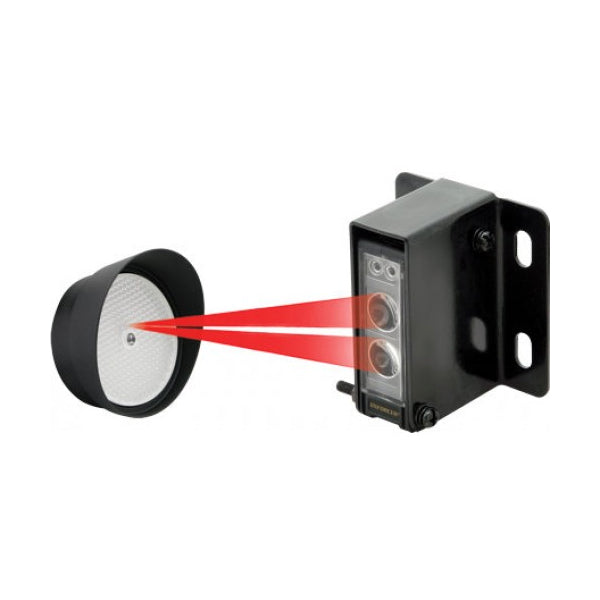

Enforcer E-936-S45RRGQ Monitored Photoeye With Reflector

Reliable and UL 325-Compliant Safety Sensor for Access Control Systems

The SECO-LARM E-936-S45RRGQ is a reliable and versatile reflective photoelectric beam sensor designed to enhance safety and automation in a wide range of applications. With its weatherproof construction and extended sensing range of up to 45 feet, this sensor is ideal for both indoor and outdoor use. Built to meet UL 325 standards, it features a monitored safety configuration with a built-in 10kΩ resistor for compatibility with monitored gate operators, making it a dependable choice for modern access control systems.

Key Features

• 45-Foot Sensing Range: Detects objects at distances of up to 45 feet, suitable for large areas.
• Weatherproof IP66 Enclosure: Built to withstand harsh environmental conditions for indoor and outdoor use.
• Monitored Output Design: Compliant with UL 325 standards, using a Normally Closed (N.C.) configuration with a built-in 10kΩ resistor.
• Pre-Wired Design: Comes with a 6-foot cord for quick and easy installation.
• Adjustable Sensitivity: Allows customization of detection settings for specific requirements.
• LED Indicators: Includes yellow LED for alignment and red LED for trigger notifications.
• Complete Mounting Hardware: Includes brackets for both the sensor and the reflector for hassle-free setup.
• Infrared LED Technology: Ensures accurate detection and reliability.

Technical Specifications

• Model: E-936-S45RRGQ
• Sensing Range: 0.5 to 45 feet (0.2 to 14 meters)
• Operating Voltage: 12-30V DC/AC 60Hz, 100mA
• Current Draw: 70mA at 12VDC
• Response Time: 10 milliseconds
• Trigger Output: SPDT relay output (NO/NC/COM)
• Switching Capacity: 2A at 30VAC/VDC
• Enclosure Rating: IP66 weatherproof
• Operating Temperature: -4°F to 131°F (-20°C to 55°C)
• Monitoring Method: Normally Closed (N.C.) configuration with 10kΩ resistor
• Mounting Brackets: Included

Conclusion

The SECO-LARM E-936-S45RRGQ Reflective Photoelectric Beam Sensor is a dependable solution for enhancing safety and efficiency across various settings. Its UL 325-compliant monitored output, robust design, adjustable sensitivity, and reliable performance make it an excellent choice for a range of applications, from gates and garage doors to industrial automation. Whether for security or convenience, this sensor delivers consistent results you can count on.
