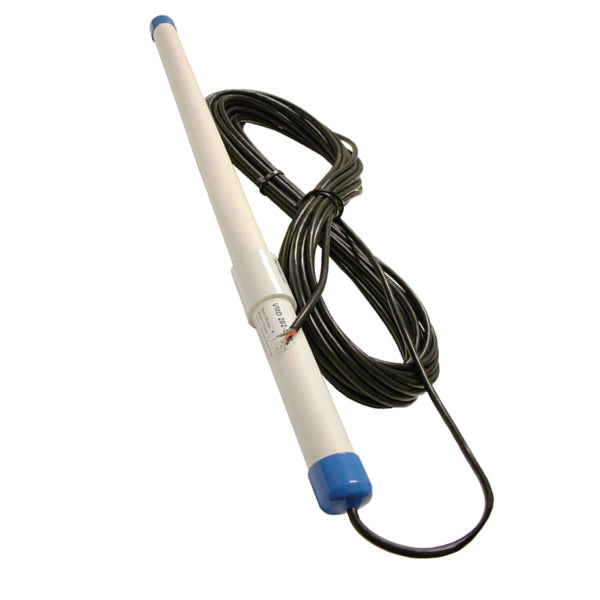

EMX VMD202 Vehicle Motion Sensor (100ft Lead)

Vehicle Detection for Gate and Security Automation

The EMX VMD202-100 Vehicle Motion Detector with a 100-foot lead wire offers reliable and accurate vehicle detection for automated gates, driveway exits, and security systems. Using advanced magnetic sensing technology, the VMD202-100 detects moving ferrous metal objects, like cars and trucks, within a 12-foot range at speeds as low as 5 mph. With its extended 100-foot cable and rugged, direct burial-ready design, this sensor is ideal for properties needing flexible, long-distance installations.

Key Features

• Extended 100-Foot Lead: Designed for installations where a greater distance is needed between the probe and control unit, making it suitable for large properties or commercial settings.
• Precise Vehicle Detection: Accurately senses moving vehicles within a 12-foot range using magnetic field technology, minimizing false triggers.
• Versatile Power Compatibility: Operates on 12-39 VDC or 12-27 VAC, perfect for standard or solar-powered systems.
• Energy Efficient: With a low standby current of 70 µA, it’s optimized for sustainable, energy-efficient applications.
• Built to Last: Watertight probe with direct burial capability, constructed to withstand temperatures from -30°C to 70°C (-22°F to 158°F).
• Optional Sensitivity Remote: Compatible with the VMD202-R remote (sold separately) for easy sensitivity adjustments across 10 levels, stored in non-volatile memory for consistent performance.

Technical Specifications

• Detection Range: Up to 12 feet at a minimum speed of 5 mph
• Power Requirements: 12-39 VDC or 12-27 VAC
• Current Consumption: 70 µA standby; 25 mA activated
• Relay Output: Form C (SPDT) 1A@24 VDC; 1A@120 VAC
• Operating Temperature: -30°C to 70°C (-22°F to 158°F)
• Probe Dimensions: 1-inch diameter, 24-inch length
• Cable Length: 100 feet, 5-wire direct burial PVC

Why Choose the EMX VMD202-100 Vehicle Motion Detector?

For installations requiring extended reach, the EMX VMD202-100 provides unmatched performance and durability. With its 100-foot lead, this motion detector is perfect for securing driveways, gates, and exits on larger properties, allowing for flexible installation options. Its advanced design detects moving vehicles with precision while conserving energy, making it an excellent choice for both residential and commercial applications.
